Mercury 15XD User Manual

JET DRIVE
Page 6B-4 90-826883R2 JUNE 1998

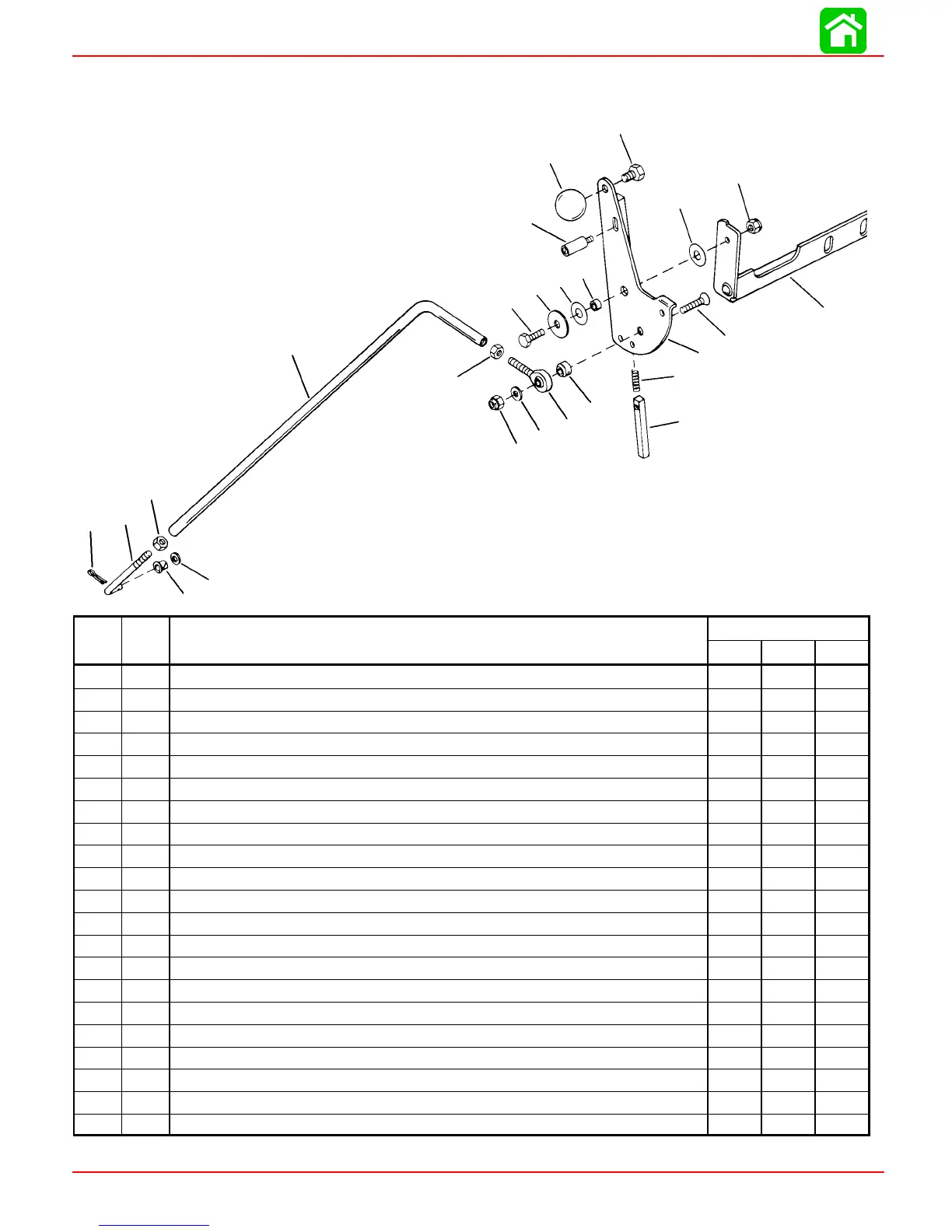

Jet Linkage (S/N 0G157845 & Below)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
7
18
19
20
21
12
7
5
4
R
E
F
.
TORQUE
R
E
F
.
NO.
QTY. DESCRIPTION lb. in. lb. ft. N·m
1 1 COTTER PIN
2 1 ROD END
3 1 BUSHING
4 2 WASHER
5 2 NUT (1/4-28)
6 1 SHIFT ROD
7 2 NUT
8 1 ROD END
9 1 SPACER
10 1 SCREW (1/4-20 x 3/4)
11 1 WASHER
12 2 WASHER
13 1 BUSHING
14 1 LEVER ASSEMBLY
15 1 SCREW
16 1 KNOB
17 1 SCREW (.312-18 x 1/2)
18 1 SPRING
19 1 SHAFT
20 1 SCREW (1/4-20 x 1-1/4)
21 1 LEVER MOUNT
