GEAR HOUSING
90-826883R2 JUNE 1998 Page 6A-15
NOTE:When usinga screwdriverto removecarrier seals,be carefulnot toscar carrierseal
surface. If carrier seal surface is damaged, replace carrier.
6. Secure bearing carrier in a vise. Using a screwdriver, pry out both seals from bearing
carrier.

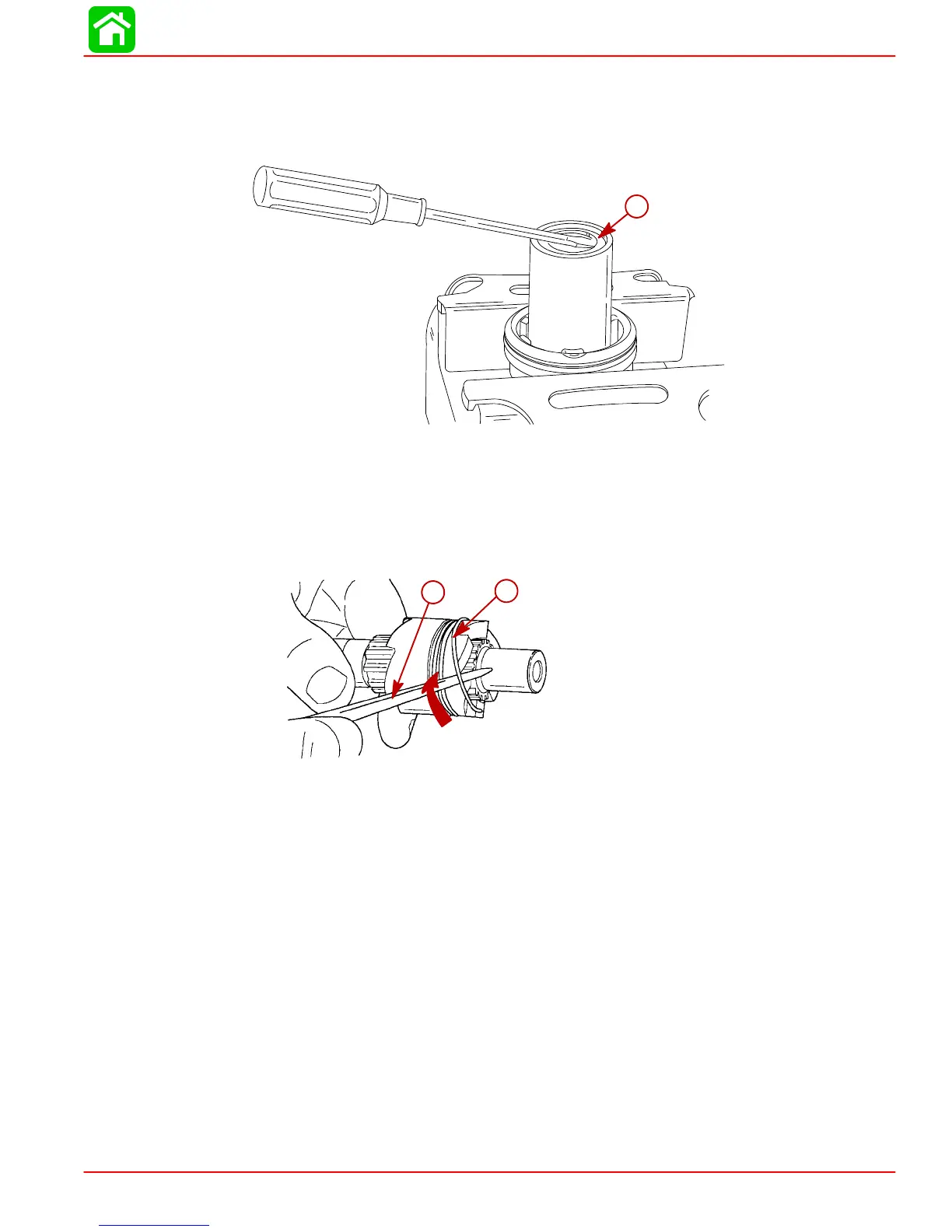

57136
a
a-Oil Seals
Propeller Shaft
1. Insert a thin blade screwdriver or awl under first coil (from front) of cross-pin retainer
spring.
2. Rotate propeller shaft to unwind spring from sliding clutch.
a
b
a-Awl
b-Cross Pin Retaining Ring
3. Insert flat end of cam follower into front end of propeller shaft.
4. Position cam follower against a solid surface.
