BATTERY CHARGING AND STARTING SYSTEMS
90-826883R2 JUNE 1998 Page 2B-19

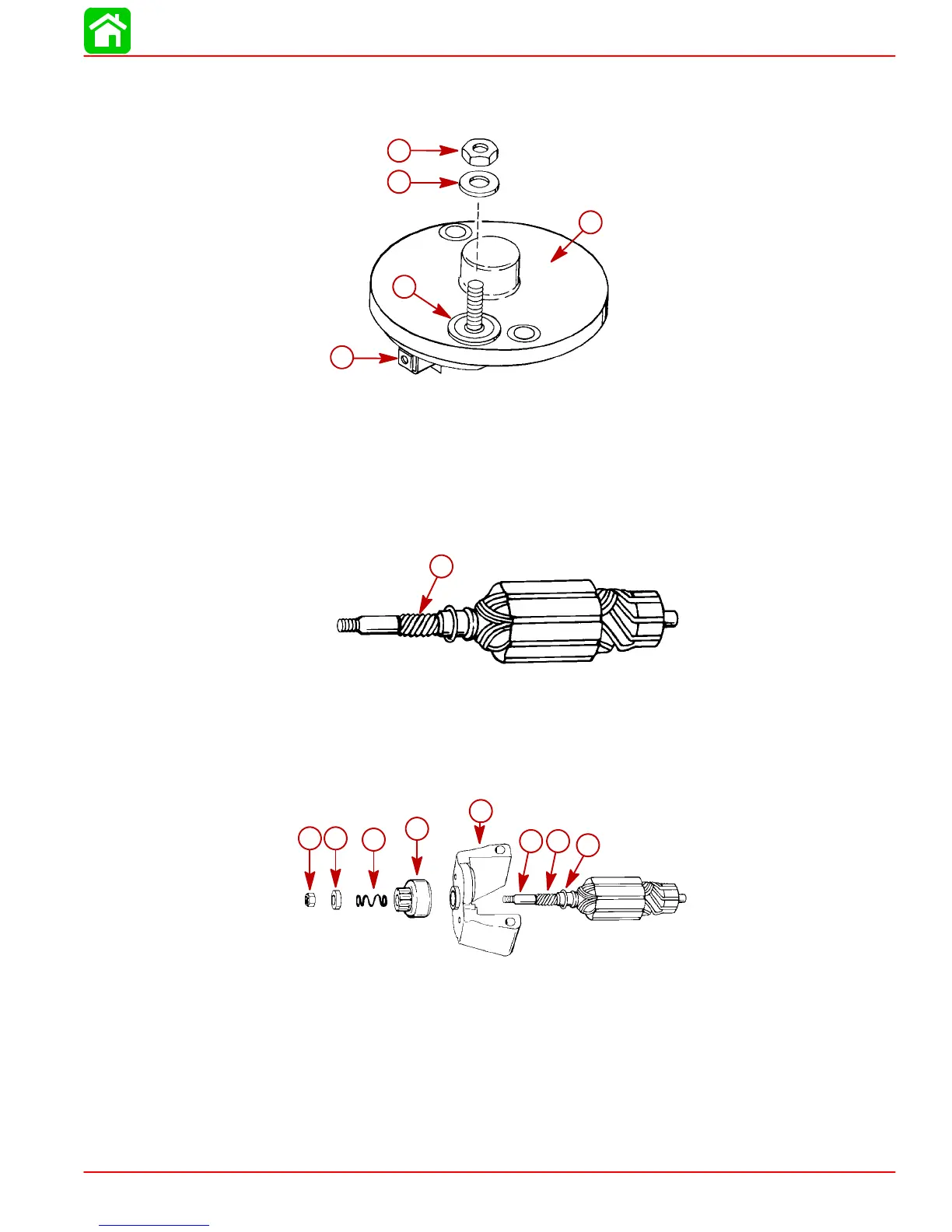

Starter Motor Reassembly
1. Reinstall brush assembly.
53075
d
e
b
c
a
a - Brush
b - End Cap
c - Fiber Washer
d - Metal Washer
e - Nut
2. ApplyadropofSAE10W oilto tohelix threadson armatureshaft. DONOT overlubri-
cate.
53080
a
a - Helix Threads
3. ApplyadropofSAE10Woiltobushingsindriveendcapandlowerendcap.DONOT
over lubricate
4. Reinstall components on armature shaft. Use a new locknut and tighten securely.
53228
a
b
c
d
e
f
g
h
a - Locknut
b - Spacer
c - Spring
d - Drive Assembly
e - Drive End Cap
f - Armature Shaft
g - Helix Threads
h - Washer
