BATTERY CHARGING AND STARTING SYSTEMS
Page 2B-20 90-826883R2 JUNE 1998

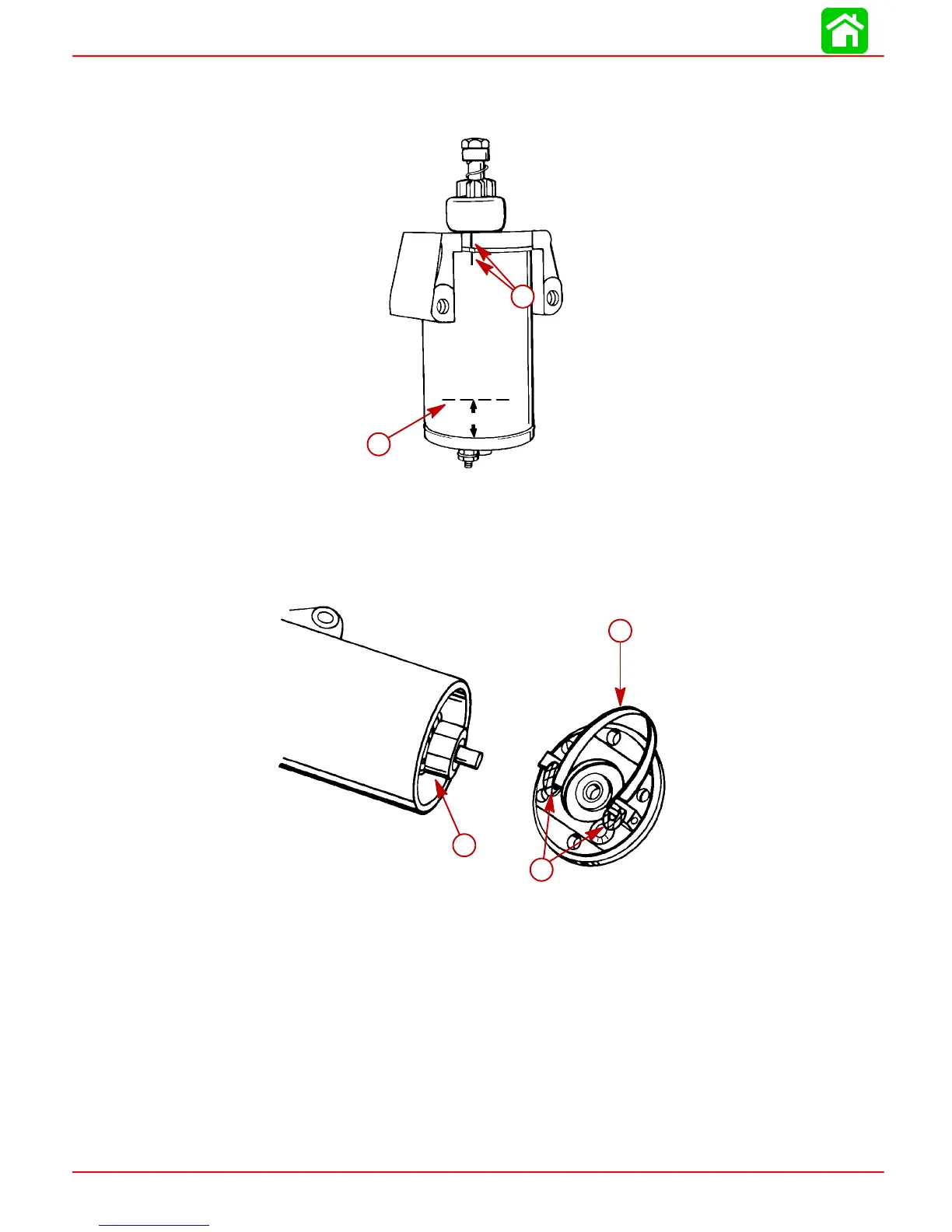

5. Position armature into starter frame so that commutator end of armature is at end of
starter frame where permanent magnets are recessed 1-5/16 in. (33.3mm). Align
marks as shown.
1-5/16 in.
53082
b
a
a - Alignment Marks
b - Bottom Edge of Permanent Magnets
6. Installsprings andbrushesinto brushholders.Spread brushes and holdinplacewith
a strip of spring steel.
7. Push in on drive end of shaft so that commutator will extend out of starter frame.
53213
b
c
a
a - Brushes
b - Spring Steel
c - Commutator
To Next Page
