GEAR HOUSING
90-826883R2 JUNE 1998 Page 6A-23

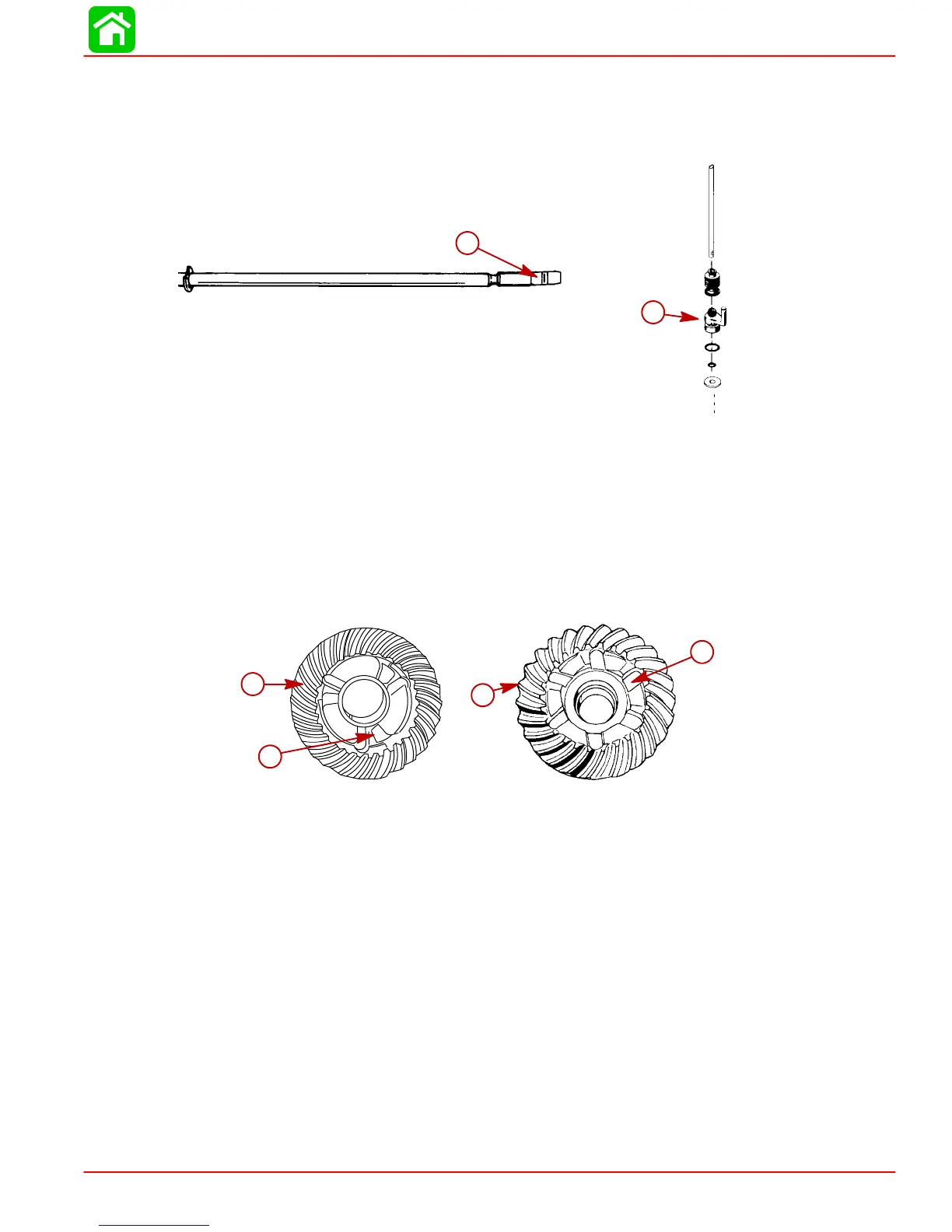

Shift Shaft
1. Inspect shift shaft retainer for cracks and replace if necessary.
2. Inspect shift cam face for wear. Replace if worn.
53034
a
b
a-Shift Cam
b-Shift Shaft Retainer
Reverse And Forward Gear
1. Inspect gear teeth for pitting, uneven wear, scoring, etc. Replace gear if any damage
is found.
2. Inspect gear clutch jaws. Replace gear if jaws are rounded or chipped.
b
a
52989
a
b
a-Gear Teeth
b-Clutch Teeth
