POWERHEAD
90-826883R2 JUNE 1998 Page 4-51
Powerhead Installation
1. Verifypowerheadbasesurfaceanddriveshafthousingmatingsurfacesarefreeofold
gasket material.
2. Install powerhead with new gasket onto driveshaft housing.
NOTE: It may be necessary to rotate propeller shaft slightly to align crankshaft splines
with driveshaft splines.
3. Secure powerhead to driveshaft with 6 bolts. Torque bolts to 20 lb. ft. (27.1 N·m).
57077
a
a

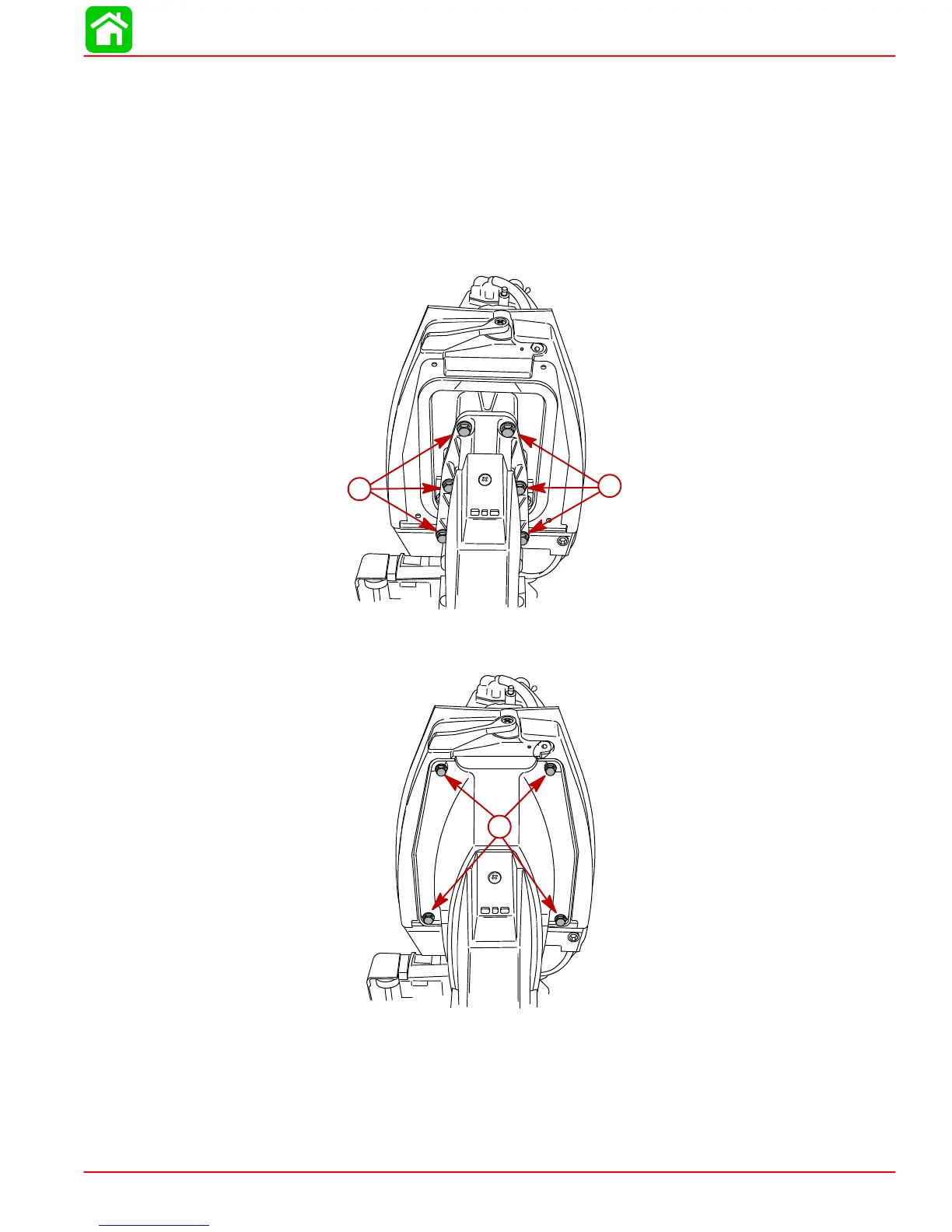

a - Bolts [Torque to 20 lb. ft. (27.1 N·m)]
4. Reinstall trim cover. Torque bolts to 85 lb. in. (9.6 N· N·m).
a
57076
a - Bolts -- Torque to 85. lb. in. (9.6 N·m)
