TILLER HANDLE
Page 7B-10 90-826883R2 JUNE 1998
11. Pull on cable ends to remove slack and secure tiller handle to anchor bracket with
plate and 2 bolts. Torque bolts to 80 lb. in. (9.0 N·m).
57037
b
a

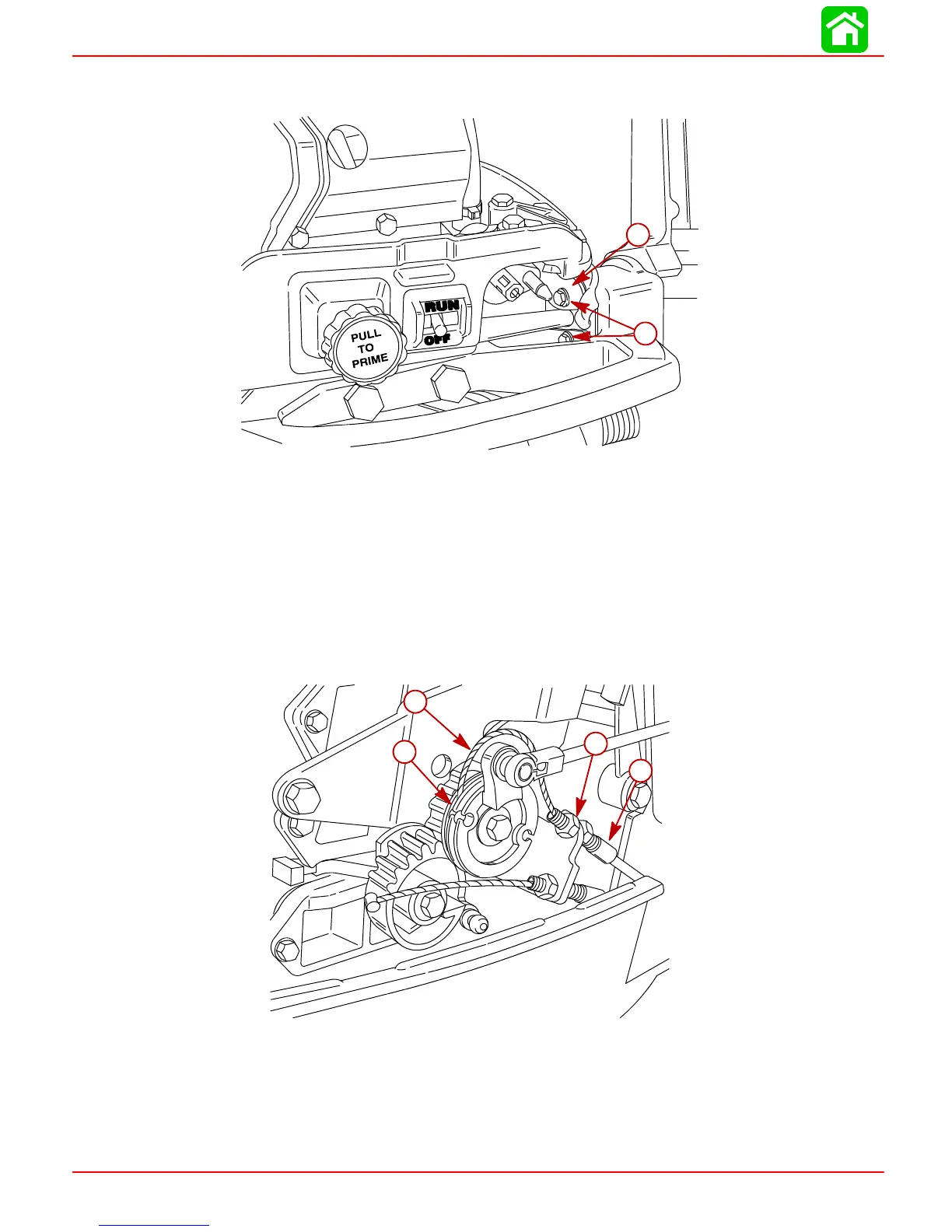

a - Plate
b - Bolts -- Torque to 80 lb. in. (9.0 N·m)
Control Cables
Installation
1. Rotate tiller handle twist grip to REVERSE gear position.
2. Route extended cable over top of primary gear pulley and secure cable into inner
groove of pulley. Place cable jacket into top notch of cable anchor bracket.
57048
b
a
c
d
a - Extended Cable
b - Inner Groove
c - Cable Jacket
d - Top Notch
