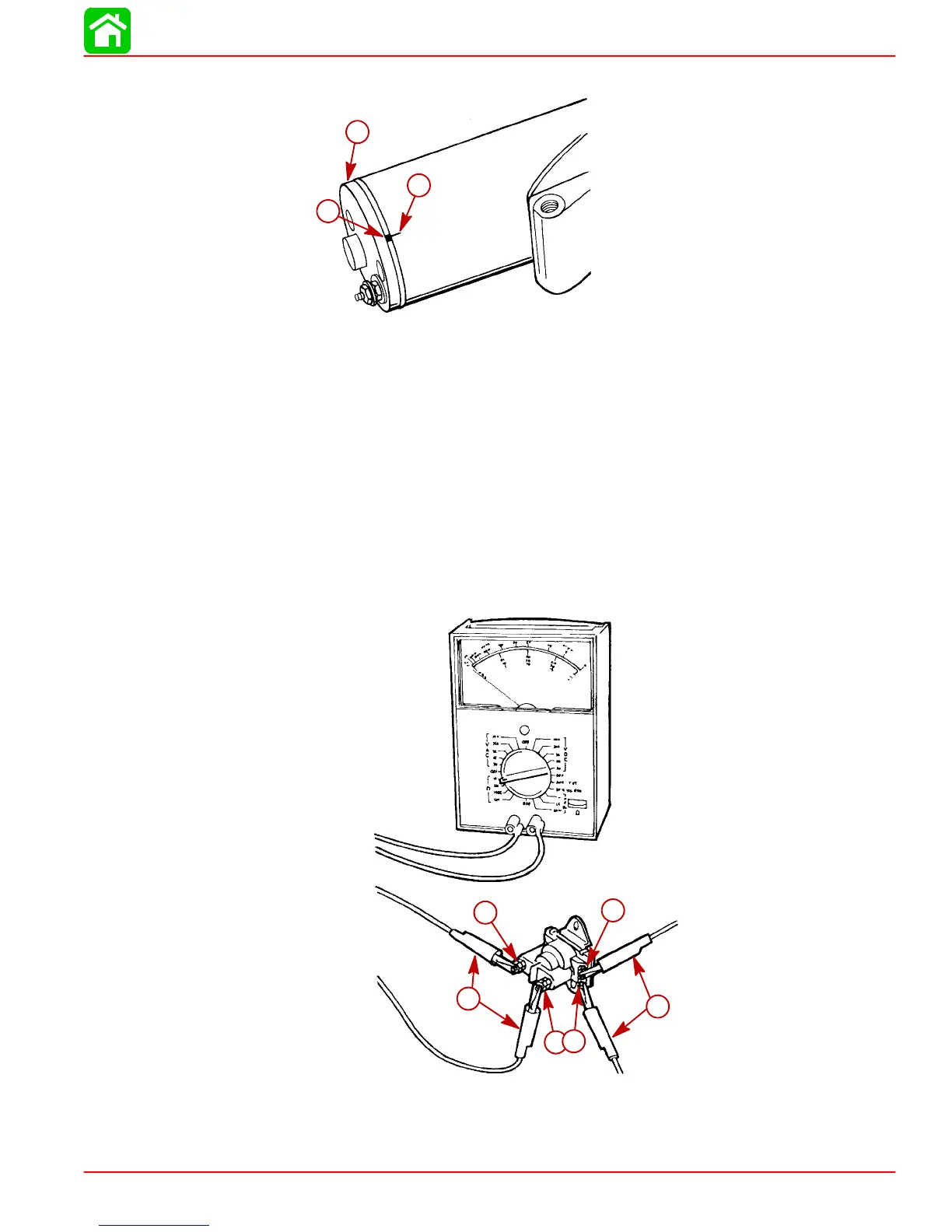

8. Install lower end cap onto starter frame.
53083
c
b
a
a - Alignment Mark; Must Align with Slot
b - Slot
c - Lower End Cap
Starter Solenoid Test
Test starter solenoid as follows:
1. Disconnect all leads from solenoid terminals.
2. Useanohmmeter,setto(Rx1scale)and connectbetweensolenoidterminals3and
4.
3. Connect a 12-volt supply between solenoid terminals 1 and 2. Solenoid should click
and meter should read zero ohms.
4. If meter does not read zero ohms (full continuity), replace solenoid.
14354
4
1
b
a
3
2
a - Ohmmeter Leads
b - 12-Volt Supply
