SIDE SHIFT
Page 7C-6 90-826883R2 JUNE 1998

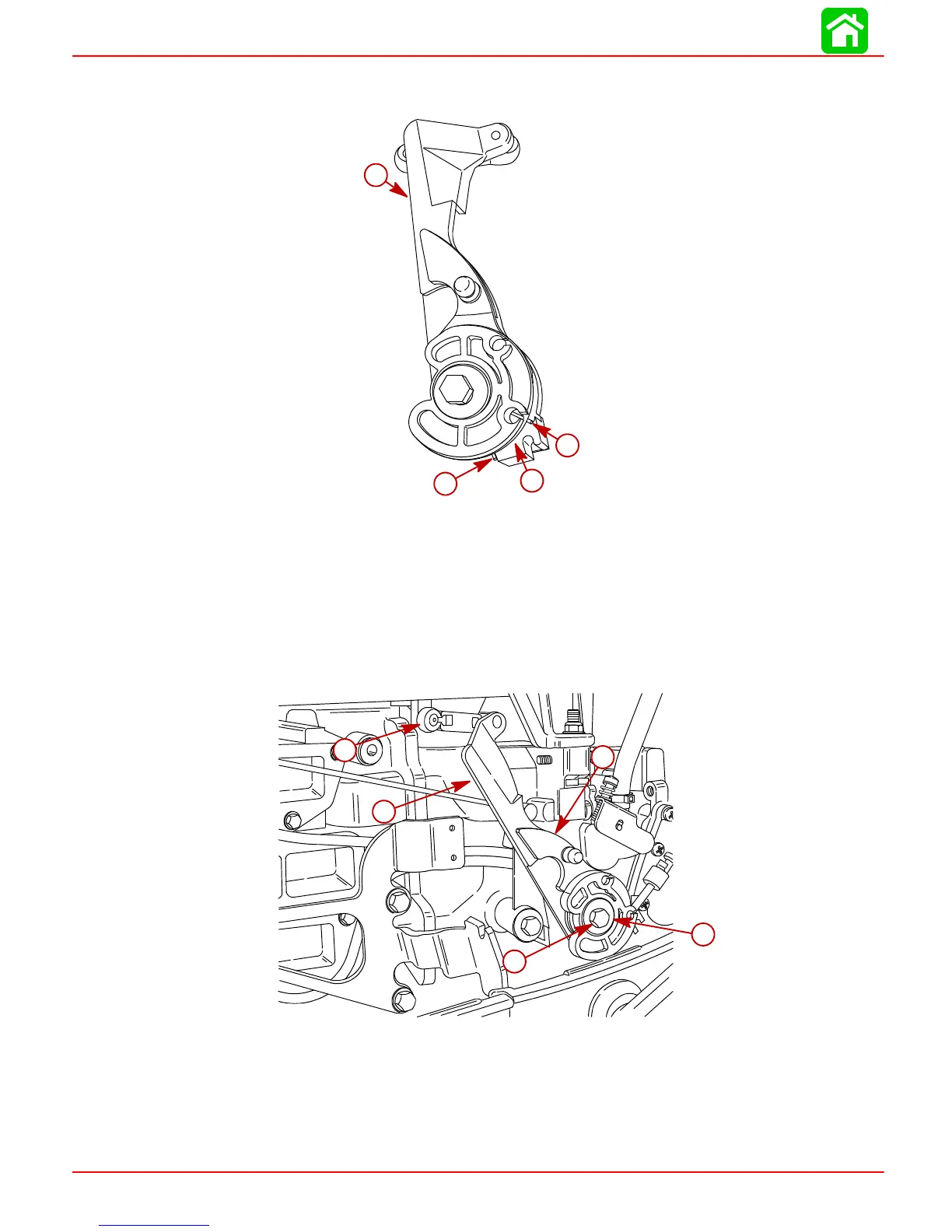

3. Installcontrolleverontothrottlecamassemblysothattabofcontrolleverispositioned
between ends of inner spring.
c
c
b
a
57043
a - Control Lever
b - Tab
c - Ends of Inner Spring
Installation
1. Secure throttle cam/control lever assembly onto mounting boss of crankcase cover
with bolt. Torque bolt to 120 lb. in. (13.6 N·m).
2. Connect timing link between ball joints of control lever and trigger assembly.
57065
a
b
c
d
e
a - Throttle Cam
b - Control Lever
c - Flat Washer
d - Bolt -- Torque bolt to 120 lb. in. (13.6 N·m)
e - Timing Link
