BATTERY CHARGING AND STARTING SYSTEMS
Page 2B-16 90-826883R2 JUNE 1998
Starter Motor
Disassembly

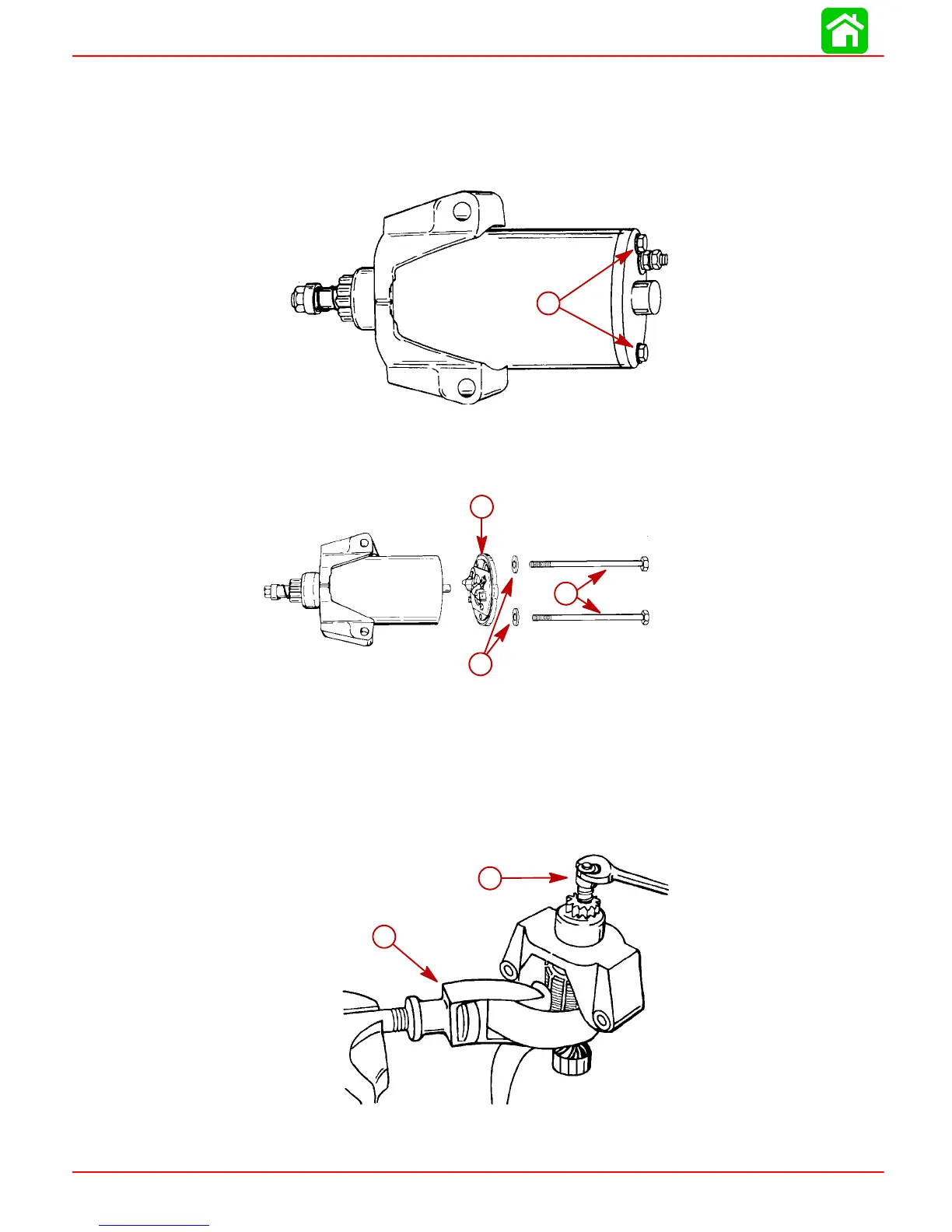

1. Remove 2 thru bolts from starter.
a
a - Bolts
2. Lightly tap on end of shaft and lower end cap with rubber mallet. Do not loose brush
springs.
53235
a
b
c
a - Lower End Cap
b - Washers
c - Bolts
3. Tap ondrive end cap toloosen. Remove end capand armature from starter housing.
4. If removal of parts that are installed on armature is necessary, hold armature with
Strap Wrench (91-24937A1) and remove locknut (and discard) from end of shaft.
53081
a
b
a - Strap Wrench (91-24937A1)
b - Locknut (discard)
