BATTERY CHARGING AND STARTING SYSTEMS
90-826883R2 JUNE 1998 Page 2B-31
Plug Harness (Battery Charging Kit)
Installation

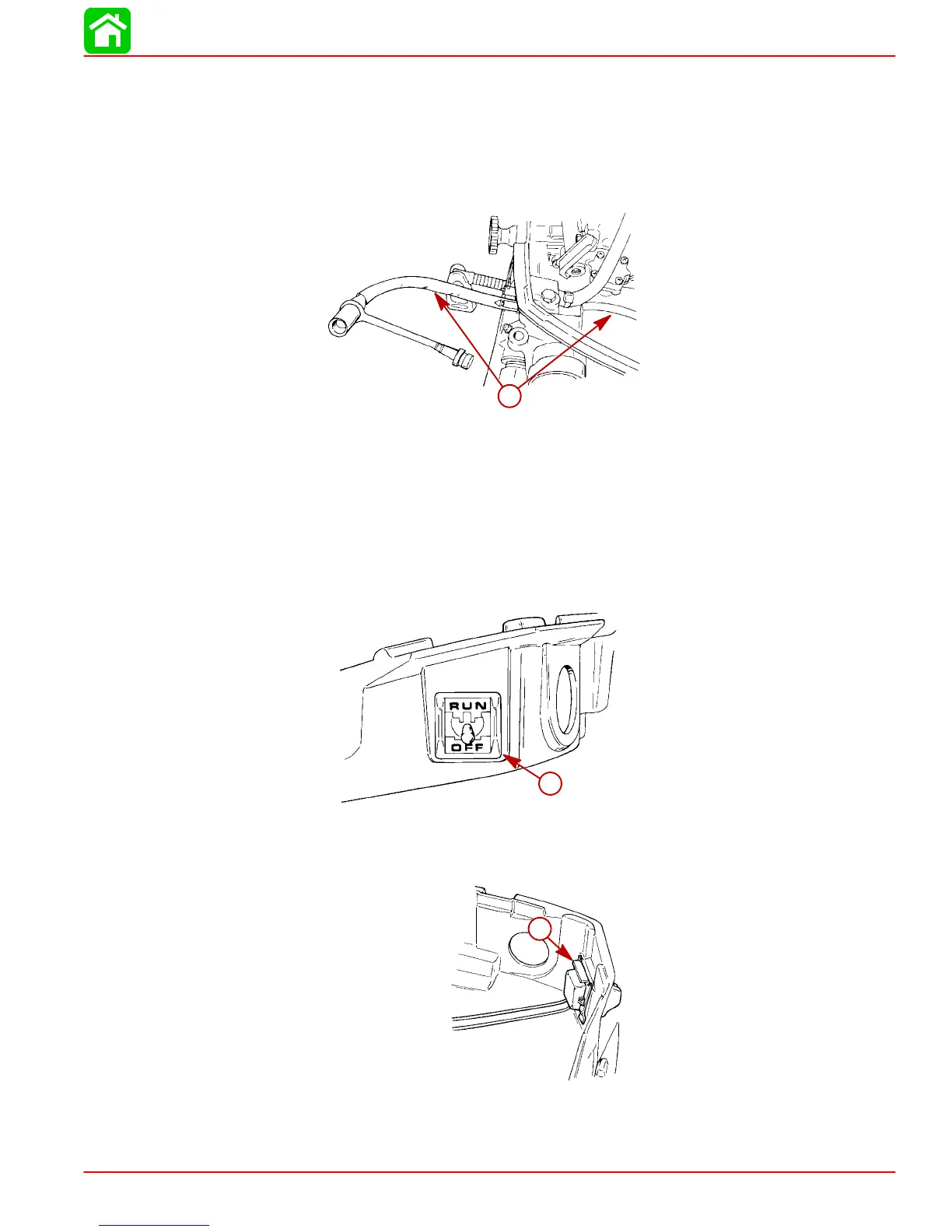

1. Install plug harness through fuel fitting opening in bottom cowl.
2. Route harness along PORT side of engine to rectifier.
53063
a
a - Harness
3. Refer to Section 2D for wiring connections.
Emergency Stop Switch (Lanyard Type)
Installation
1. Route emergency stop switch wiring through opening in STARBOARD bottom cowl.
53054
a
a - Stop Switch
2. Secure stop switch into opening in bottom cowl using clip.
53055
a
a - Clip
3. Refer to Section 2D for wiring connections.
