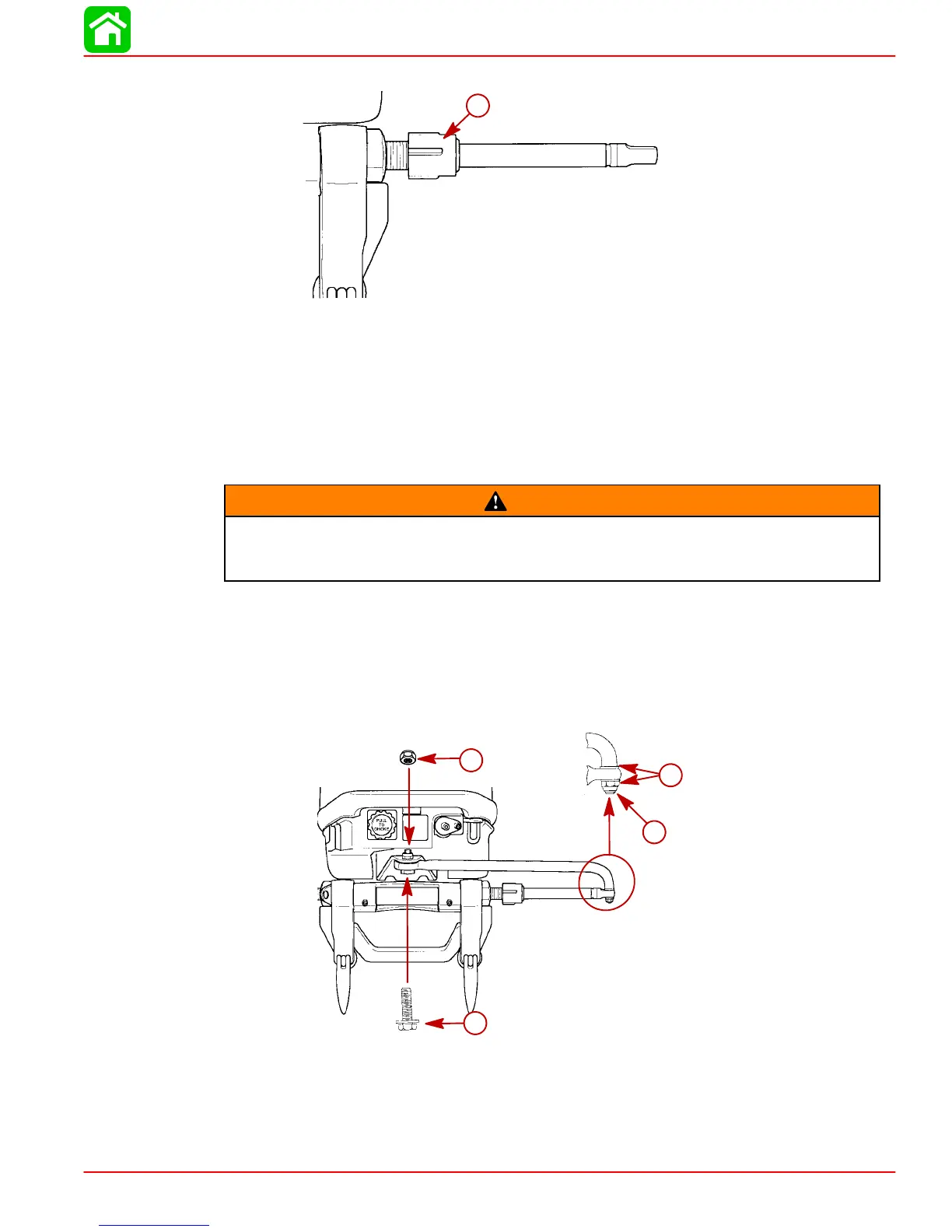

OUTBOARD MOTOR INSTALLATION
90-826883R2 JUNE 1998 Page 1D-5
4. Thread cap up to the 1/4 in. (6.4mm) mark.
a
a - Cap
Steering Link Rod Installation
IMPORTANT: The steering link rod that connects the steering cable to the engine
mustbefastenedusing specialwasherheadbolt(a -- PartNumber 10-14000)and
self locking nuts (b & c -- Part Number 11-34863). These locknuts must never
be replaced with common nuts (non locking) as they will work loose and vibrate
off freeing the link rod to disengage.
WARNING
Disengagement of a steering link rod can result in the boat taking a full, sudden,
sharp turn. This potentially violent action can cause occupants to be thrown
overboard exposing them to serious injury or death.
1. Assemblesteering linkrodto steeringcablewithtwo flat washers (d)andnyloninsert
locknut(b -- PartNumber 11-34863).Tighten locknut(b) untilit seats,then backnut
off 1/4 turn.
2. Assemblesteeringlinkrodtoenginewithspecialwasherheadbolt(a -- PartNumber
10-14000)and nyloninsert locknut(c -- Part Number11-34863).Firsttorquebolt(a)
to 20 lb. ft. (27.1 N·m), then torque locknut (c) to 20 lb. ft. (27.1 N·m).
b
d
a
c
a - Bolt (10-14000)
b - Lock Nut (11-34863)
c - Lock Nut (11-34863)
d - Washers (2 each)
