BATTERY CHARGING AND STARTING SYSTEMS
Page 2B-22 90-826883R2 JUNE 1998
Flywheel Ring Gear
Installation
IMPORTANT: Before installing ring gear on flywheel, inspect gear and flywheel for
paint runs which will prevent ring gear from laying flat against flywheel.
1. Inspect (and remove) any paint runs on ring gear and/or mounting surface on fly-
wheel.
2. Place gear on flywheel with countersink side of mounting holes toward the outside.
3. Apply Loctite 271 to threads of 4 gear mounting screws and securegear to flywheel.
Torque screws to 100 lb. in. (11.3 N·m).

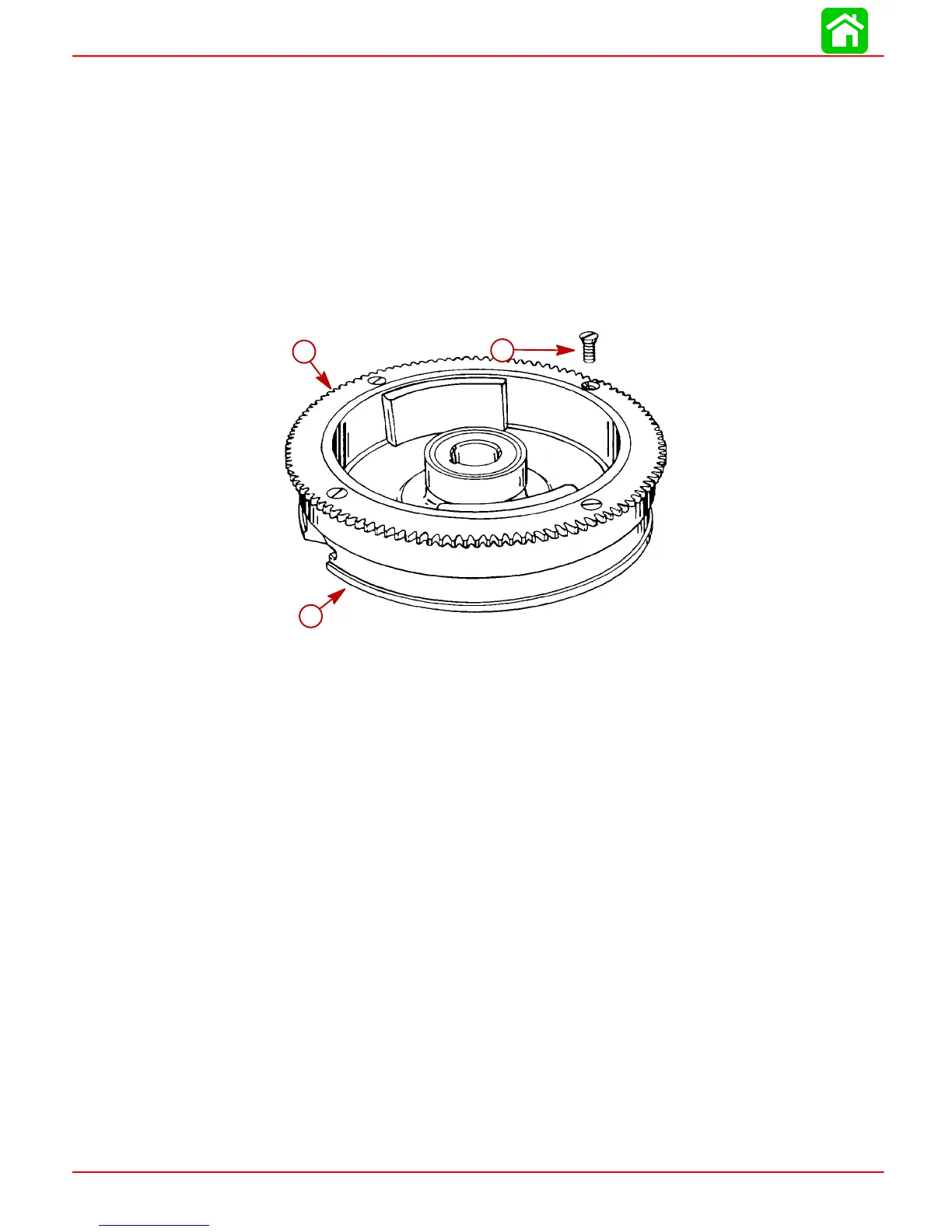

53240
a
c
b
a - Ring Gear
b - Flywheel
c - Screws [Torque to 100 lb. in. (11.3 N·)]
