CARBURETOR/FUEL PUMP
Page 3A-18 90-826883R2 JUNE 1998

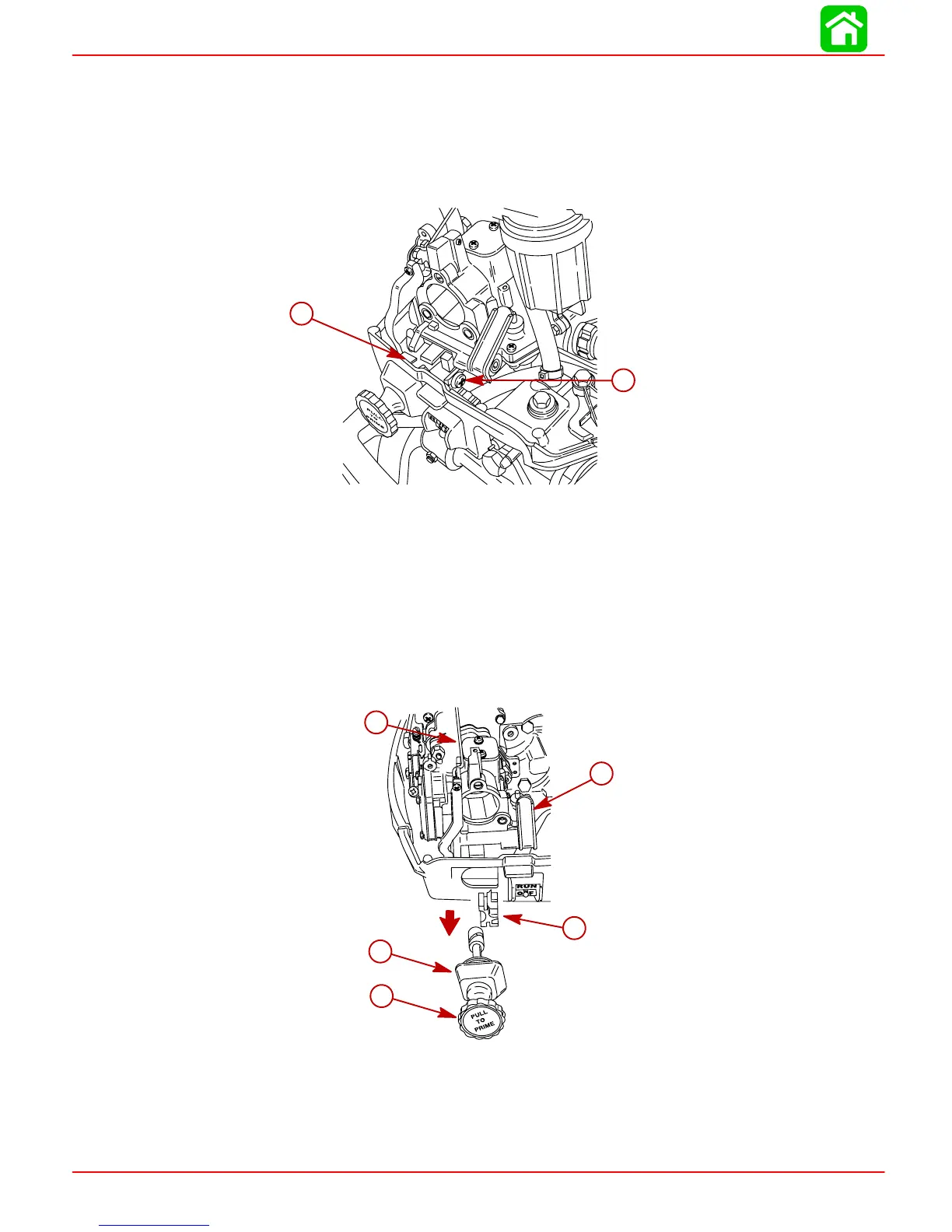

Carburetor Removal
NOTE: Air intake cover has been removed for visual clarity.
1. Loosen primer cam retaining screw.
2. Remove retaining clip.
57069
b
a
a-Screw
b-Retaining Clip
3. Push down on primer arm and pull primer knob, bezel and slide block out of bottom
cowl.
4. Remove link wire from fast idle lever.
5. Disconnect fuel line from carburetor.
6. Remove carburetor mounting nuts.
7. Lift carburetor from engine.
e
a
57068
c
d
b
a-Primer Arm
b-Primer Knob
c-Bezel
d-Slide Block
e-Link Wire
