Starter Rope Replacement
1. Remove rewind starter from engine, as outlined previously.
NOTE: If starter is broken, remove all remaining rope from sheave.
2. Disengage starter interlock from starter sheave.
3. Pull starter rope handle out from rewind starter about 1 ft. (30.5cm) and tie a knot at
this point to prevent rope from being pulled back into rewind starter.
NOTE: 1999 Model and newer have a redesigned rope guide support which must bere-
moved before replacing starter rope.
57051
a
b

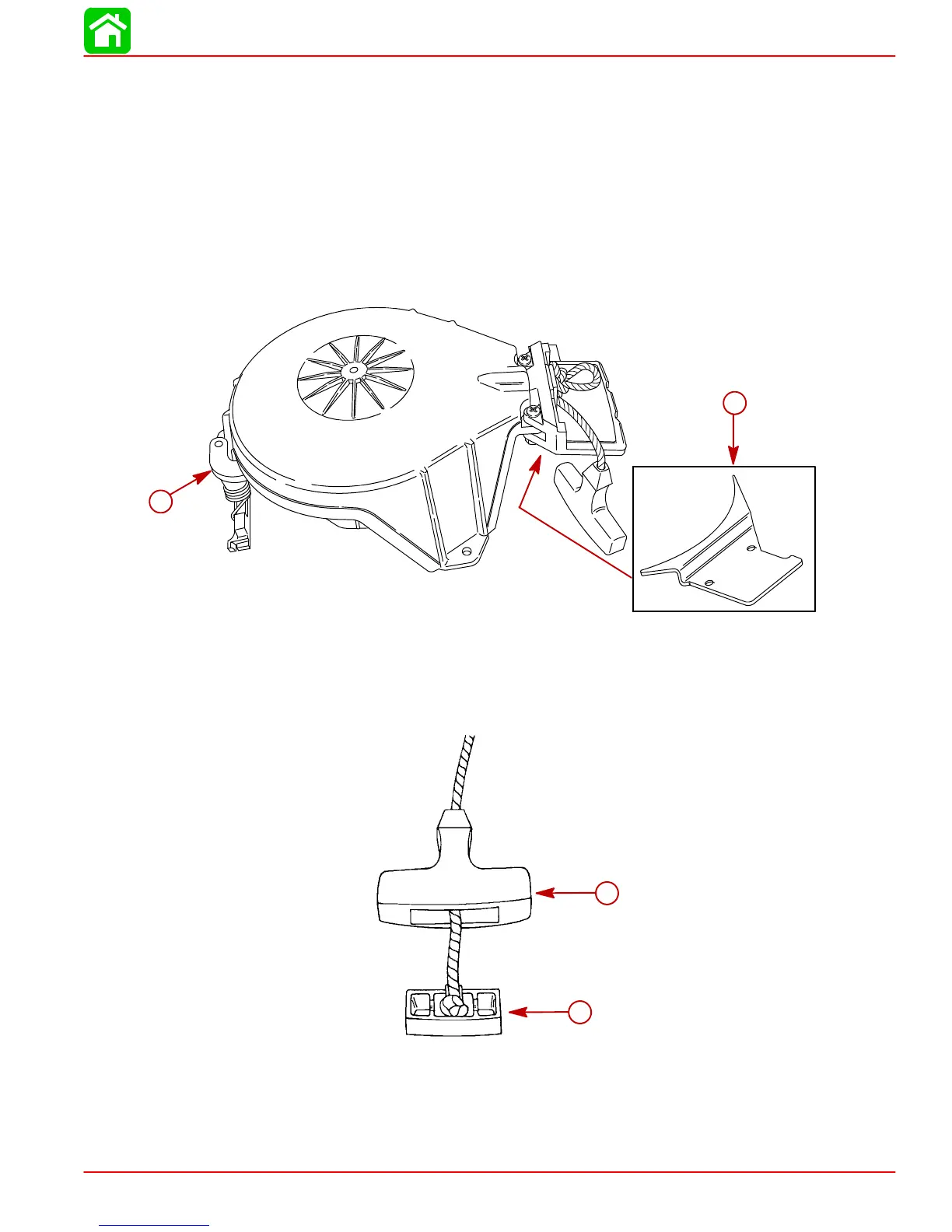

a - Interlock
b - Rope Guide Support (1999 Model and Newer)
4. Remove rope retainer from starter handle and rope.
53233
a
b
a - Starter Handle
b - Retainer
