TILLER HANDLE
90-826883R2 JUNE 1998 Page 7B-9

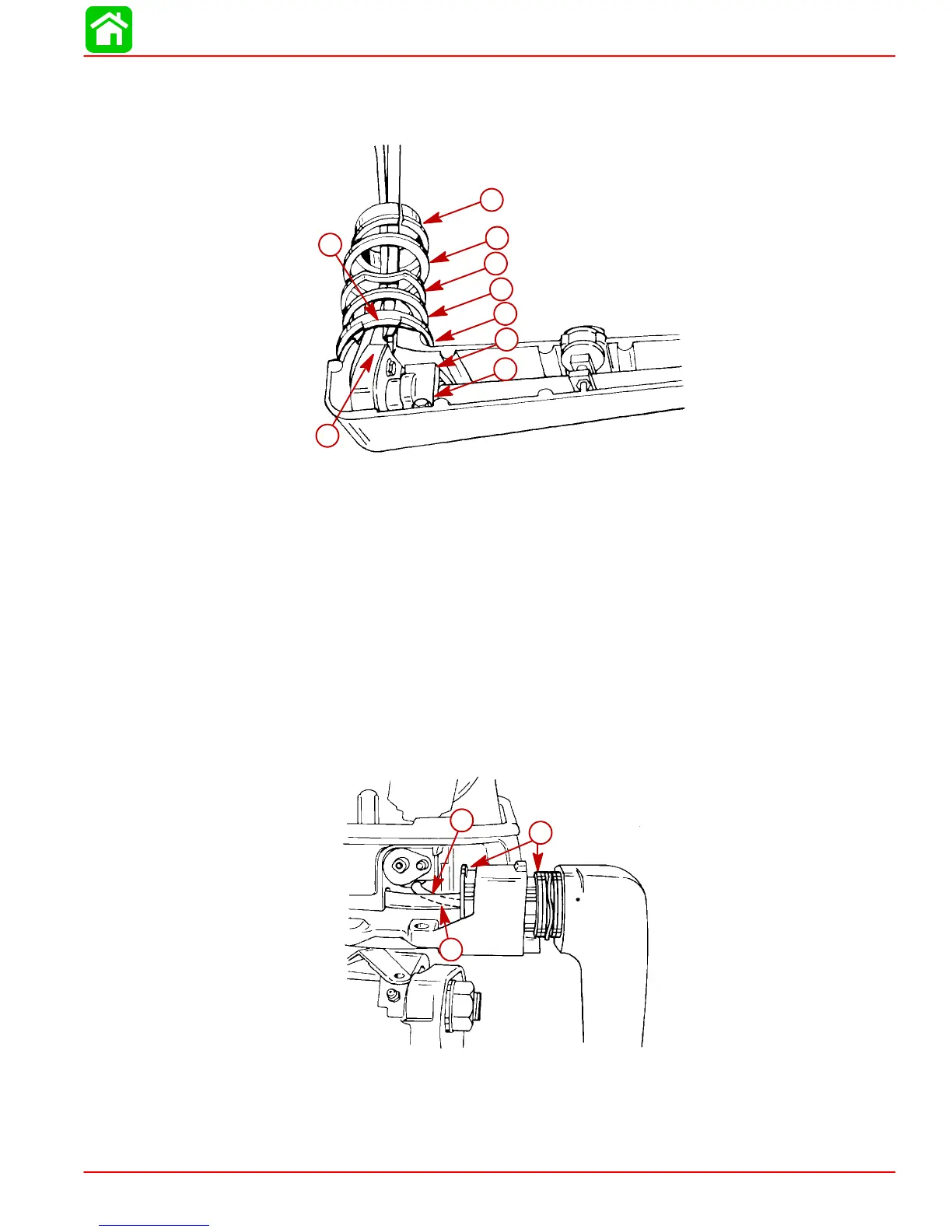

5. Secure tiller tube in handle with retainer and bolt. Torque bolt to 50 lb. in. (5.6 N·m).
6. Install tiller washer (tab aligns with slot in handle), plain washer, wave washer, plain
washer and flanged bushing over cable/harness assembly.
53248
d
e
b
a
c
f
g
h
f
a - Retainer
b - Bolt -- Torque to 50 lb. in. (5.6 N·m)
c - Tiller Washer
d - Tab
e - Slot
f - Plain Washer
g - Wave Washer
h - Flanged Bushing
7. Slide tiller handle assembly into anchor bracket.
8. Route stop button harness through fuel connector opening in bottom cowl.
9. Route control cables through opening in bottom cowl.
10. Align tabs of inner and outer flanged bushings with slots in anchor bracket.
53169
b
c
a
a - Stop Button Harness
b - Control Cables
c - Tabs
To Next Page
