THROTTLE/SHIFT LINKAGE
90-826883R2 JUNE 1998 Page 7A-9

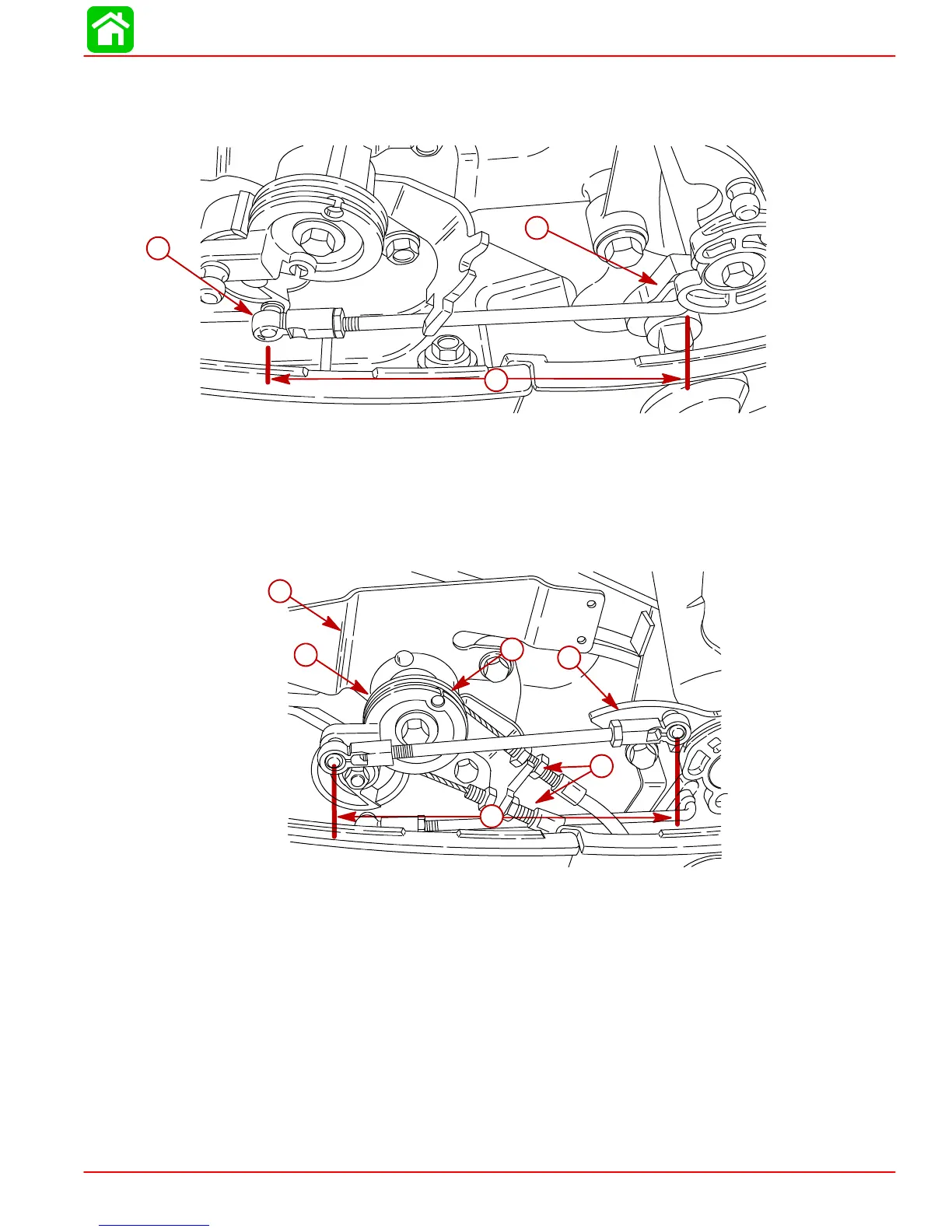

11. Adjust shift link rod to a length of 5-1/2 in. (13.9 cm) as measured between ball joint
centerlines.
12. Connect shift link rod between joints of secondary lever and shift shaft lever.
b
c
a
57033
a - Shift Link Rod -- Adjust to length of 5-1/2 in. (13.9 cm)
b - Shift Shaft Lever
c - Secondary Lever
13. Adjustthrottlelinkrodtoalengthof5-1/4in.(13.3cm)asmeasuredbetweenballjoint
centerlines.
14. Connect throttle link rod between ball joints of primary gear and throttle cam.
a
b
c
d
e
f
a - Throttle Link Rod -- Adjust to length of 5-1/4 in. (13.3 cm)
b - Primary Gear
c - Throttle Cam
d - Pulley
e - Anchor Bracket
f - Control Cables
To Next Page
