THROTTLE/SHIFT LINKAGE
Page 7A-6 90-826883R2 JUNE 1998

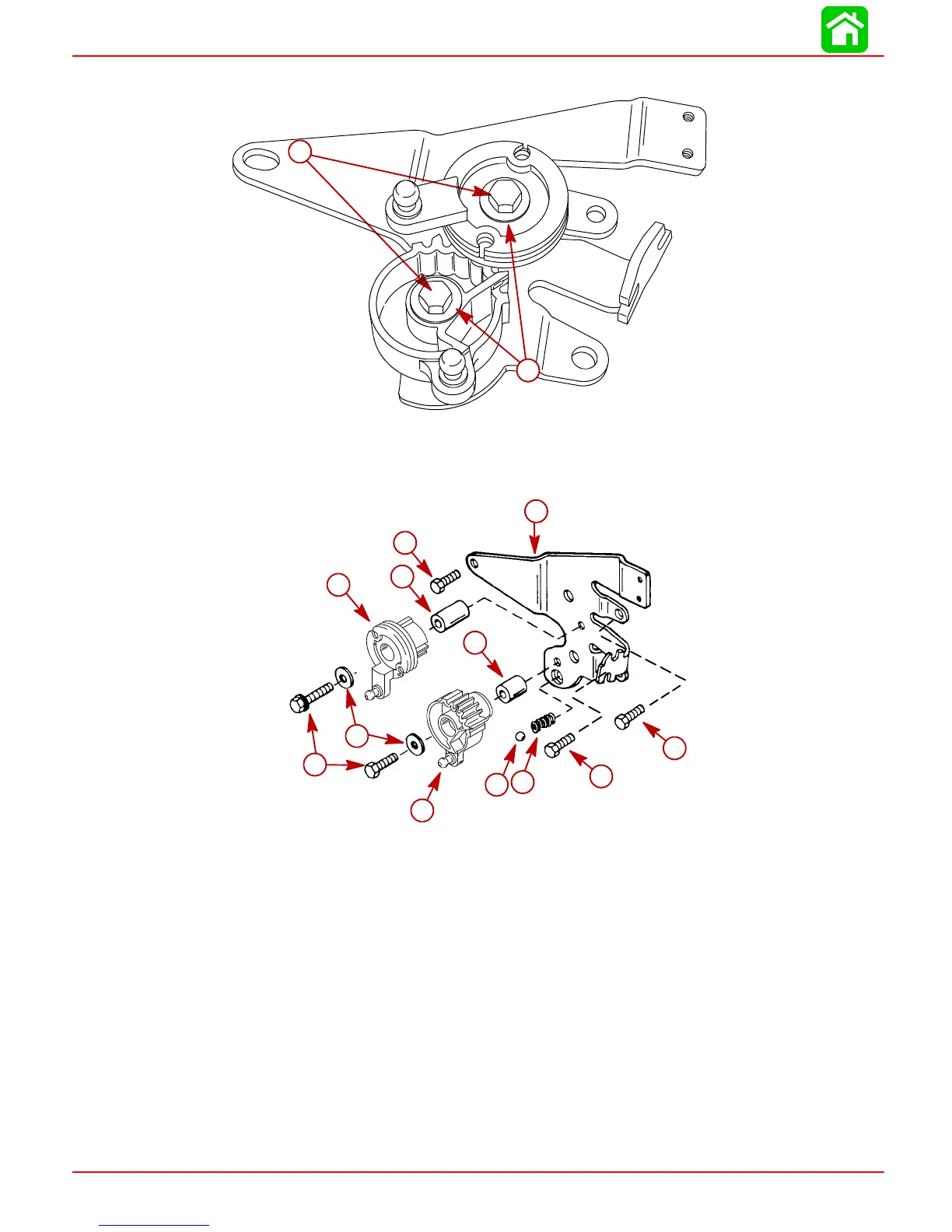

5. Remove nuts and flat washers.
57040
b
a
a - Nuts
b - Flat Washers
6. Disassemble control platform.
53174
b
c
d
e
a
f
e
e
g
h
i
j
a - Bolts (2) -- Torque to 120 lb. in. (13.6 N·m)
b - Flatwashers (2)
c - Primary Gear
d - Bushing (Long)
e - Mount Bolts -- Torque to 120 lb. in. (13.6 N·m)
f - Control Platform
g - Bushing (Short)
h - Detent Spring
i - Detent Ball
j - Secondary Gear
