GEAR HOUSING
90-826883R2 JUNE 1998 Page 6A-27

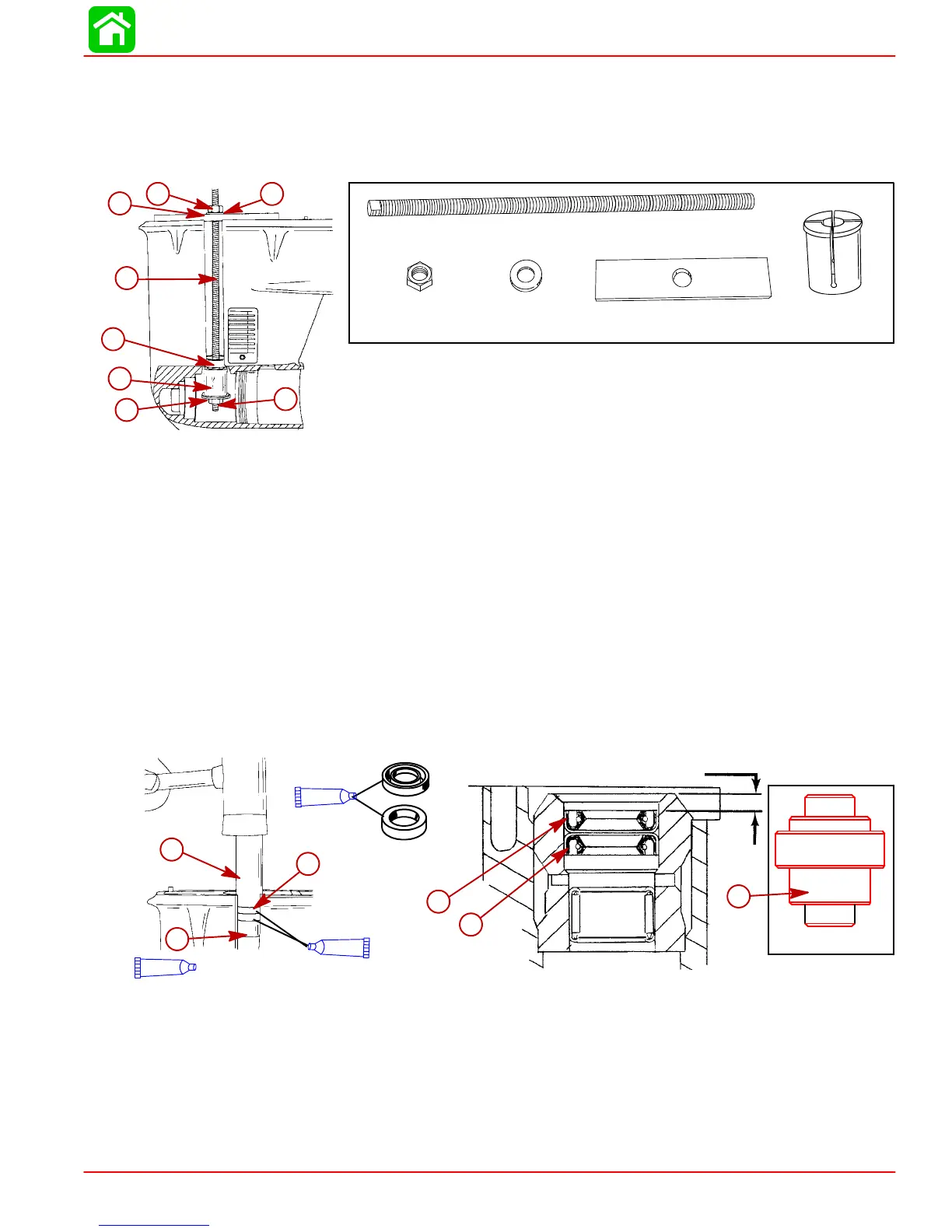

2. Install lower driveshaft bearing cup into driveshaft bore of gear housing as follows:
· Assemble bearing cup as shown.
· Draw bearing cup up to shoulder of gearcase housing using cup puller
(91-44385) as shown
a
b
c
c
d
e
f
91-44385
11-24156
12-34961
91-29310
f
91-44385
a-Bearing Cup
b-Bearing Cup Puller (91-44385)
c-Flat Washers 2 (12-34961)
d-Threaded Rod 0.625x18-16 in. long (91-31229)
e-Plate (91-29310)
f-Hex Nut 0.625x18 (2) (11-24156)
3. Install new driveshaft oil seals into driveshaft bore of gear housing as follows:
· Apply Loctite “271” to outer diameter of driveshaft oil seals.
· With lip of seal facing down, press the first oil seal into driveshaft bore until seal
is just below the top of driveshaft bore.
· With lip of seal facing up, and using Installation tool 91-858775, press the second
oil seal into driveshaft bore until seal is 3/16” (4.7 mm) below top of driveshaft
bore.
· Wipe off excess Loctite.
a
b
7
Loctite “271” (92-809819)
7
7
d
e
3/16² (4.7 mm)
91-858775
c
f
a-Upper Driveshaft Bearing
b-Mandrel
c-Seals (2)
d-Oil Seal with Lip of Seal Facing Up
e-Oil Seal with Lip of Seal Facing Down
f-Installation Tool (91-858775)
To Next Page
