CARBURETOR/FUEL
PUMP
90-826883R2 JUNE 1998
Page 3A-21

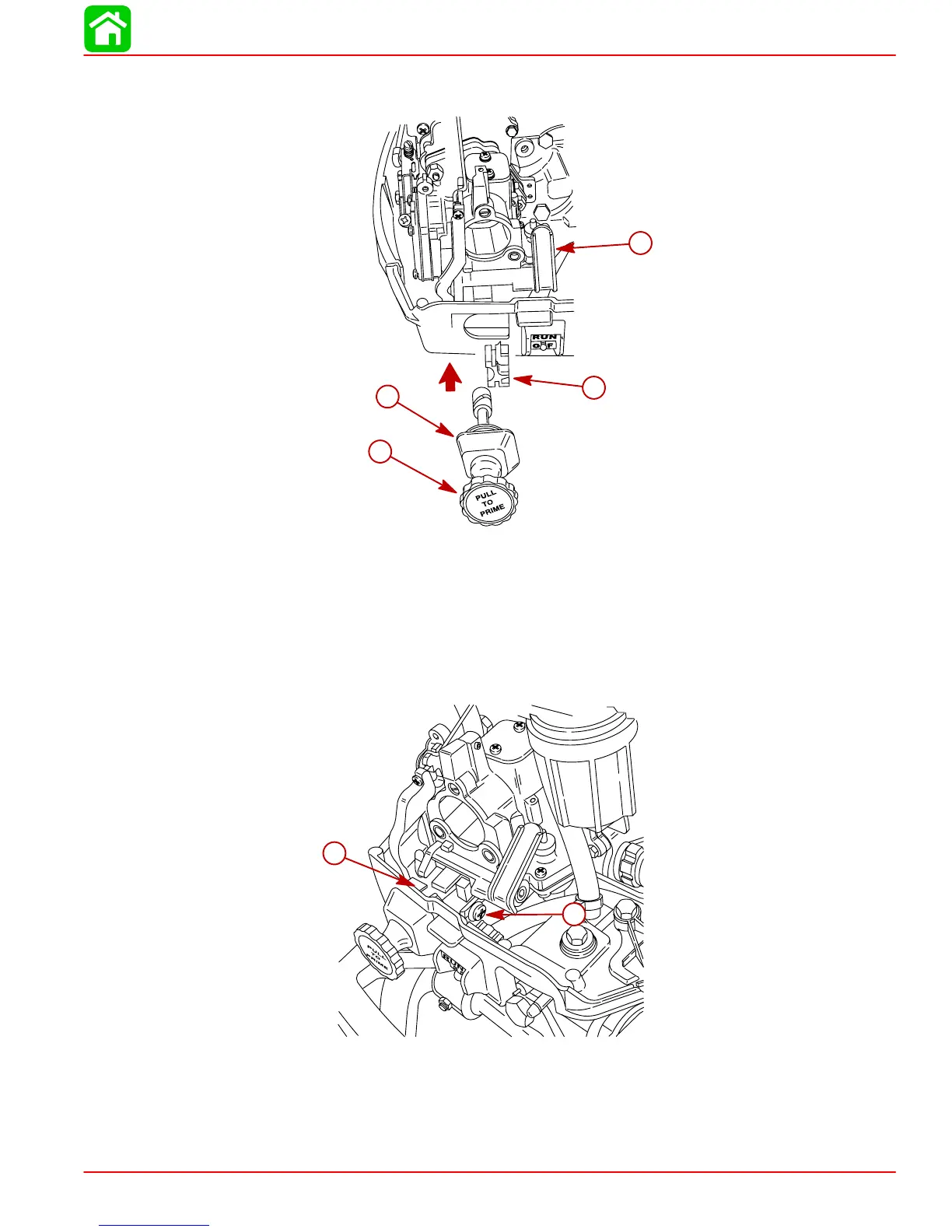

7.
Push down on primer arm and insert primer knob, bezel and slide block into primer
assembly
.
c
a
d
b
57068
a-
Primer Arm
b-
Primer Knob
c-
Bezel
d-
Slide Block
8.
T
ighten screw to secure slide block in place.
9.
Align notch in back side of bezel with tab on bottom cowl and secure bezel in place
with retaining clip.
b
a
57069
a-
Screw
b-
Retaining Clip
