MAINTENANCE
90-826883R2 JUNE 1998 Page 1B-9

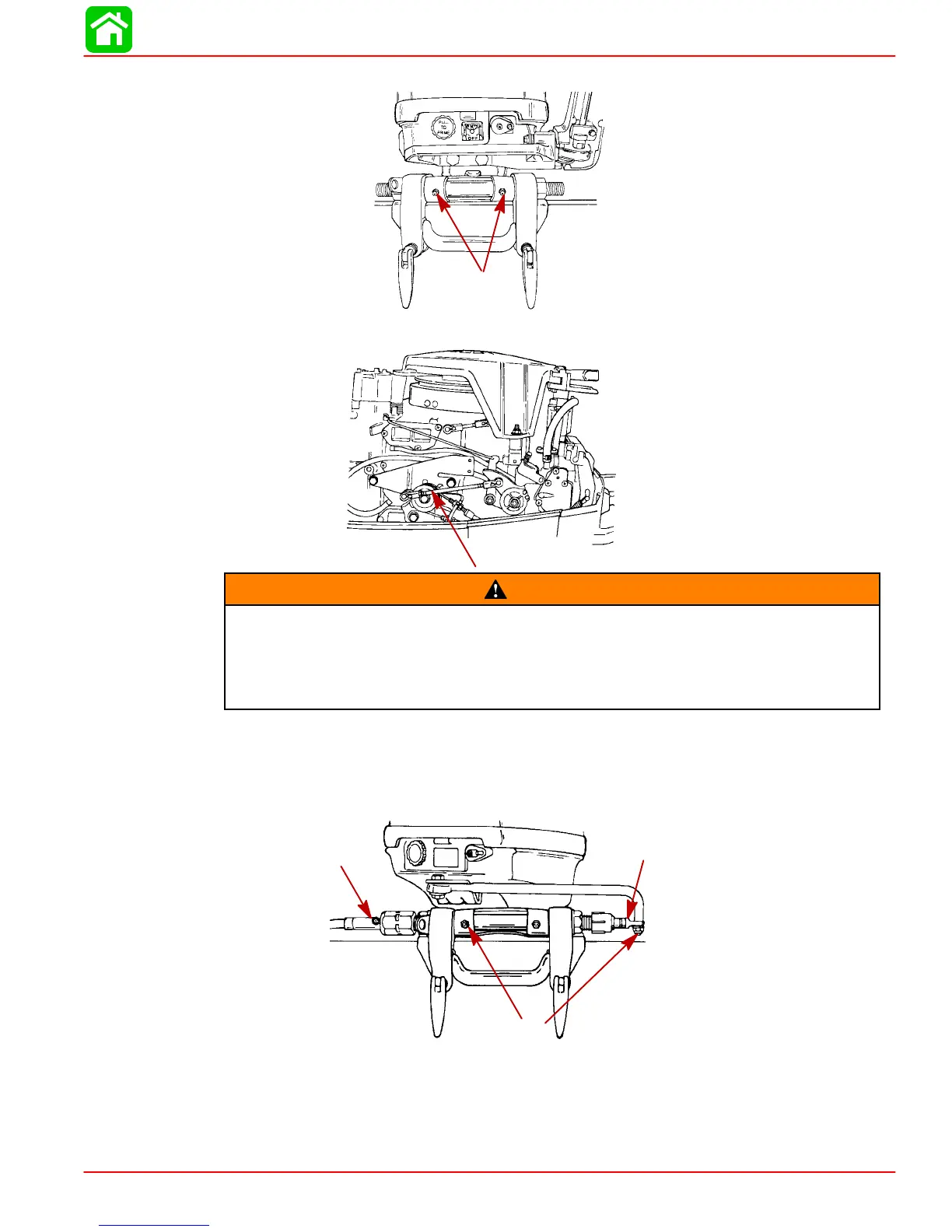

4. Tilt Tube -- Lubricate fittings.
5. Lubricate the throttle and shaft cables, moving components and pivot locations.
WARNING
The end of the steering cable must be fully retracted into the outboard tilt tube
before adding lubricant. Adding lubricant to steering cable when fully extended
could cause steering cable to become hydraulically locked. An hydraulically
lockedsteeringcable willcauseloss ofsteeringcontrol, possiblyresultinginse-
rious injury or death.
6. SteeringCableGreaseFitting(IfEquipped) -- Rotatesteeringwheeltofullyretractthe
steering cable end (a) into the outboard tilt tube. Lubricate through fitting (b).
Lubricate points 7 With Light Weight Oil
7. Steering Link Rod Pivot Points -- Lubricate points.
7
6-b
6-a
