POWERHEAD
Page 4-36 90-826883R2 JUNE 1998

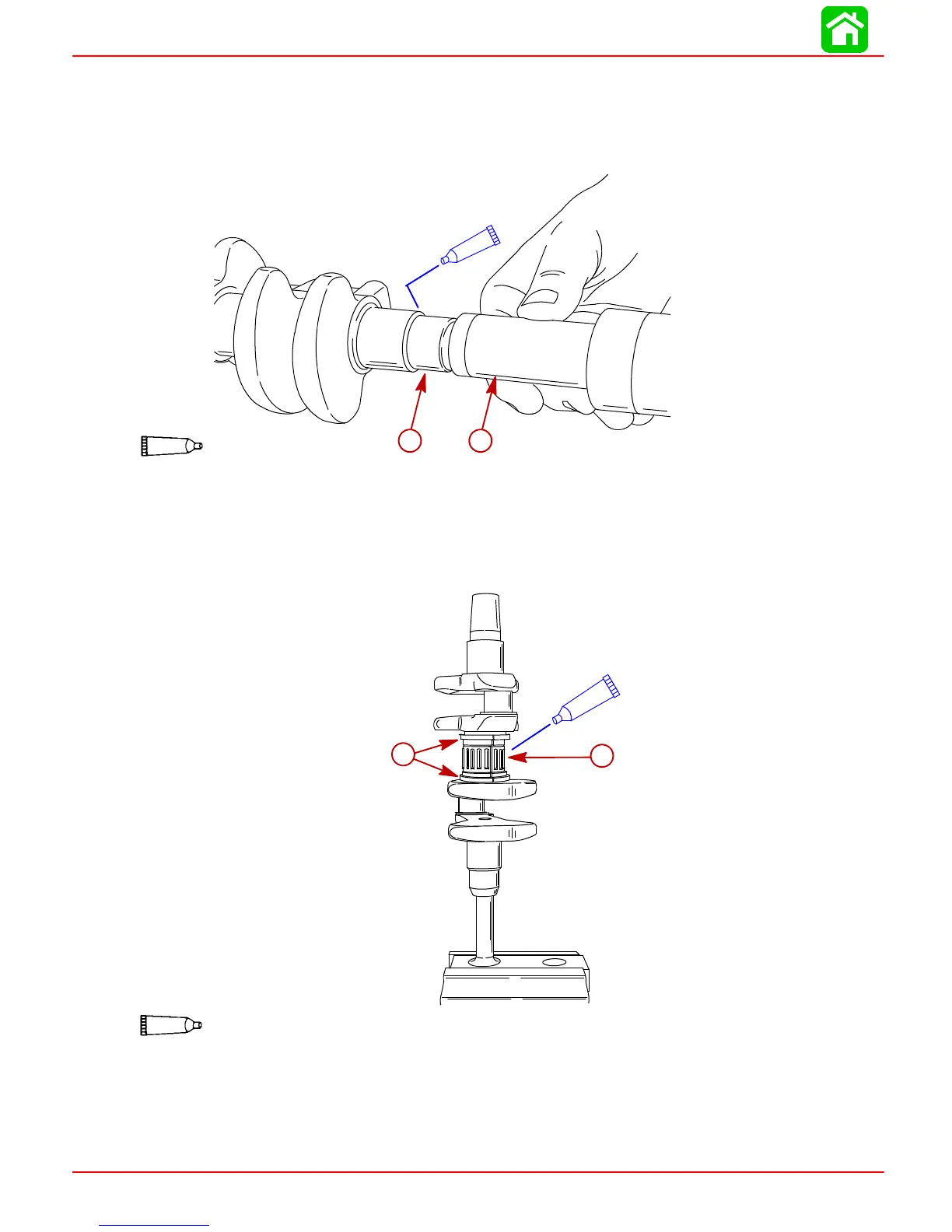

1. If removed, reinstall new crankshaft carrier as follows:
a. Apply a thin coat of Loctite 271 to carrier surface on crankshaft.
b. Square the carrier with crankshaft and using a 7/8 in.deep well socket and ham-
mer, carefully seat carrier onto crankshaft.
57107
a
b
7
Loctite 271 (92-809820)
7
a - Carrier
b - 7/8 in. deep well socket
2. Apply2-4-Cw/Teflon to crankshaft rollerbearingsandthrust washers to holdcompo-
nents in place on crankshaft while reassembling.
3. Install roller bearings and thrust washers onto crankshaft.
57108
95
2-4-C With Teflon (92-825407A12)
a
b
95
a - Race Halves with Roller Bearings
b - Thrust Washers
To Next Page
