POWERHEAD
Page 4-48 90-826883R2 JUNE 1998
9. Rotate crankshaft several times to assure free operation.
10. If disassembled, assemble reed block as follows:
a. Torque reed stop screws to 25 lb. in. (2.8 N·m)
b. Lubricate seal with 2-4-C w/Teflon and install reed block onto cylinder block.
95
2-4-C With Teflon (92-825407A12)
57080
a
b
c
95

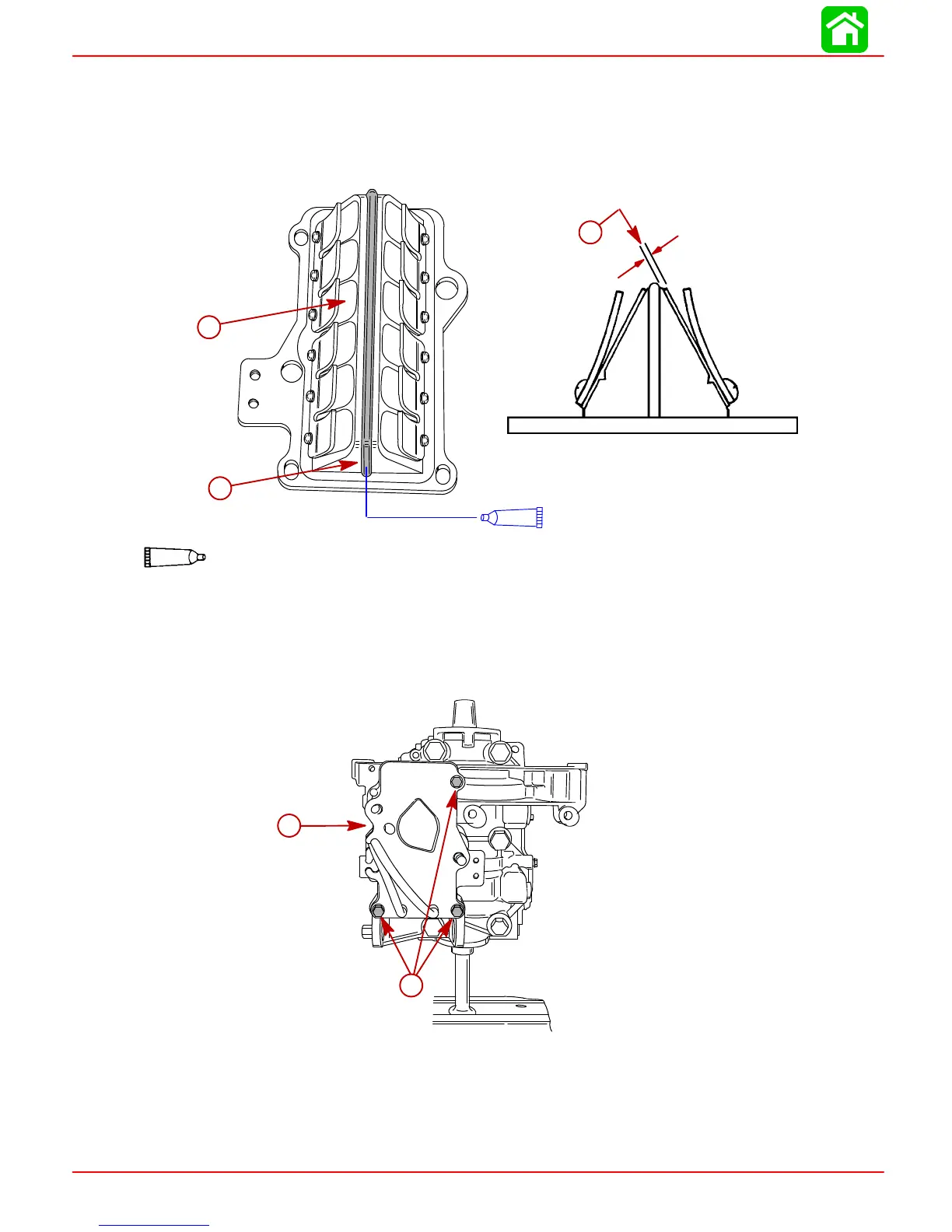

a - Screws [Torque to 25 lb. in. (2.8 N·m)]
b - Seal
c - Reed Valve Opening -- Maximum Opening 0.007 in. (0.178 mm)
11. Securecarburetoradaptorplatewithnewgaskettocylinderblockwith3bolts.Torque
bolts to 80 lb. in. (9.0 N·m).
57079
a
b
a - Adaptor Plate
b - Bolts -- Torque to 80 lb. in. (9.0 N·m)
