GEAR HOUSING
Page 6A-30 90-826883R2 JUNE 1998
9. Removenut frompropellershaft, thenremovebearing carrier, propellershaftandman-
drel from propeller shaft cavity.
10. Apply a light coat of oil on tapered bearing race.
11. Place forward gear on a press with gear teeth down.
12. Apply a light coat of oil to I.D. of forward gear tapered bearing.
13. Position forward gear tapered bearing over gear.
14. Press on inner race of bearing until bearing is firmly seated against forward gear.
15. Apply a light coat of Gear Lube to bore in center of forward gear.
16. Using a suitable mandrel, press forward gear bushing into forward gear until bushing
is flush with the back of gear.
a
b
c
d
e
b
95
2-4-C w/Teflon (92-850736A1)
95

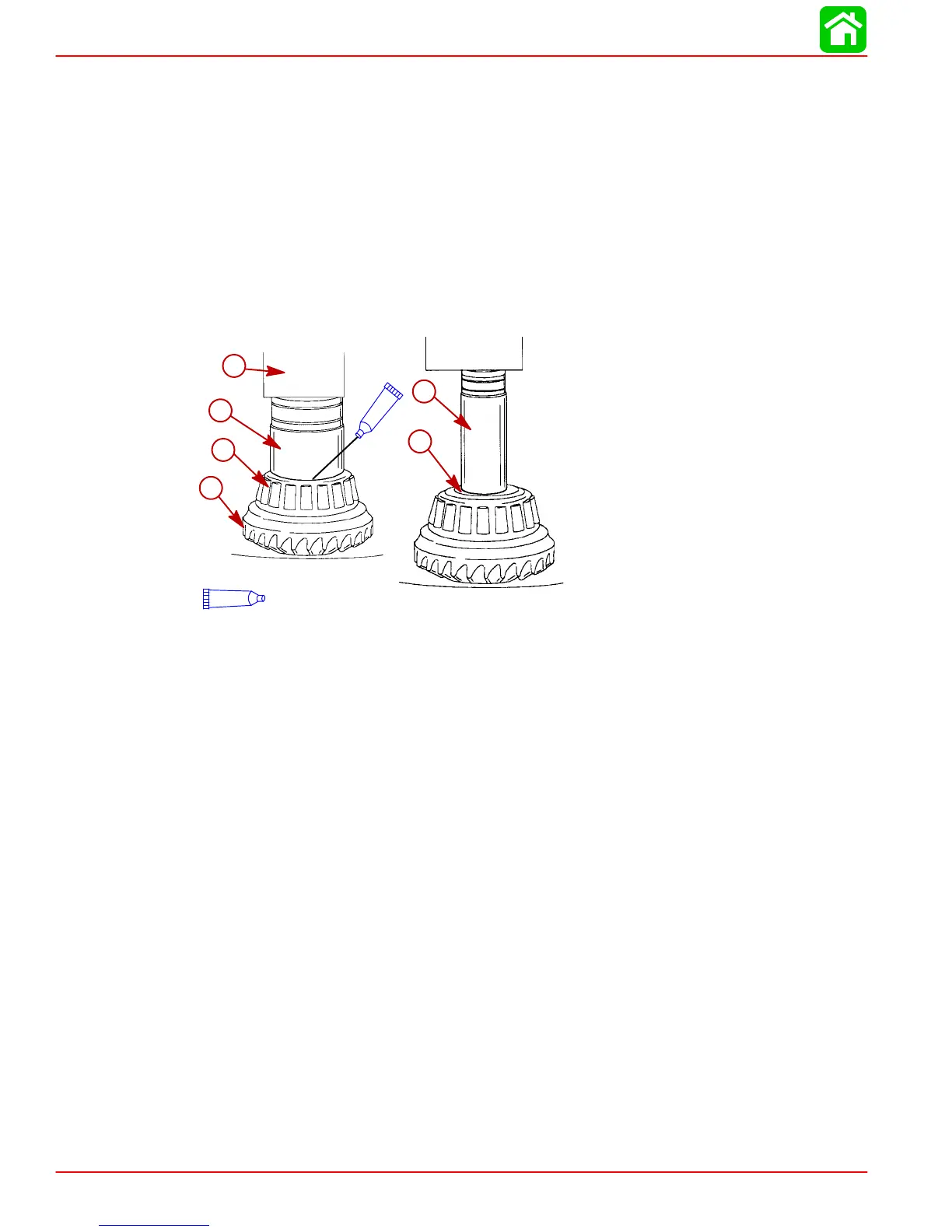

a-Press
b-Mandrel
c-Bearing
d-Forward Gear
e-Bushing
17. Apply a light coat ofoil on forward gear tapered bearing, then positionforward gear as-
sembly in gear housing.
