GEAR HOUSING
Page 6A-32 90-826883R2 JUNE 1998

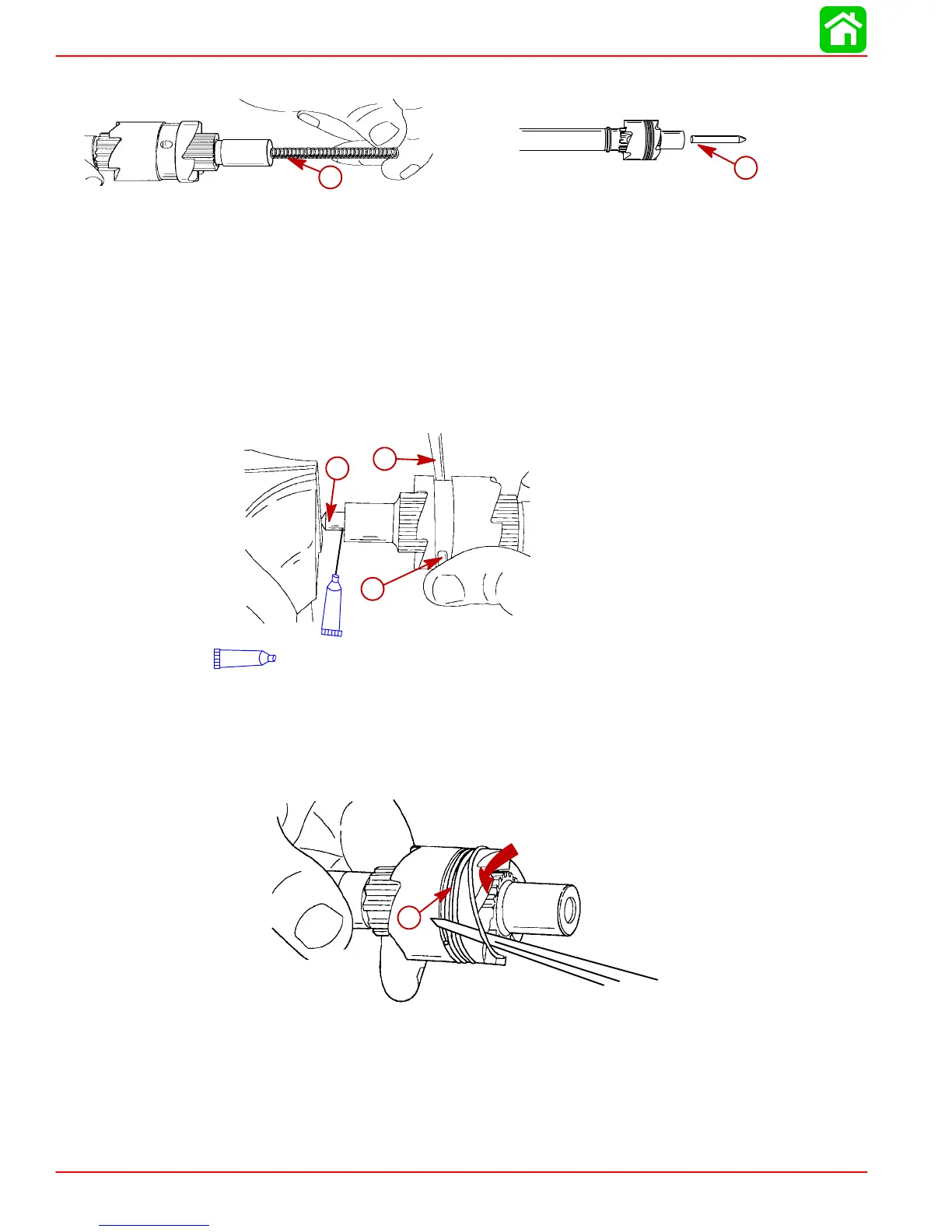

3. Insert flat end of cam follower into propeller shaft.
a
b
a-Spring
b-Flat End of Cam Follower
4. Place cam follower against a solid object and push against cam follower to compress
spring.
5. Insert a punch thru the cross-pin holes in sliding clutch (between cam follower and
spring).
6. Apply a light coat of oil on cross-pin and install cross-pin into sliding clutch by pushing
punch out of clutch with cross-pin, as shown. (Release pressure on cam follower and
remove follower from propeller shaft.)
a
b
c
95
2-4-C w/Teflon (92-850736A1)
95
a-Punch
b-Cross Pin
c-Cam Follower
7. Install cross-pin retainer spring.
a
a-Cross Pin Retainer Spring
8. Placeadabof2-4-Cw/Teflonintoendofpropellershaftandinstallcamfollower(flatend
first).
