JET DRIVE
Page 6B-12 90-826883R2 JUNE 1998
2. Place(center)theoutboardontheboattransomsothatthetransombracketsarerest-
ing on top of the transom. Temporarily fasten the outboard to the transom using two
C-clamps.
3. Position the outboard in a vertical position.
4. Line up a straight edge along the bottom of the boat with the horizontal line made in
Step 1 and measure the distance between the horizontal line and top front edge of
the water intake housing.
a
b

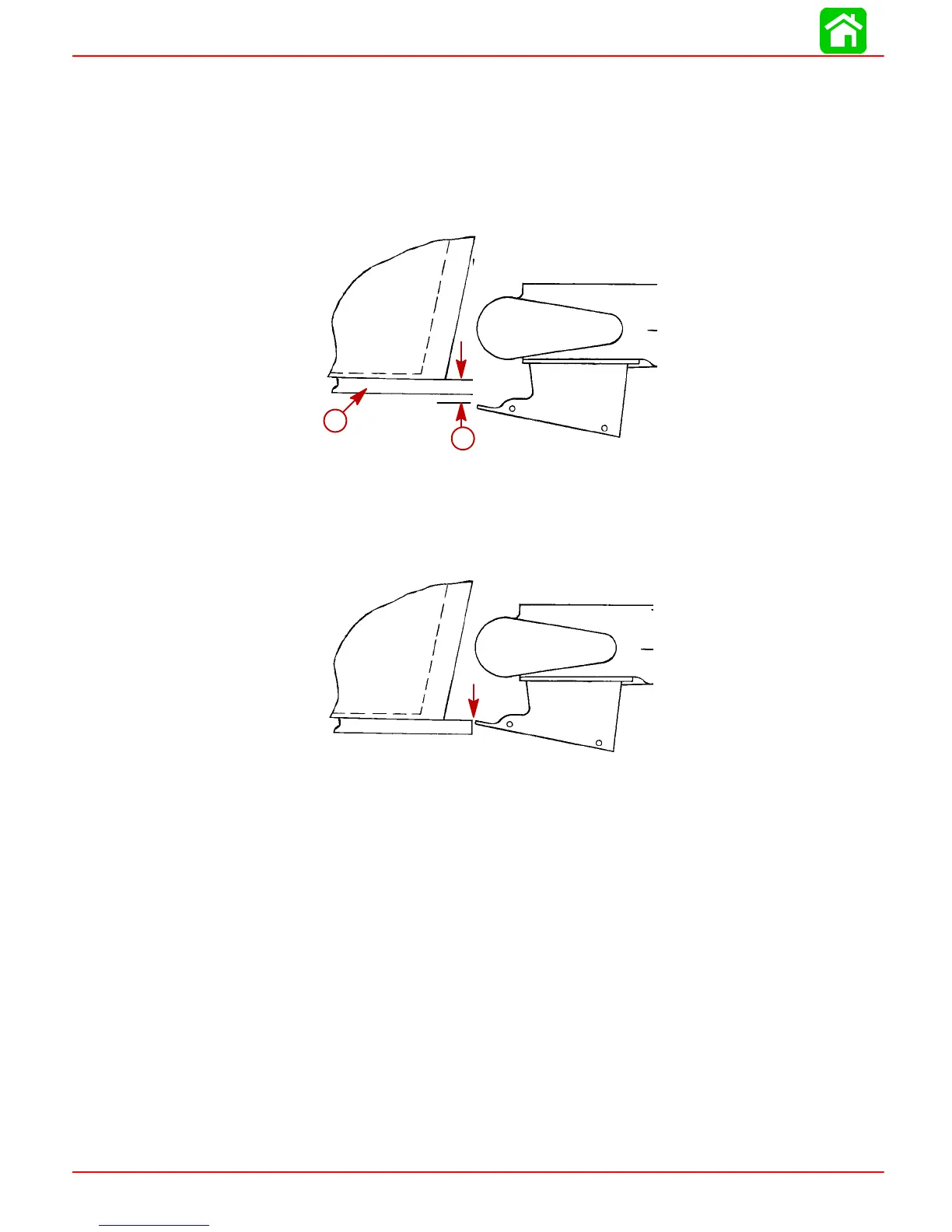

a - Straight Edge
b - Top Front Edge of Water Intake Housing
5. Raise The outboard up on the transom the distance measured in Step 4. Use a
straightedgeandrecheckthemountingheight.Thetopedgeofthewaterintakehous-
ing should be lined up with the horizontal line made in Step 1.
6. Fasten outboard to the transom at this height.
