OUTBOARD MOTOR INSTALLATION
90-826883R2 JUNE 1998 Page 1D-9
2. Position the remote wiring harness and battery cables thru the bottom cowl rubber
grommet as shown.
3. Plug the remote wiring harness into the engine wiring harness connector.
4. Secure the connection together using retainer.
a
b c
d

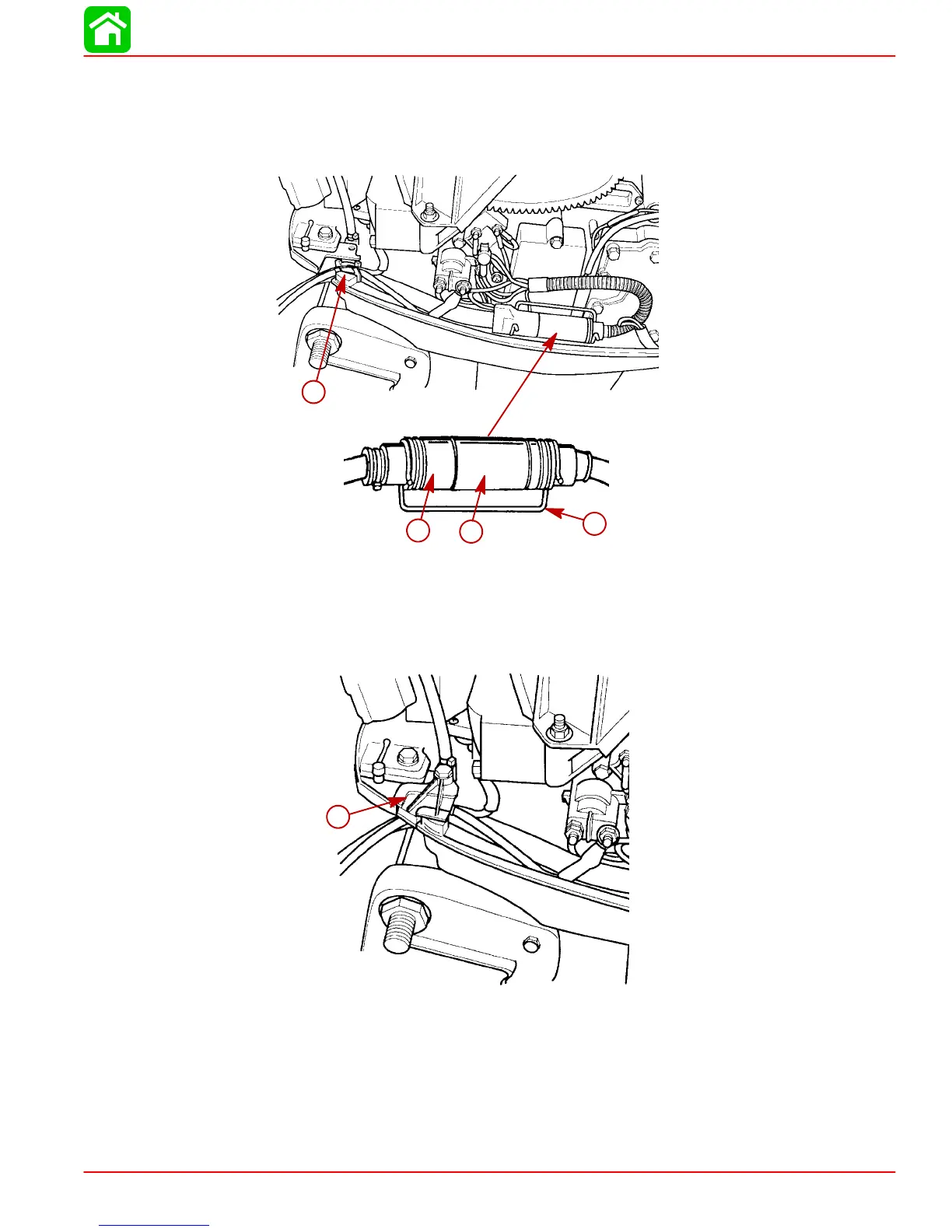

a - Rubber Grommet
b - Remote Wiring Harness
c - Engine Harness Connector
d - Retainer
5. Fasten the remote wiring harness and battery cables into the bottom cowl rubber
grommet with retainer.
a
a - Retainer
