BATTERY CHARGING AND STARTING SYSTEMS
Page 2B-12 90-826883R2 JUNE 1998
Starter Motor Does Not Turn
SAFETY WARNING: Disconnect BLACK (w/YELLOW
sleeve) cablefrom startersolenoidtestpoint 1BEFORE
making tests to prevent unexpected engine cranking.
TEST 1
Useanohmmeter(Rx1scale)andconnectmeterleads
between NEGATIVE (-) battery post and common pow-
erhead ground.
ThereisanopencircuitintheBLACKNEGATIVE(-)bat-
tery cable between the NEGATIVE (-) battery post and
the powerhead.
· Check cable for loose or corroded connections.
· Check cable for open.
Continuity Indicated
Proceed to TEST 2, on next page.

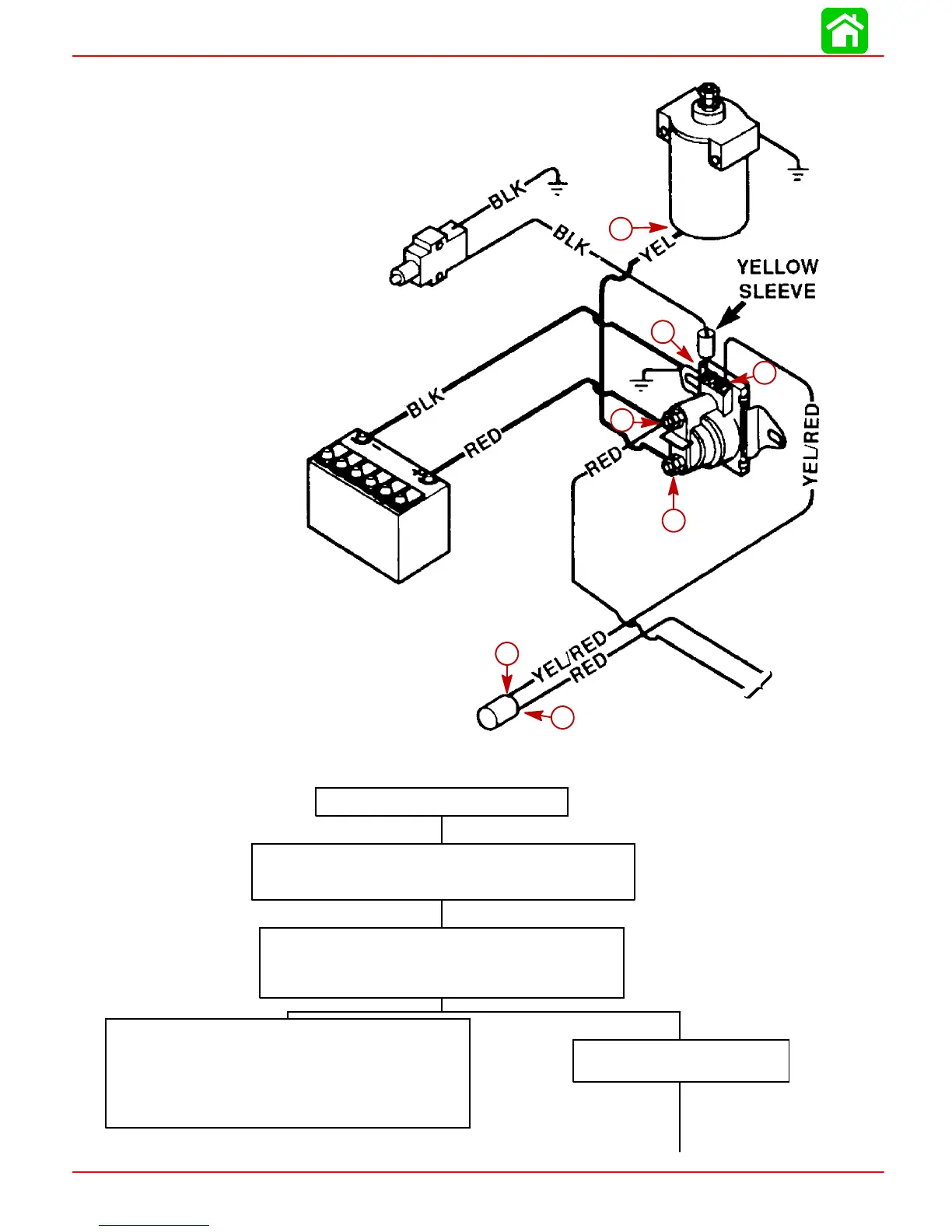

Starting Circuit Troubleshooting Flow Chart
No Continuity Indicated
To Rectifier
53056
7
2
3
1
6
4
5
To Next Page
