Miller OptX 2kW - Plasma Detection; Figure 32 Torch Thermal Fuse and Plasma Sensor

Operating Laser Welder
103
OM-296747A | 4/15/24
The location of the Thermal Fuse is indicated in Figure 32 [▶ 103] (item 1).

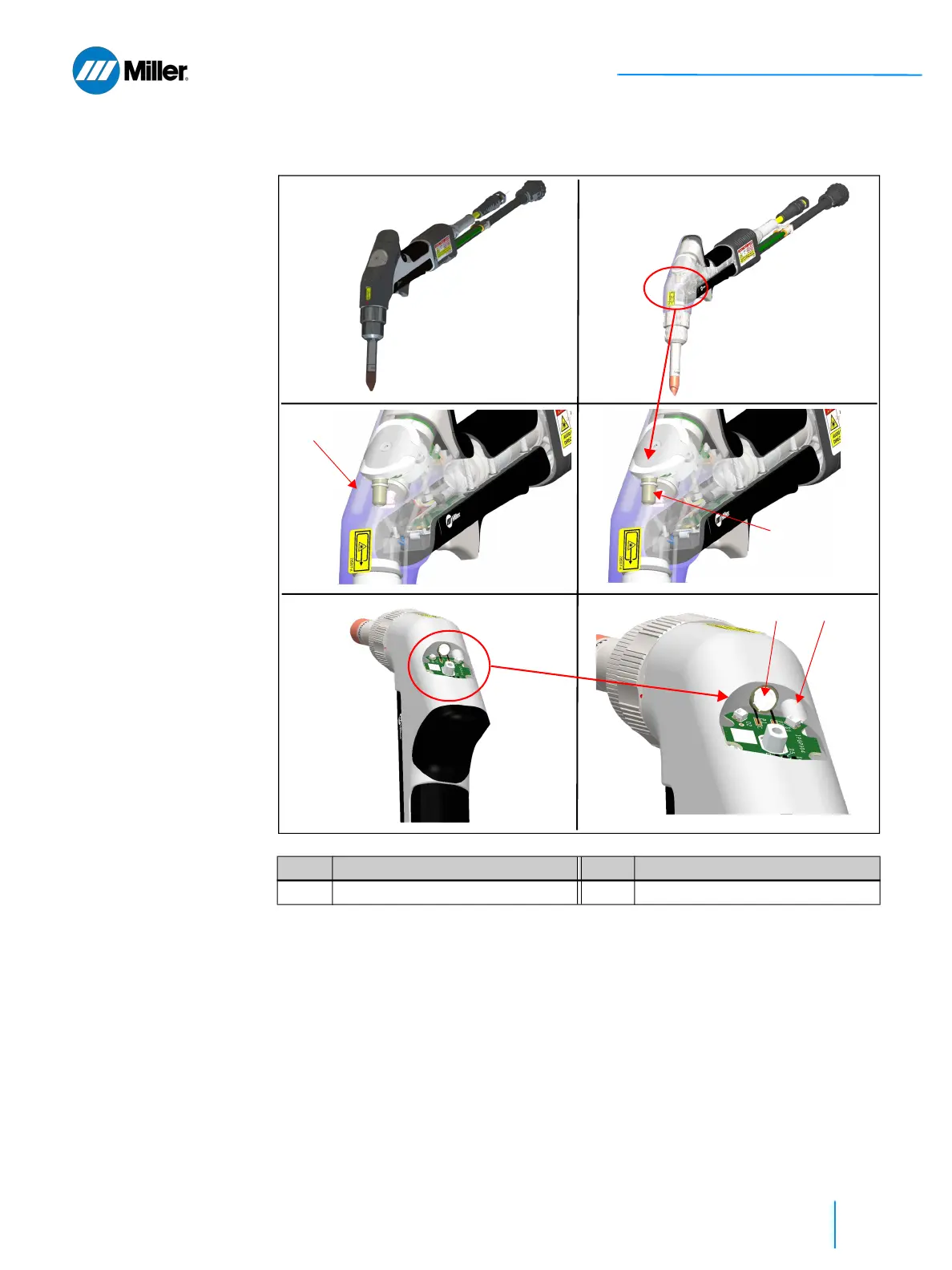

▼Figure 32. Torch Thermal Fuse and Plasma Sensor
7.1.6 Plasma Detection
The handheld torch includes a photo sensor to monitor plasma (the bright visible
light created during welding). If there is not sufficient plasma light created after
the start of a weld, the laser will automatically turn emission off. The location of
the Plasma Sensor is indicated in Figure 32 [▶ 103] (item 2).
Item Designation Item Designation
1 Thermal Fuse 2 Plasma Sensor
①
②
①②
