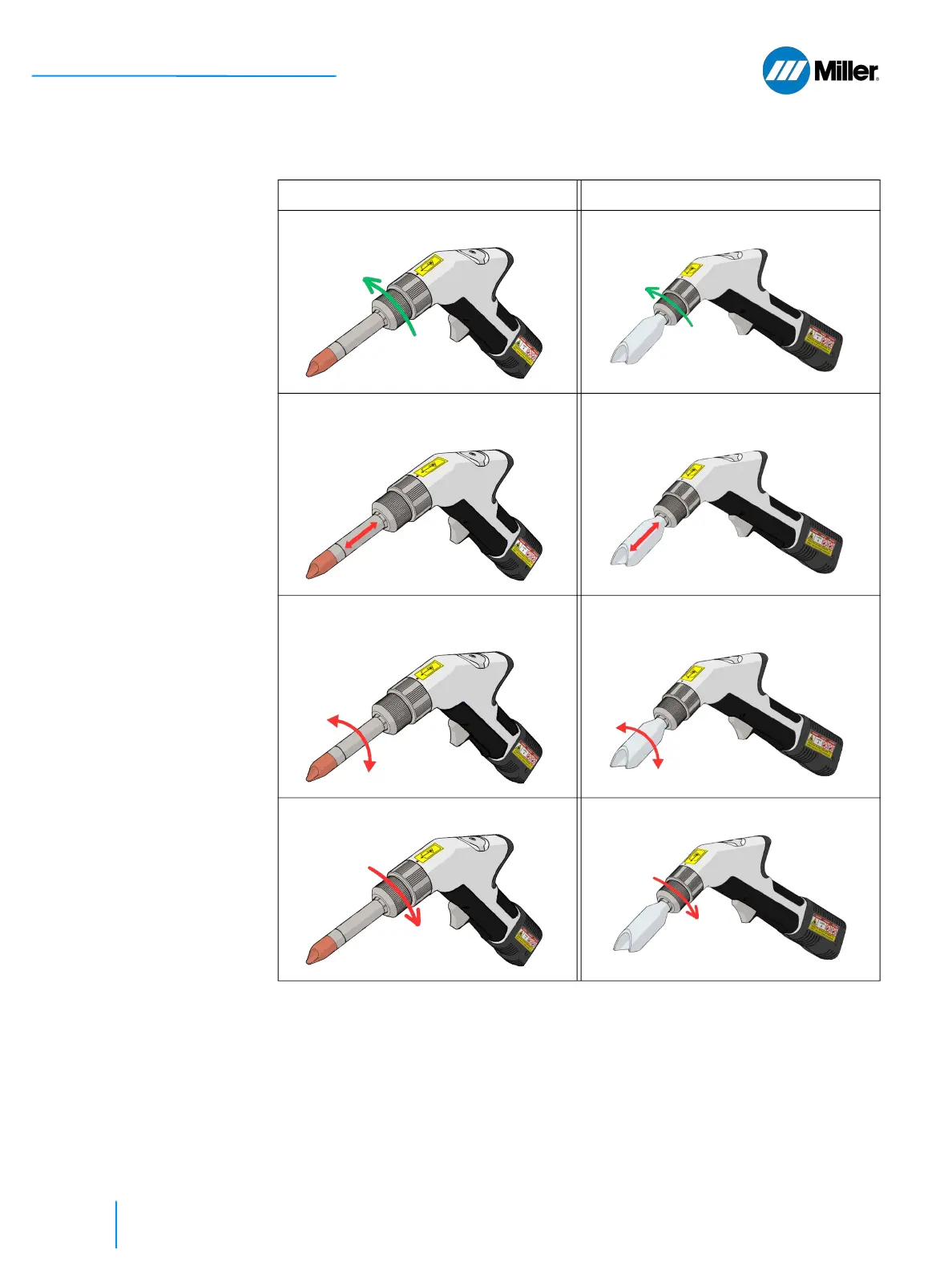

▼Table 27. Changing and/or Adjusting the Torch Nozzle

Welding Nozzle Tip Cleaning Nozzle

1. Loosen nut to unlock nozzle. 1. Loosen nut to unlock nozzle.

2. Pull out the nozzle and insert the new

nozzle.

2. Pull out the nozzle and insert the new

nozzle.

3. Correct the nozzle rotation so tip is

not rotated.

3. Correct the nozzle rotation so tip is

not rotated.

4. Tighten nut to lock nozzle position. 4. Tighten nut to lock nozzle position.
