Miller OptX 2kW - Table 11 Welding and Cleaning Nozzle Selection Chart

To Next Page

To Previous Page

Safety and Compliance Information

OM-296747A | 4/15/24

• Compared to other models, the cleaning nozzles are sized differently due to optical

differences within the torch. Therefore, users with multiple model types should not

mix and match the cleaning nozzles. OptX models must use the OptX cleaning

nozzles.

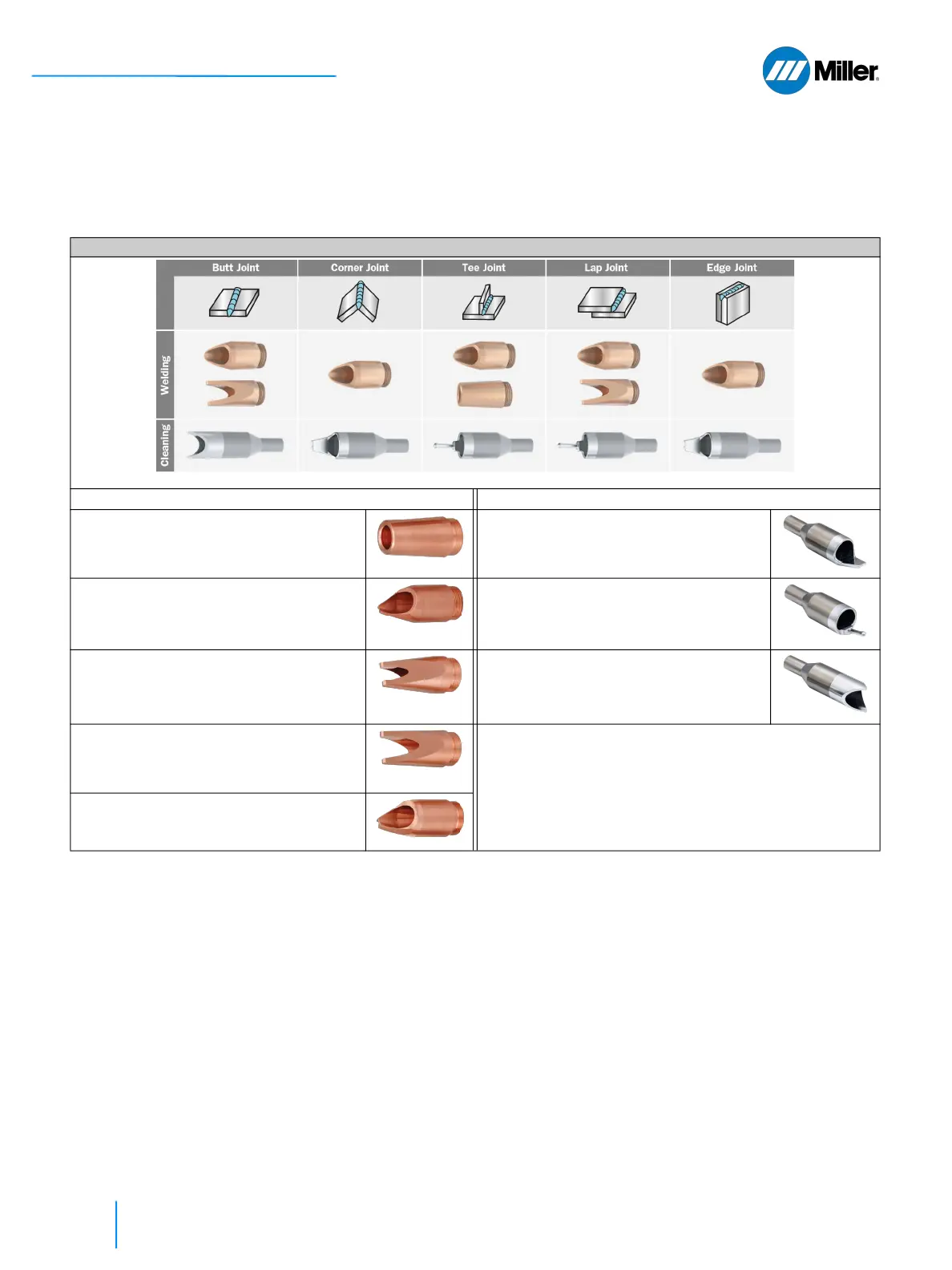

▼Table 11. Welding and Cleaning Nozzle Selection Chart

WELDING AND CLEANING NOZZLE SELECTION

WELDING NOZZLE KIT (#301832) CLEANING NOZZLE KIT (#301833)

Nozzle, OptX, Welding, Conical

#301811

Nozzle, OptX, Cleaning, Outside Corner

#301819

Nozzle, OptX, Welding, 1-Point

#301812

Nozzle, OptX, Cleaning, 1-Point

#301820

Nozzle, OptX, Welding, 2-Point 6mm

#301813

Nozzle, OptX, Cleaning, 2-Point

#301821

Nozzle, OptX, Welding, 2-Point 9mm

#301814

Nozzle, OptX, Welding, Wire Feed

#301815
