Miller OptX 2kW - Installing Welding Device; Precautions; Figure 14 Connecting the Equipment

To Next Page

To Previous Page

Installing Welding Device

OM-296747A | 4/15/24

5 Installing Welding Device

5.1 Precautions

Personnel Qualifications: Maintenance Personnel and Electrician (see section 1.4

[▶19]).

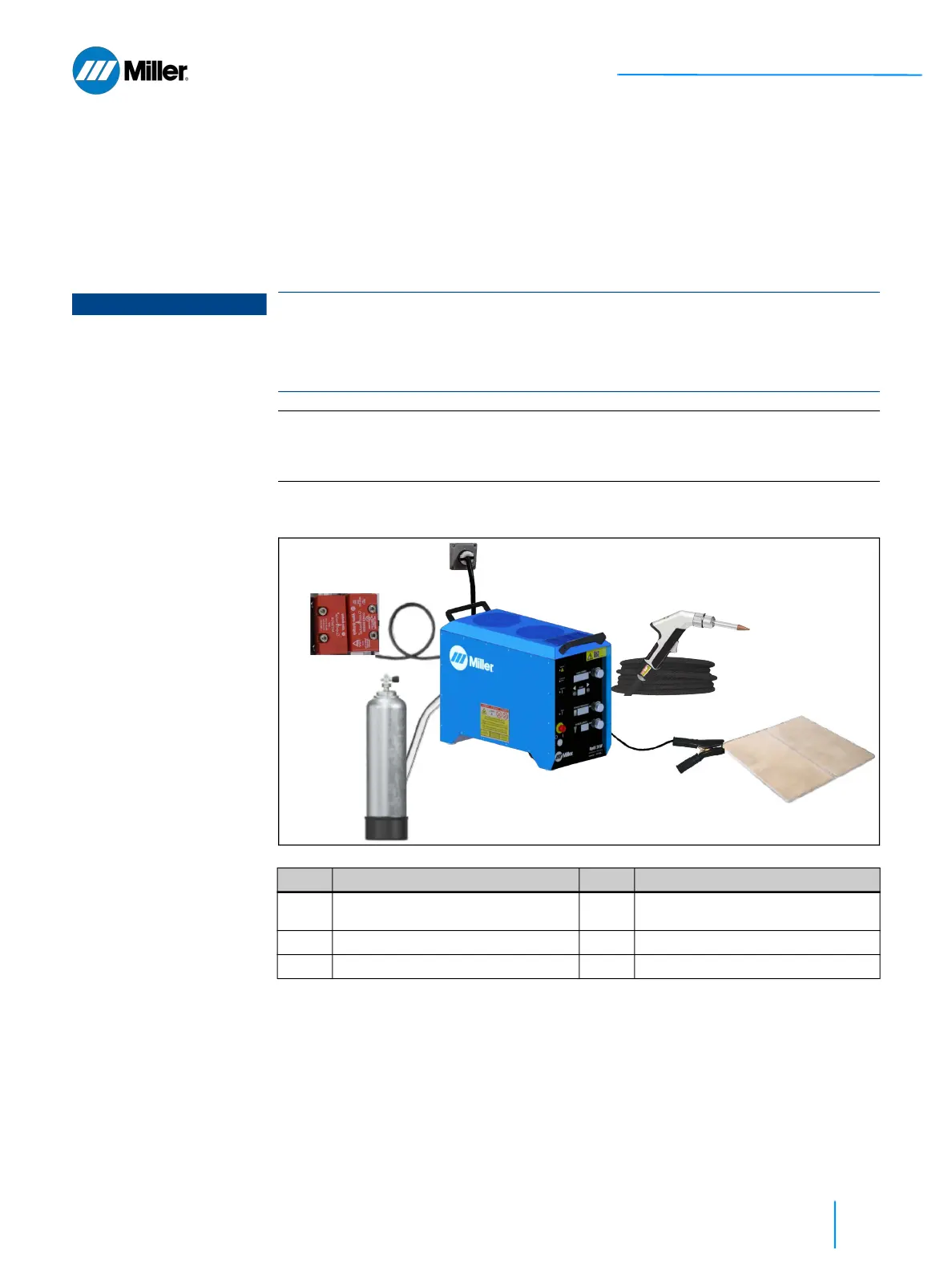

▼Figure 14. Connecting the Equipment

NOTICE

Incorrect voltage and wiring can damage the welder system.

Ensure the voltage and wiring is correct prior to turning ON the power.

 Refer to the specification for proper electrical power requirements.

 Ensure that the incoming voltage is equal to the level noted in the specification.

IMPORTANT

Airflow capacity

Operate only in an environment with sufficient airflow capacity that allows for the

specified heat load developed during operation.

Item Designation Item Designation

Laser Light and Gas Controls. Umbil-

ical is 10 meters.

2 Work Sense Clamp Cable

3 Weld Gas 4 Environment Safety Interlocks

5 208-240 VAC -- --

②

①

③

④

⑤
