Miller OptX 2kW - Figure 3 Label Placement - Device Panels and Torch

Safety and Compliance Information
39
OM-296747A | 4/15/24

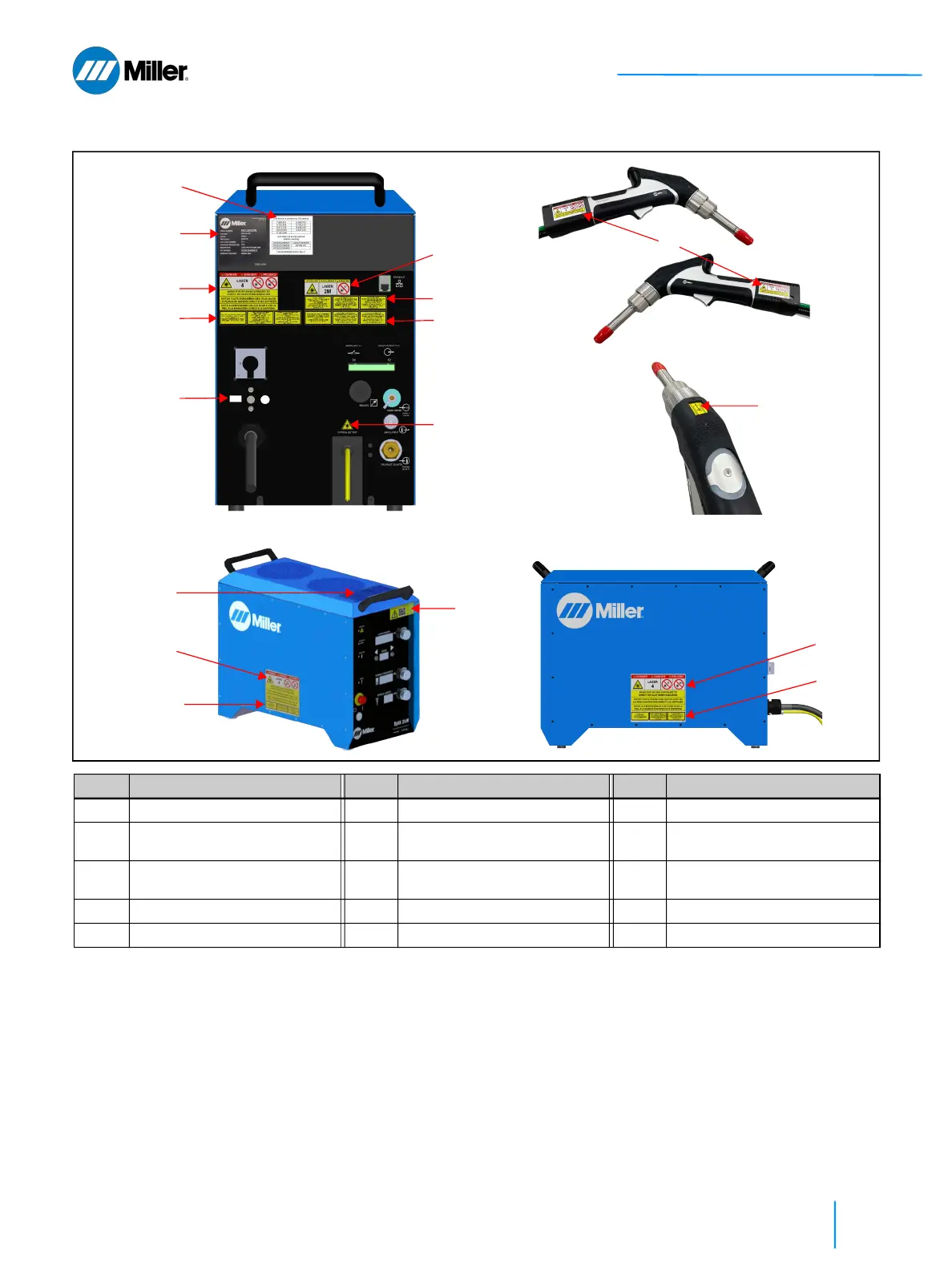

▼Figure 3. Label Placement — Device Panels and Torch
②
①
⑪
⑨
⑧
⑥
⑤
⑦
⑫
⑬
⑭
④
⑨
④
④
③
⑩
⏚
PE
Item Designation Item Designation Item Designation
1 Identification Plate Label 2 Laser Radiation Hazard Label 3 Aperture Label (Laser Torch)
4
Primary Laser
1
- Laser Class
Label (Device)
5
Guide Laser
2
- Laser Class Label
(Device)
6
Primary Laser - Class 4 Informa-
tion Label
7
Red Guide Laser - Class 2M
Information and Warning Label
8 FDA Certification Label 9 When Panel Open Label
10 Laser Class Label (Laser Torch) 11 Protective Conductor Terminal 12 Safety Label - QR Code
13 Patent List Label 14 Welding Safety Label -- --
1.
The primary laser is the main fiber laser in the device and is used for material processing during welding (or cleaning)
operation. The IR laser output is invisible.
2.
The visible output from the red guide laser is used by the Operator of the device to position the torch nozzle onto
the part being processed prior to starting the laser welding (or cleaning) operation.
