Safety and Compliance Information
38
OM-296747A | 4/15/24

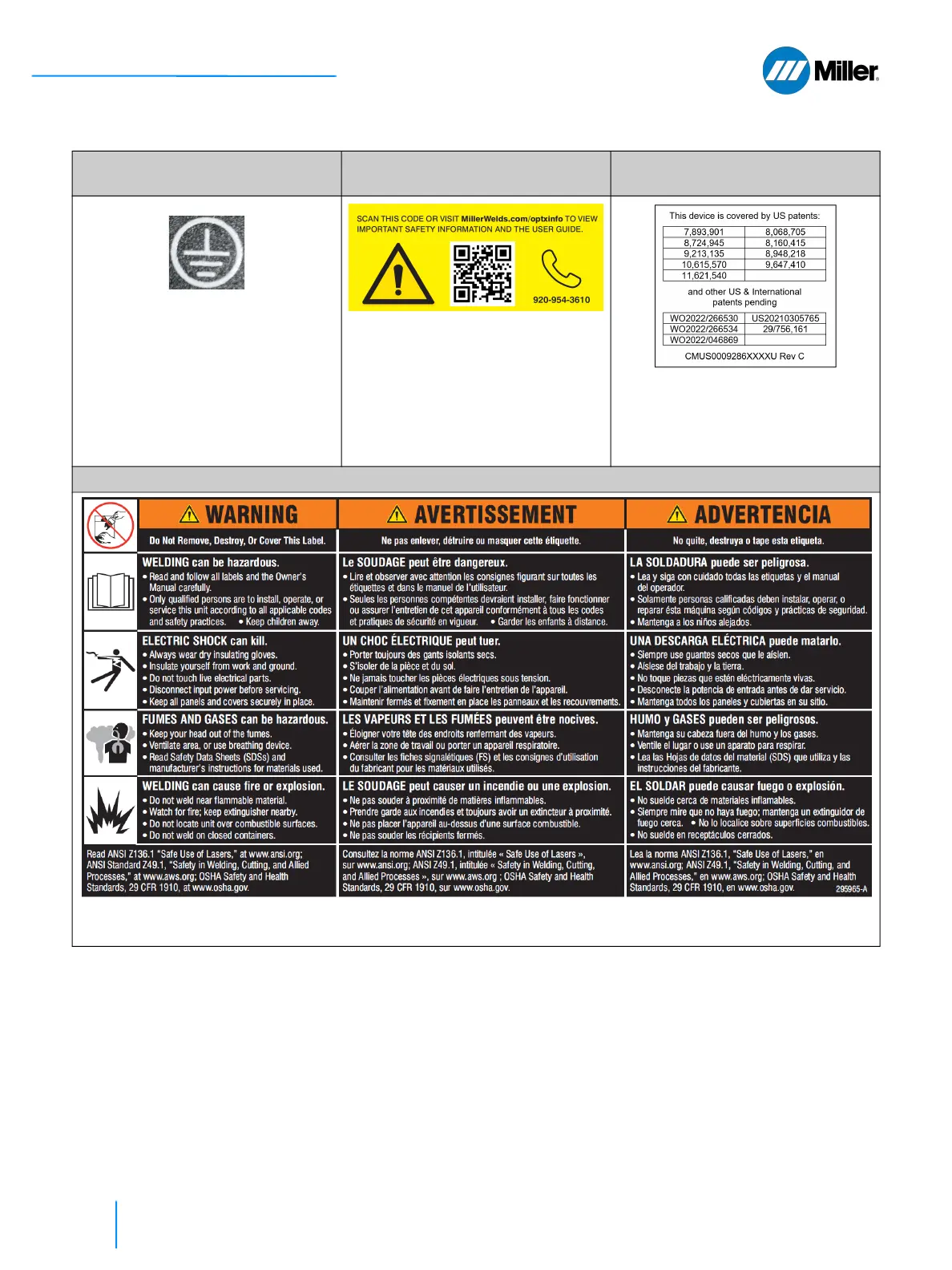

11. Protective Conductor
Terminal
12. Safety Label - QR Code 13. Patent List Label
This symbol is specifically reserved
for the PROTECTIVE CONDUCTOR
TERMINAL and no other. This is
placed at the device earthing point
and is mandatory for all grounded
equipment. Located on rear panel
below AC power switch. See Figure
3 [▶ 39].
Scan QR code to access online
product safety content, Owner’s
Manual, etc. Label also specifies the
support phone number. Label is
located on top right corner of front
panel. See Figure 3 [▶ 39].
List of patents that are applicable to
this device. Label is located next to
the identification label on the rear
panel. See Figure 3 [▶ 39].
14. Welding Safety Label
Warning label that specifies welding related hazards. It is located on the top of the device. This label is specified
in English, French and Spanish. See Figure 3 [▶ 39].
▼Table 9. Safety Label Description and Location (Continued)
