The table below shows the webpage recipe configuration panels for each laser

mode of operation.

▼Table 32. Effects of Power Compensation Setting

Example Power

Setpoint in Recipe

Power

Compensation

Setting

Power used at the

center of the weld

Power used at the

edges of the weld

1000 W 0% (Default) 1000 W 1000 W

1000 W 40% 1000 W 600 W

1000 W 100% 1000 W 0 W

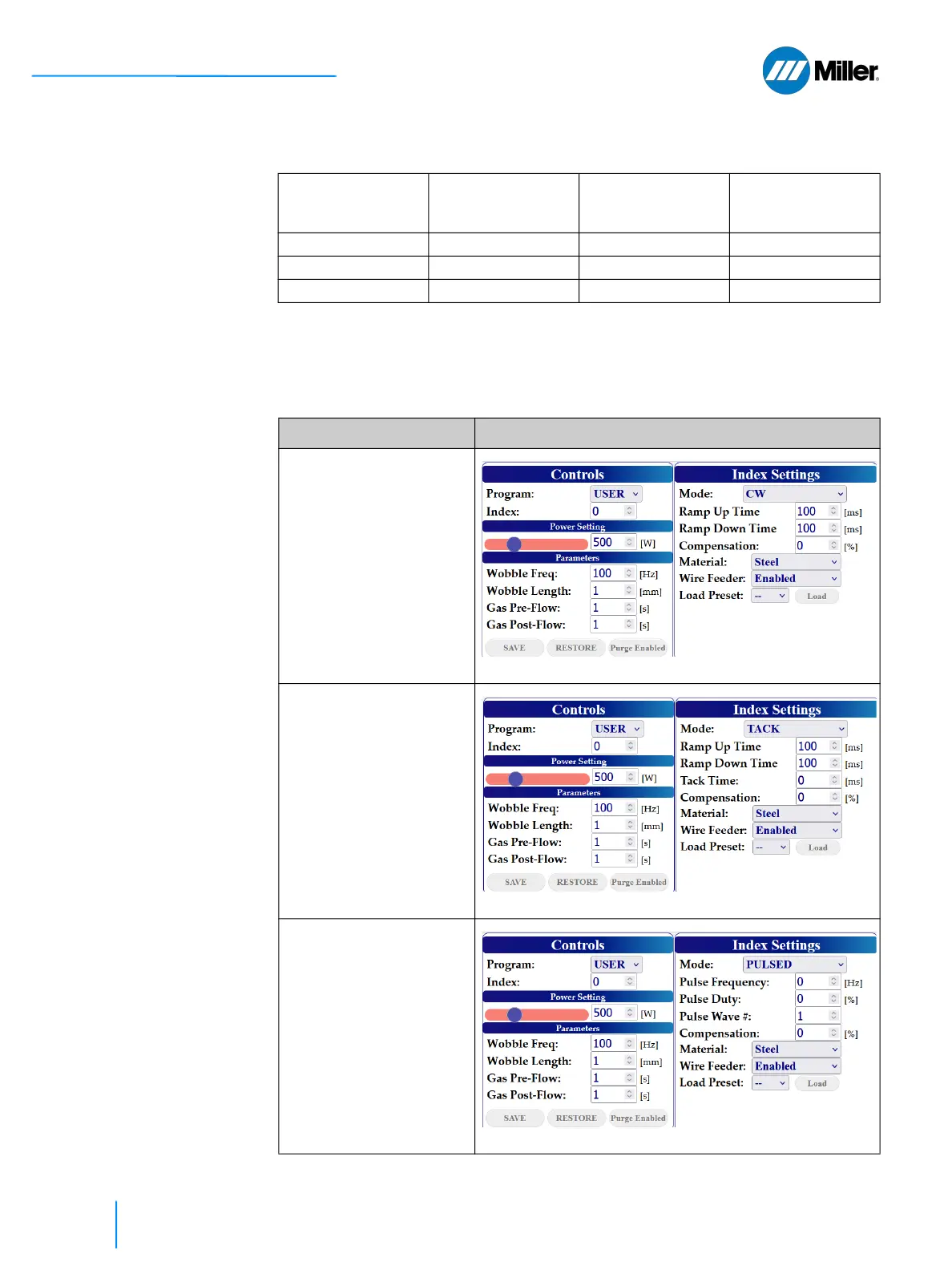

▼Table 33. User Mode Recipe Configuration for Each Laser Mode

Laser Mode User Mode Recipe Configuration

TACK

PULSED

Main Page
