Program Recipes and Parameters
124
OM-296747A | 4/15/24

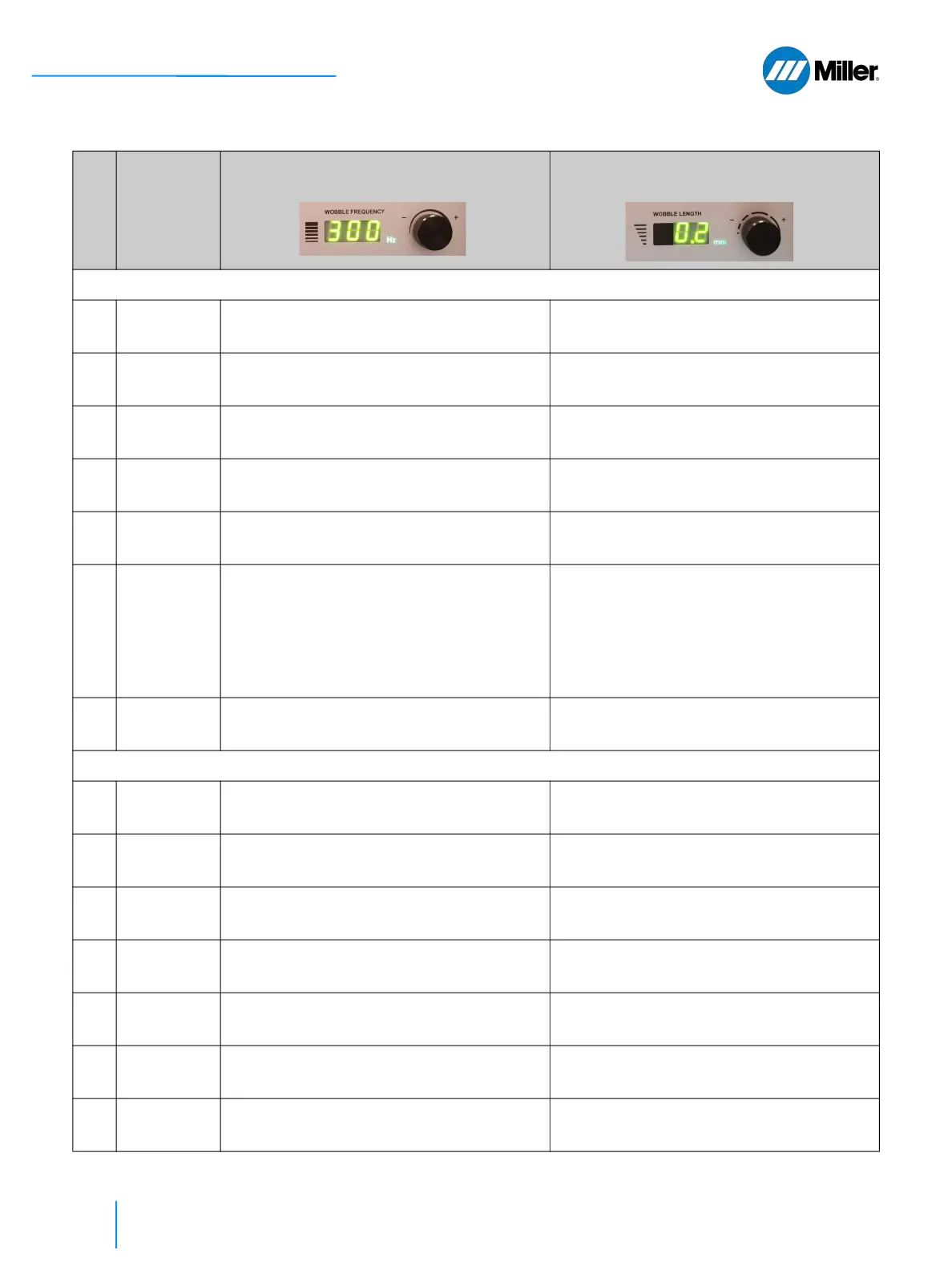

▼Table 29. Front Panel Knob Adjustment Range vs Recipe Setting
# Laser Mode Parameter Adjusted by Knob
Wobble Frequency
Parameter Adjusted by Knob
Wobble Length
PRESET MODE
0 CW Wobble Frequency
Adjustment Range: +/- 90
Wobble Length
Adjustment Range: +/- 9
1 Stitch Laser On Time
Adjustment Range: 0 - 35 s
Laser Off Time
Adjustment Range: 0 - 35 s
2 Pulsed Pulse Frequency
Adjustment Range: +/- 90
Wobble Length
Adjustment Range: +/- 9
3 HPP Pulse Duty
Adjustment Range: +/- 90
Wobble Length
Adjustment Range: +/- 9
4 Tack Tack Time
Adjustment Range: +/- 90
Wobble Length
Adjustment Range: +/- 9
5 Clean Wobble Frequency
Adjustment Range: NONE
Required frequency automatically
calculated based on set wobble length. This
knob is disabled. Display will show “0” for
this control.
Wobble Length
Adjustment Range: 0 - 15 mm
6 Adv Stitch Laser On Time
Adjustment Range: 0 - 35 s
Laser Off Time
Adjustment Range: 0 - 35 s
USER MODE
0 CW Wobble Frequency
Adjustment Range: 0 to 300 Hz
Wobble Length
Adjustment Range: 0 to 5 mm
1 Stitch Laser On Time
Adjustment Range: 0 - 35 s
Laser Off Time
Adjustment Range: 0 - 35 s
2 Pulsed Pulse Frequency
Adjustment Range: 0 to 500 Hz
Wobble Length
Adjustment Range: 0 to 5 mm
3 HPP Pulse Duty
Adjustment Range: 0 to 20%
Wobble Length
Adjustment Range: 0 to 5 mm
4 Tack Tack Time
Adjustment Range: 0 to 3.5 s
Wobble Length
Adjustment Range: 0 to 5 mm
5 Clean Wobble Frequency
Adjustment Range: 0 - 300 Hz
Wobble Length
Adjustment Range: 0 - 15 mm
6 Adv Stitch Laser On Time
Adjustment Range: 0 - 35 s
Laser Off Time
Adjustment Range: 0 - 35 s
