Computer Connection to Device
142
OM-296747A | 4/15/24

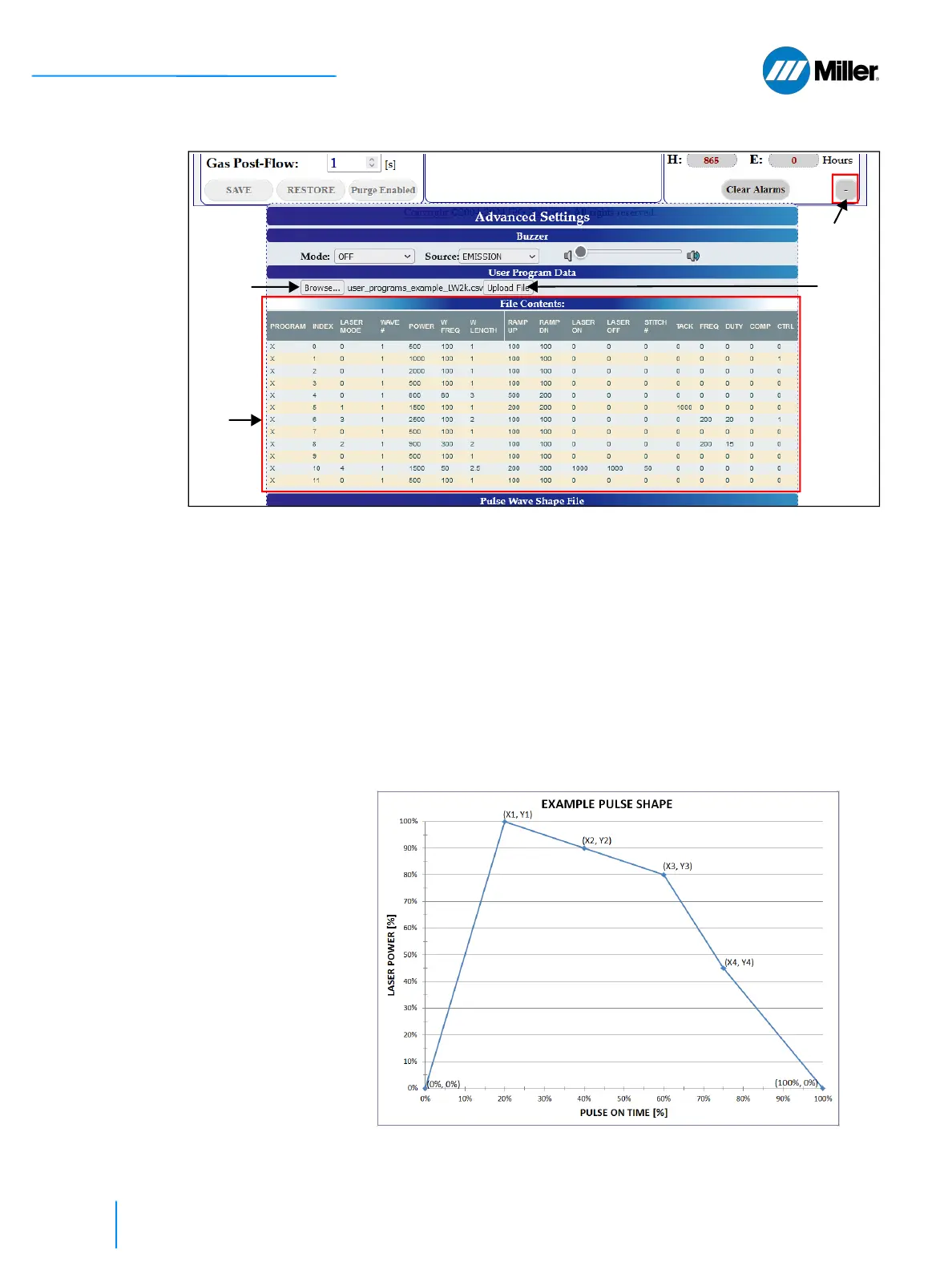

▼Figure 54. Advanced Feature - Uploading User Program Data
9.9 Pulse Shape Generation - Advanced
Settings
Users can generate up to ten unique pulse shapes that can be selected by the pulse
wave number (programs using PULSED, HPP or ADV STITCH laser mode). Each
pulse shape consists of six points - four unique points, plus the starting point, and
the ending point. These points are defined in percentage units, with the x-axis
being percentage of pulse on time (calculated from the set frequency and duty
cycle for HPP and PULSED mode), and the y-axis being percentage of set laser
power. The figure below provides an example pulse shape generated from six
points.
▼Figure 55. Example Pulse Shape
②
③
①
④
To Next Page
