6.3.2 Upgrade Method
66..33..22..11 Upgrading the Printer Bracket Assembly

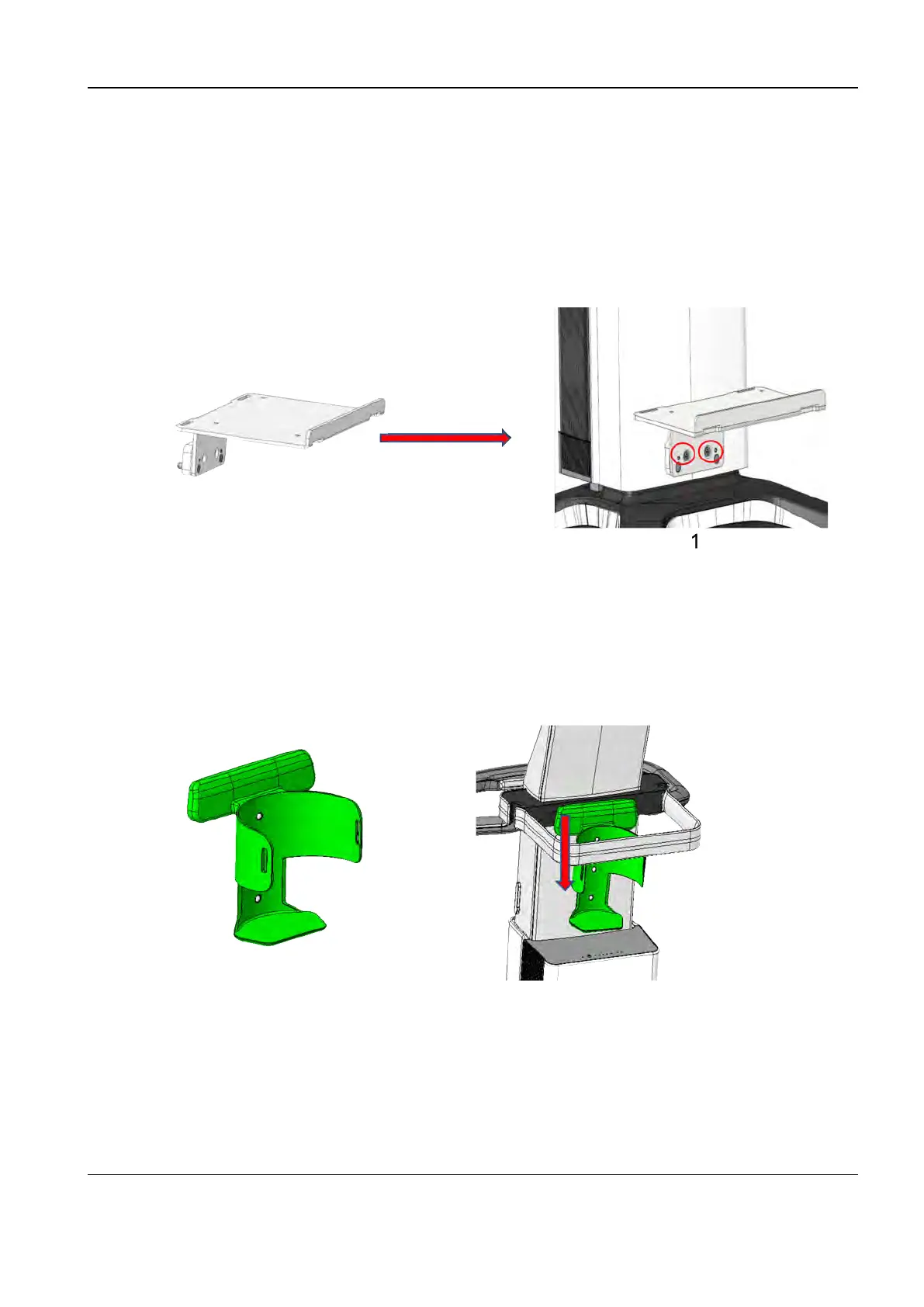

Align the printer support with the mounting holes at the bottom of the trolley, and use a Phillips
screwdriver to mount two M5X25 stainless steel cross countersunk head screws to mount the
Printer Bracket Assembly on the trolley.
1 Two M5X25 stainless steel cross countersunk head screws
66..33..22..22 Upgrading the Towelette Holder Assembly
Hold two sides of the Towelette Holder Assembly, and press along the arrow direction to mount
the Towelette Holder Assembly to the trolley.
66..33..22..33 Upgrading the Storage Box
Hold two sides of the storage box, align the storage box with the two positioning points on the
hook decoration cover, and press along the arrow direction to mount the storage box.
