Revision:1.0(2023-01-12)
195
7.2 Display Assembly (FRU)
7.2.1 General Information
FRU Code FRU Name Lower-Level FRU
Code
Lower-Level FRU
Name

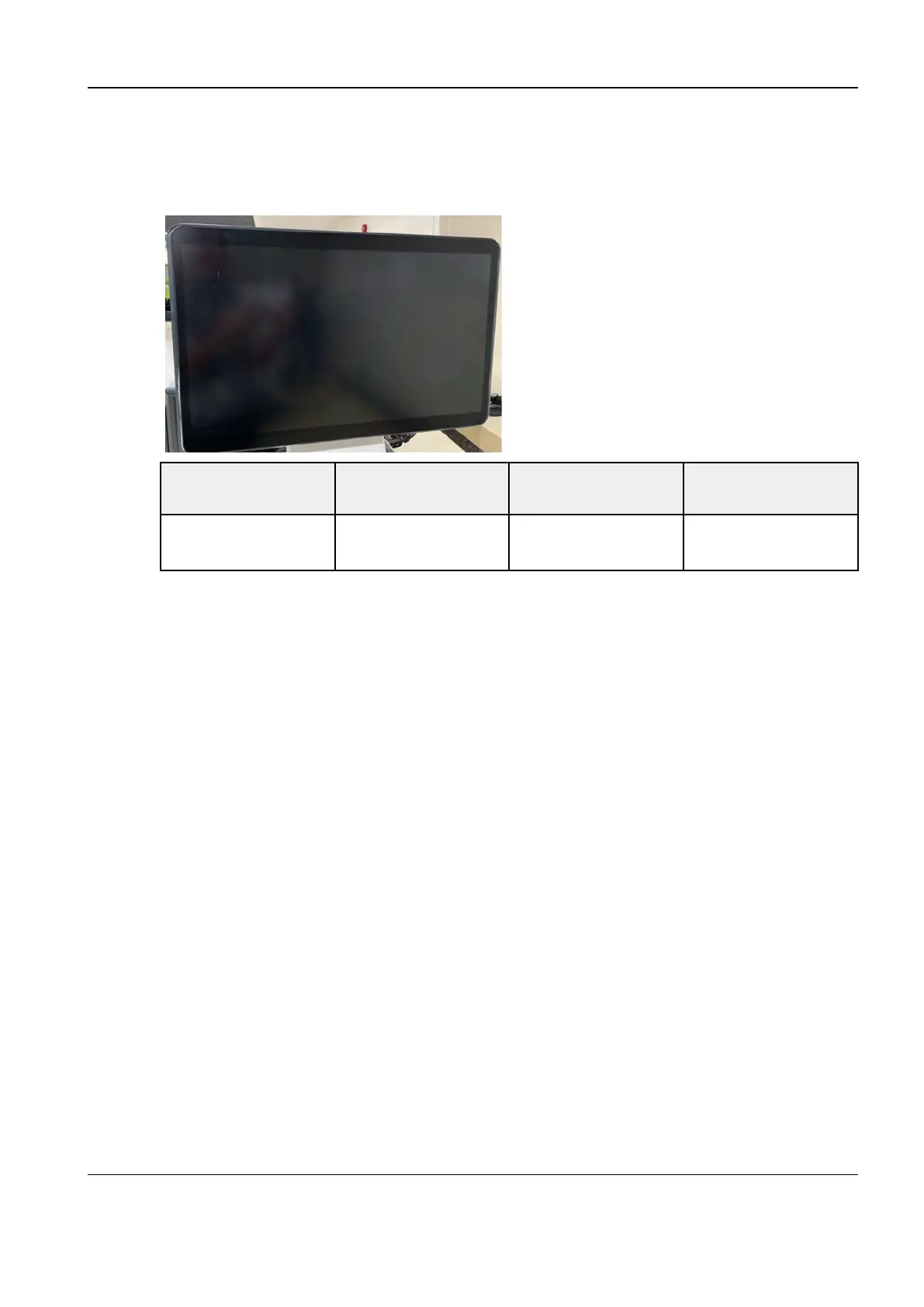

115-083574-00 Display Assembly
(FRU)
Function description:
The display includes the display and touch functions, respectively responding to the image display
and touch actions.
7.2.2 Disassembly and Assembly
Precautions
Protect the exterior surface of the parts.
Tools Required
/
Fixtures Required
None
Specific Steps
1. Stand before the display face to face, put your hands at the unlocking lever position, and pull
the unlocking lever outward with two hands.
2. After the unlocking lever is pulled to the bottom, lift up the display to remove it.
Diagnostic Ultrasound System
Service Manual
7 FRU Replacement
