7.50 Battery (FRU)
7.50.1 General Information
FRU Code FRU Name Lower-Level FRU
Code
Lower-Level FRU
Name

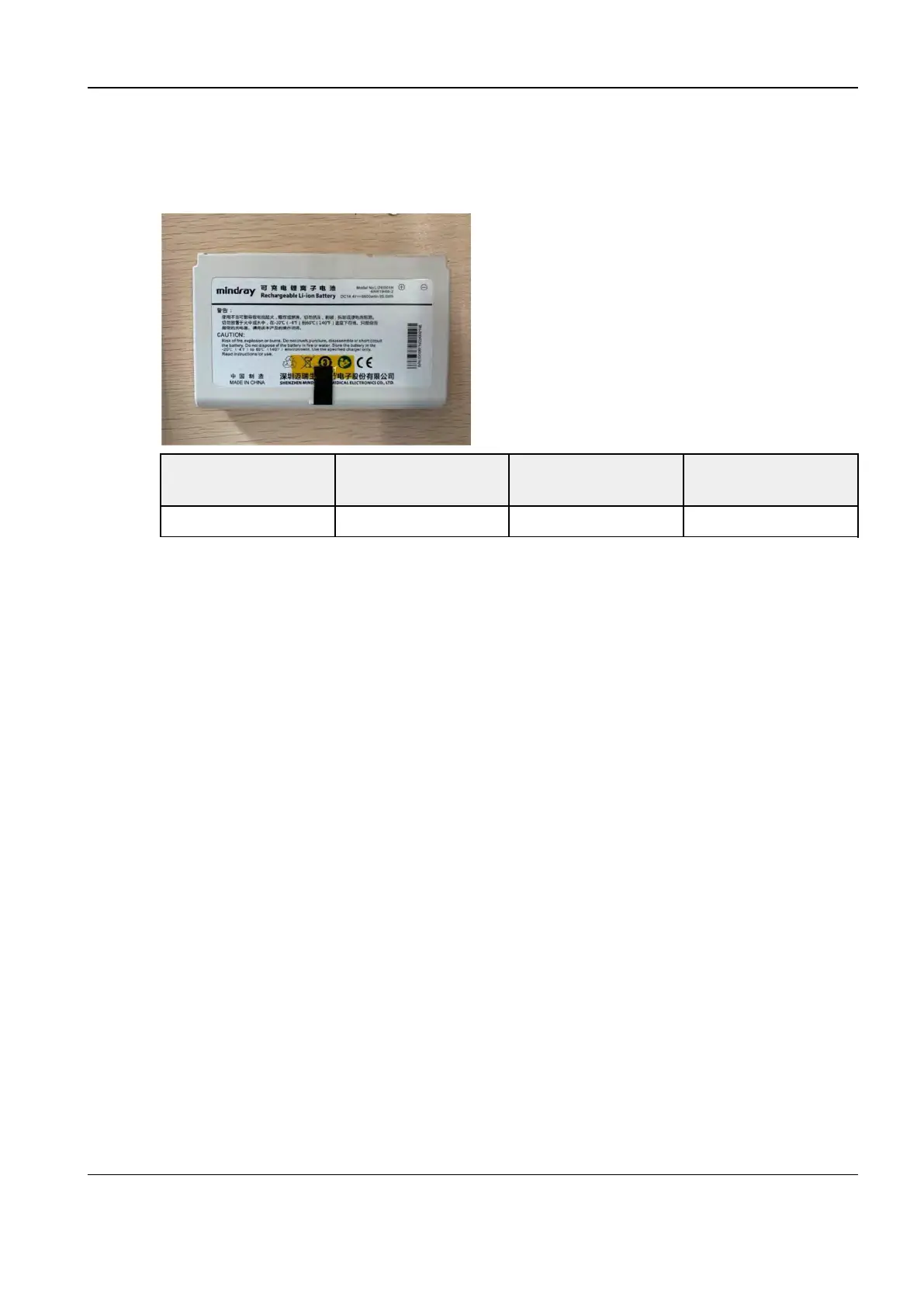

115-068005-00 Battery (FRU)
Function description:
It provides batteries to power the main unit.
7.50.2 Disassembly and Assembly
Precautions
Protect the exterior surface of the parts.
Tools Required
None
Fixtures Required
None
Specific Steps
1. Refer to the disassembly procedure in 7.47.2 Disassembly and Assembly to take off the Battery
Box cover.
2. Push back the black buttons of the doors on two sides. The doors are opened and you can take
off the battery.
