7.54 Charging Pile module (FRU)
7.54.1 General Information
FRU Code FRU Name Lower-Level FRU
Code
Lower-Level FRU
Name

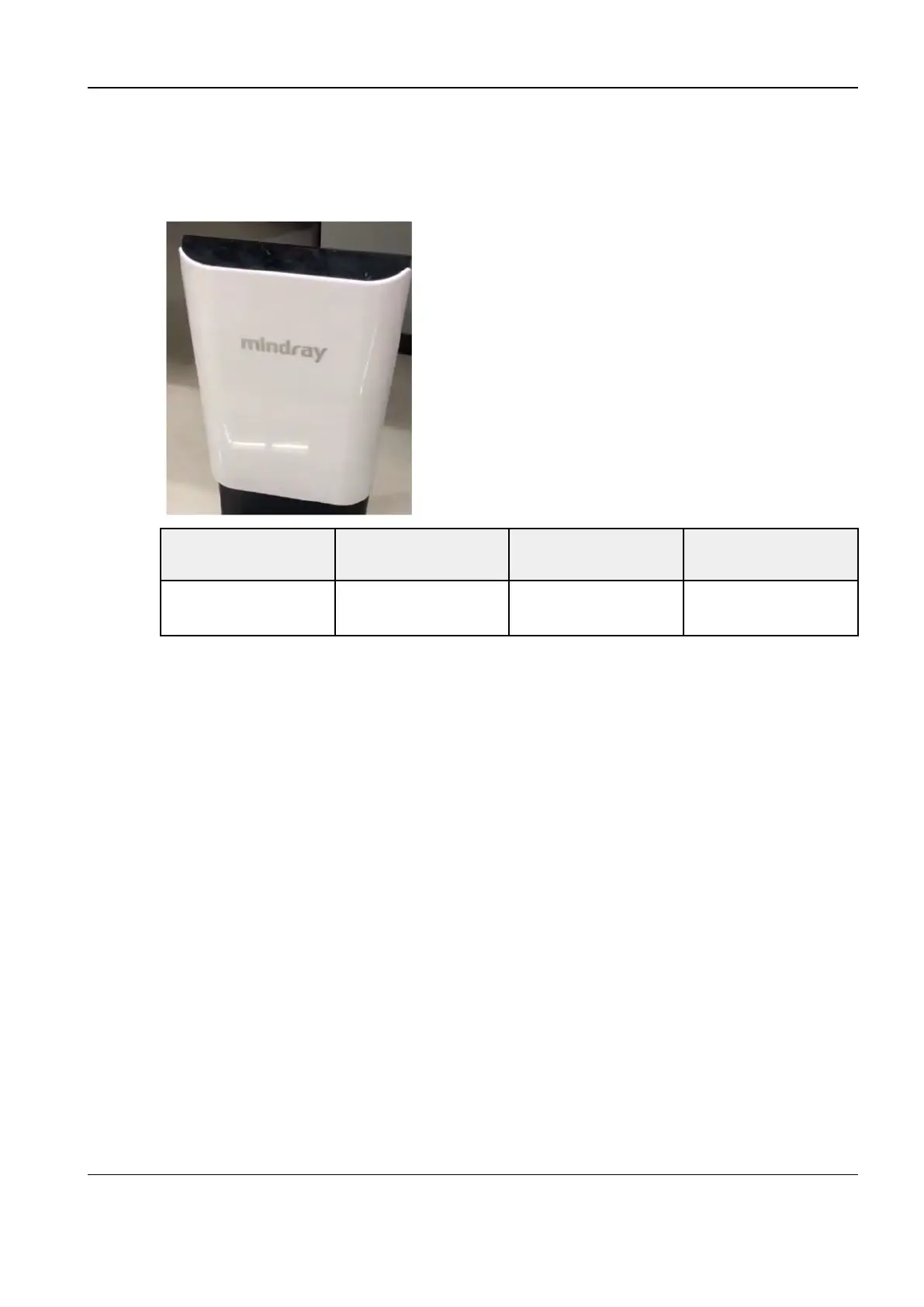

115-083625-00 Charging Pile module
(FRU)
Function description:
It provides wireless charging for the trolley.
7.54.2 Disassembly and Assembly
Precautions
Protect the exterior surface of the parts.
Tools Required
Crosshead screwdriver and flathead screwdriver
Fixtures Required
None
Specific Steps
1. Turn the Charging pile module(China) (with base) to face back the operator; buckle out the
screw rubber plug on the rear of the Charging pile module(China), and then remove the two
screws.
Diagnostic Ultrasound System
Service Manual
7 FRU Replacement
To Next Page
