7.17 Main Unit Dual Fans (FRU)
7.17.1 General Information
FRU Code FRU Name Lower-Level FRU
Code
Lower-Level FRU
Name

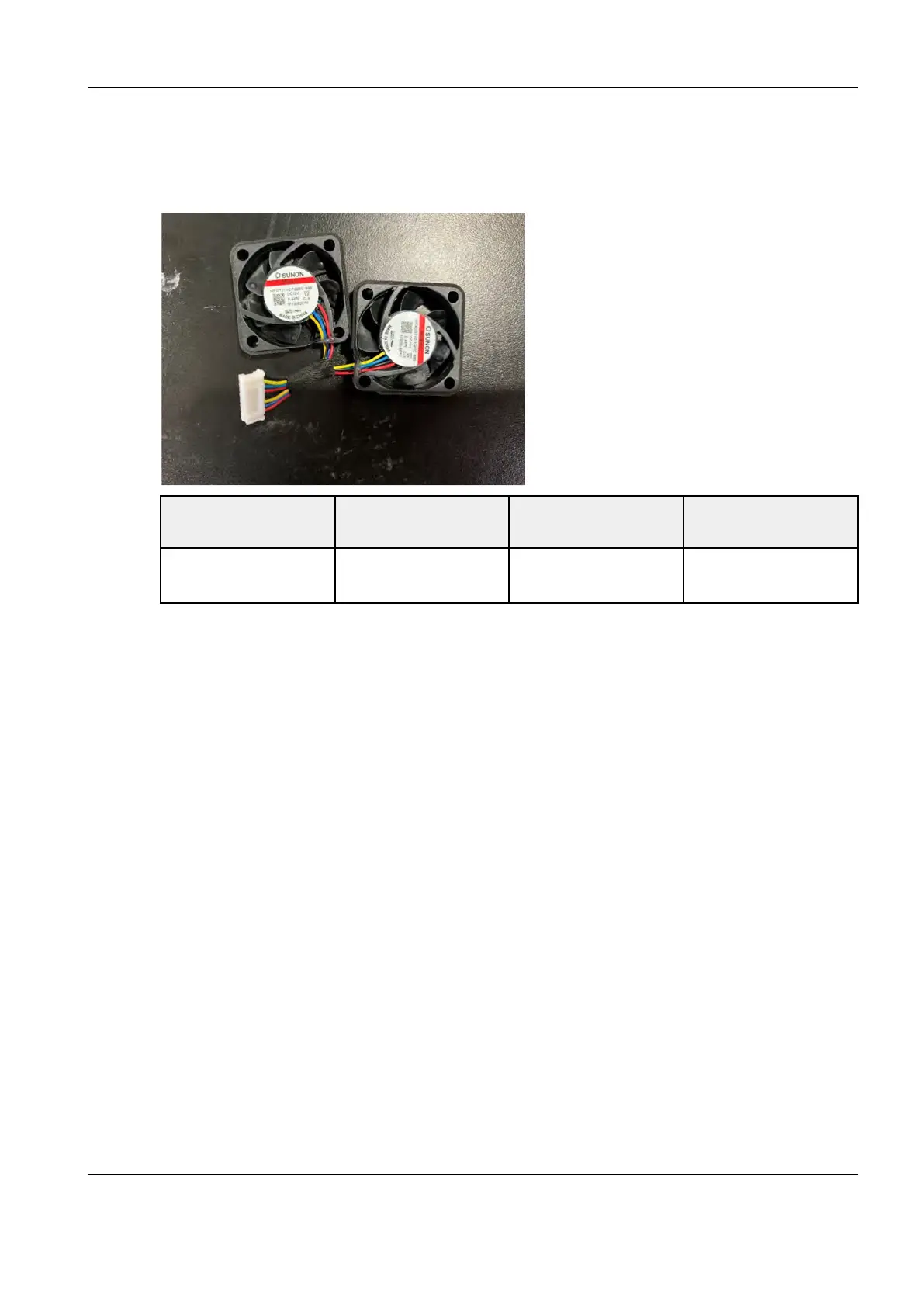

115-083588-00 Main Unit Dual Fans
(FRU)
Function description:
It is used for heat dissipation in a machine.
7.17.2 Disassembly and Assembly
Precautions
None
Tools Required
Anti-static gloves
Fixtures Required
None
Specific Steps
1. Refer to the disassembly procedures in 7.7.2 Disassembly and Assembly and 7.4.2 Disassembly
and Assembly
to take off the cover of the main board box and the display lift.
2. Remove the cable connecting the Main Unit Dual Fans and the main board, and take off the
two Main Unit Dual Fans.
