Revision:1.0(2023-01-12)
296
FRU Code FRU Name Lower-Level FRU
Code
Lower-Level FRU
Name
115-083640-00 Wi-fi antenna (User)
Function description:
It transmits and receives wireless signals.
7.60.2 Disassembly and Assembly
Precautions
None
Tools Required
None
Fixtures Required
None
Specific Steps
1. Refer to the disassembly procedures in 7.20.2 Disassembly and Assembly and 7.15.2
Disassembly and Assembly to take off the main unit back cover and the cover of the module.

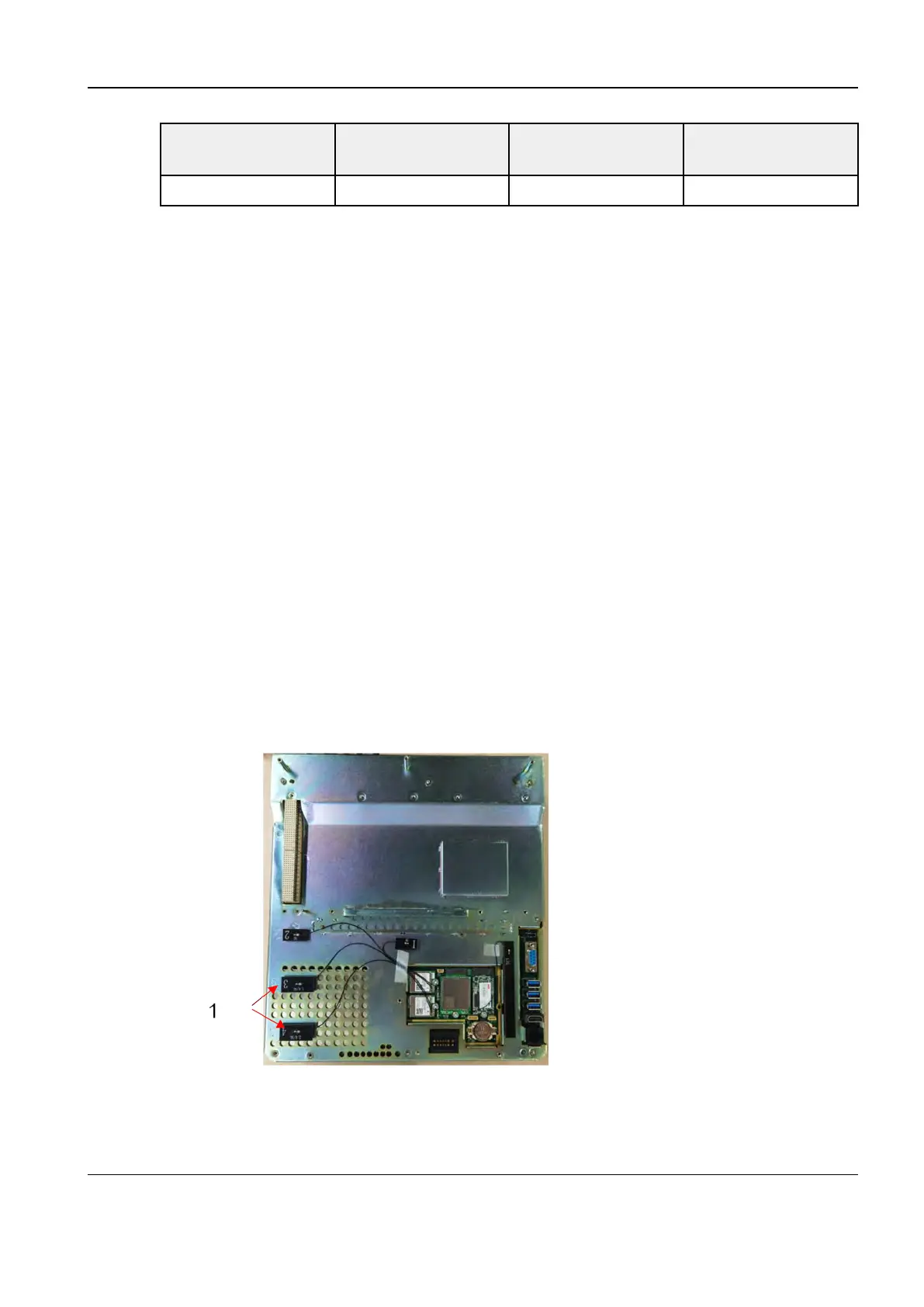

2. Remove the Wi-fi antenna(User) of No.3 and No.4.
1 Wi-fi antenna(User)
Diagnostic Ultrasound System
Service Manual
7 FRU Replacement
