7.30 Back Cover for Yoke

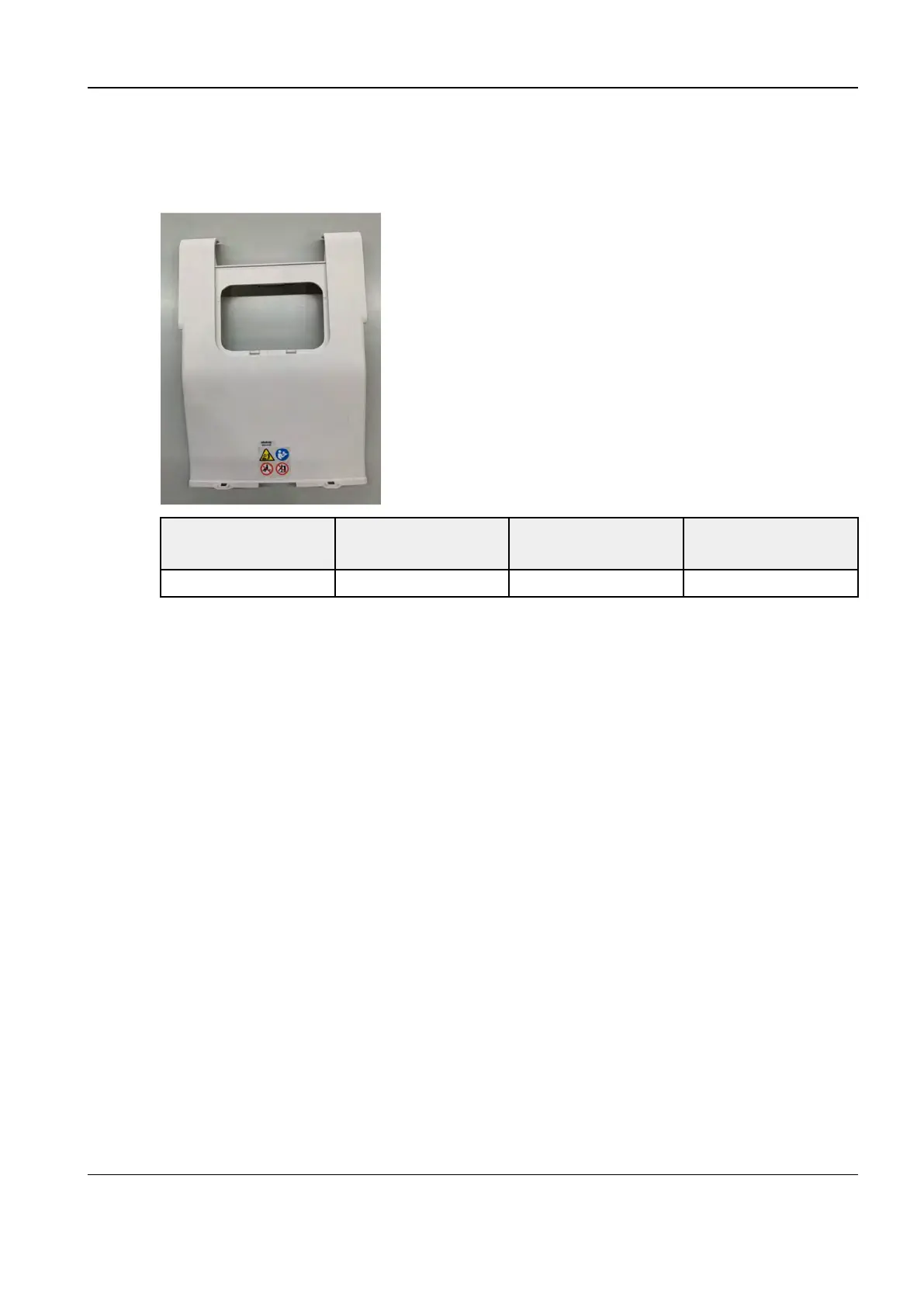

7.30.1 General Information
FRU Code FRU Name Lower-Level FRU
Code
Lower-Level FRU
Name
043-013030-00 Back Cover for Yoke
7.30.2 Disassembly and Assembly
Precautions
Protect the exterior surface of the parts.
Tools Required
Art knife, crosshead screwdriver (M4), and flathead screwdriver
Fixtures Required
None
Specific Steps
1. Refer to the disassembly procedures in 7.2.2 Disassembly and Assembly and the section of
removing the main unit box to take off the display and the main unit box.
2. Refer to the disassembly procedure in 7.22.2
Disassembly and Assembly to remove the hook
decoration cover.
