Revision:1.0(2023-01-12)
208
1. Refer to the disassembly procedures in 7.2.2 Disassembly and Assembly, 7.7.2 Disassembly and
Assembly
, 7.4.2 Disassembly and Assembly, and 7.3.2 Disassembly and Assembly to remove the
main unit front cover, Display Rotatory Assy(With conversion board), and speaker.

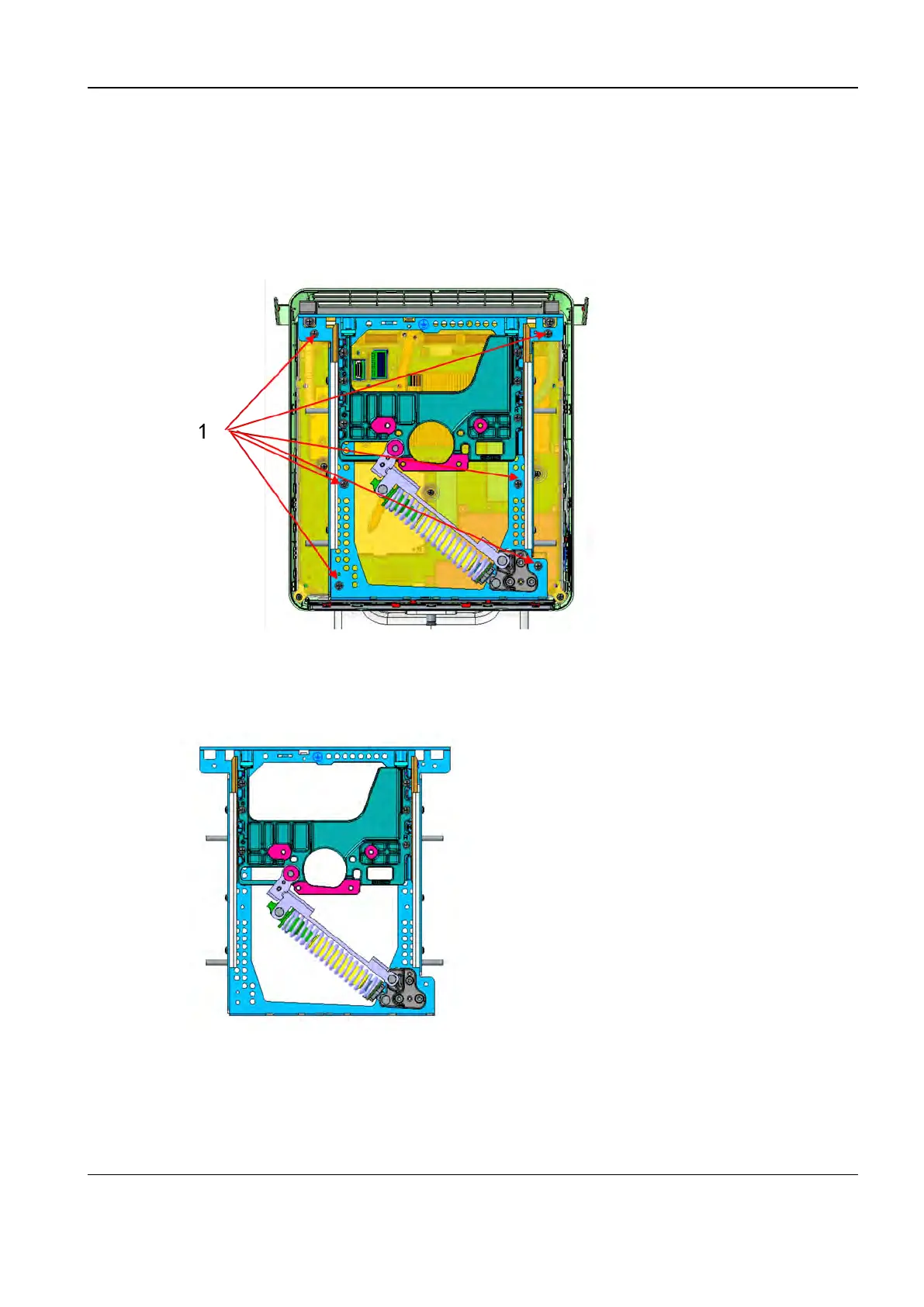

2. Remove the six Phillips pan-head screws of the slide assembly and take off the display slide
assembly.
1 Six Phillips pan-head screws (M4)
3. The following figure shows the display slide assembly that is taken off.
7.8.3 Commissioning and Verification
None
Diagnostic Ultrasound System
Service Manual
7 FRU Replacement
