Revision:1.0(2023-01-12)
57
2.3.9 UI Unit

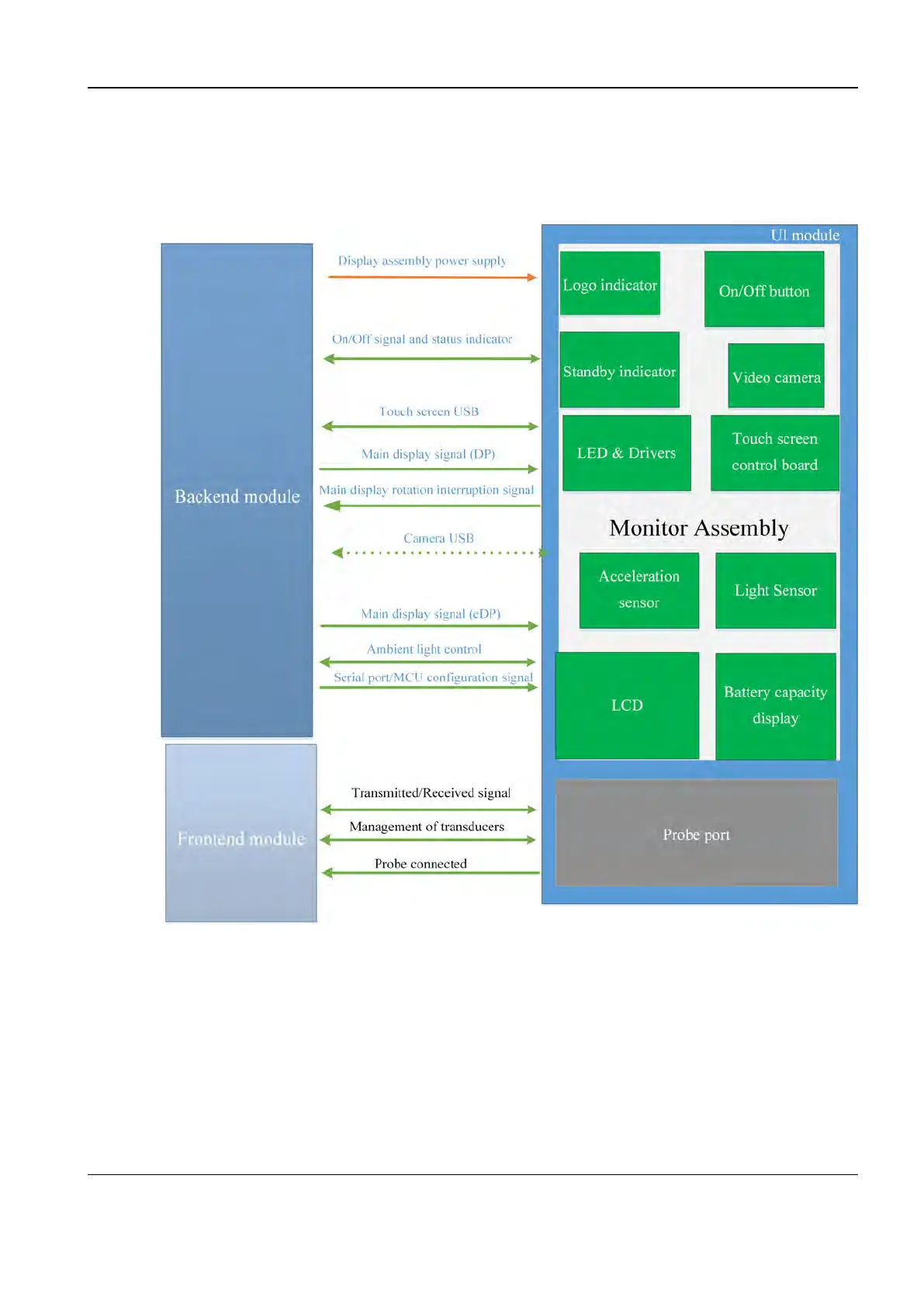

22..33..99..11 Block Diagram of the UI Unit
According to ID design, TEX has no control panel, and the user interaction operations are all
concentrated on the rotatable display assembly with the touch function.
The display assembly contains the touch screen, main display, ambient optical sensor, on/off
button, standby state indicator, gravity sensor, logo indicator, and battery capacity display. The
assembly mainly displays ultrasound images and some other information such as the battery
capacity, and supports display rotation.
The UI unit interacts with users and consists of the following modules:
• Main display: It shows ultrasound images and related parameters, and completes user
interaction by using the touch function.
Diagnostic Ultrasound System
Service Manual
2 Product Knowledge
