FRU Code FRU Name Lower-Level FRU
Code
Lower-Level FRU
Name
115-083586-00 SSD Card(FRU)
Function description:
It loads the operating system and Doppler software and stores patient information.
7.15.2 Disassembly and Assembly
Precautions
None
Tools Required
Anti-static gloves
Crosshead screwdriver (M3)
Fixtures Required
None
Specific Steps
1. Refer to the disassembly procedure in 7.20.2 Disassembly and Assembly to take off the main
unit back cover and middle frame of the main unit, without removing the main unit front cover.

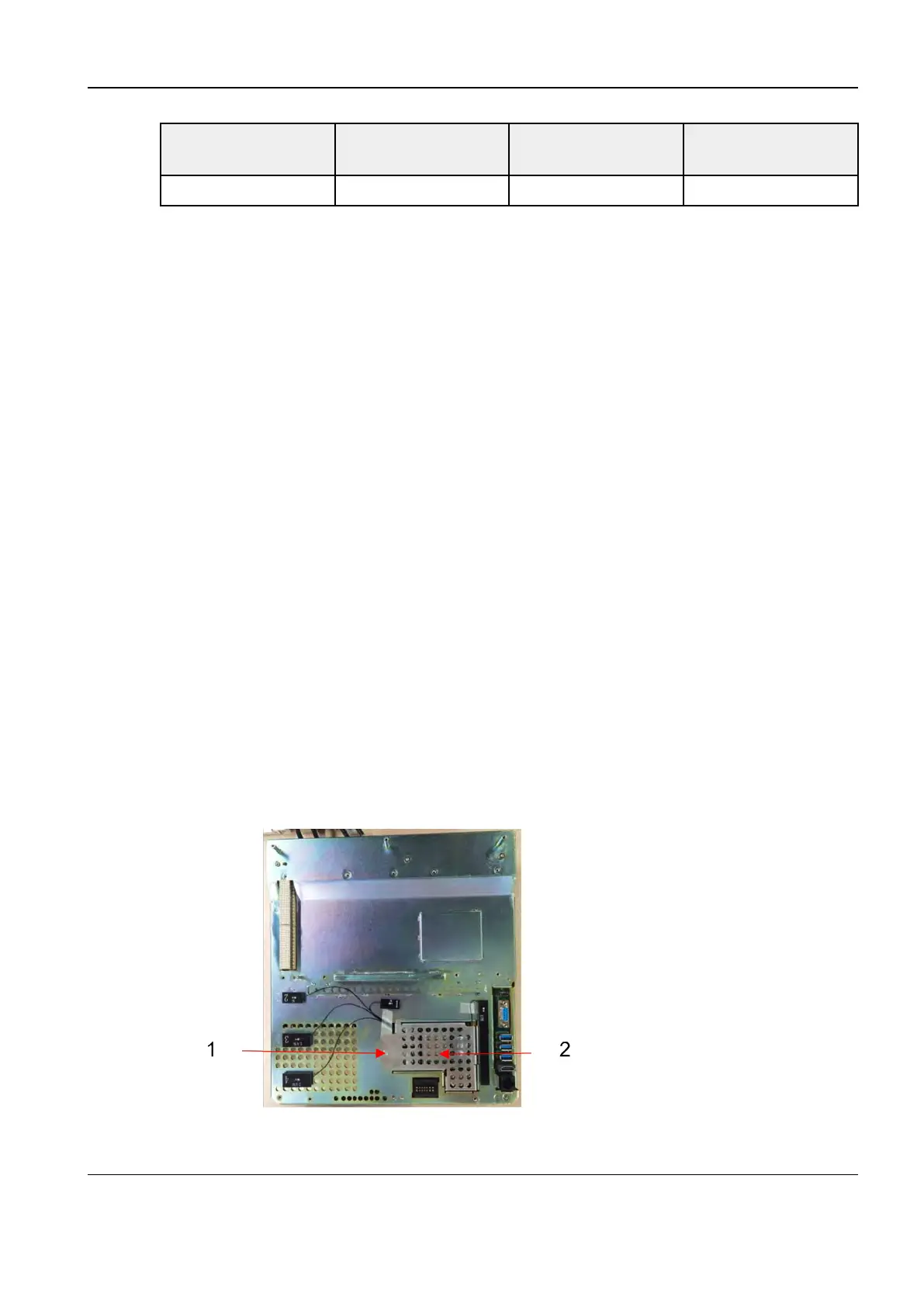

2. Remove the one flathead screw that connects the cover of the module to take off the cover of
the module, and remove the one crosshead screw that fixes the SSD card to take off the SSD
card.
Diagnostic Ultrasound System
Service Manual
7 FRU Replacement
