Mindray TEX20 Service Manual

Revision:1.0(2023-01-12)
228
Function description:
It is used for heat dissipation in a machine.
7.18.2 Disassembly and Assembly
Precautions
None
Tools Required
Anti-static gloves
Fixtures Required
None
Specific Steps
1. Refer to the disassembly procedures in 7.7.2 Disassembly and Assembly and 7.4.2 Disassembly
and Assembly
to take off the cover of the main board box and the display lift.
2. Remove the cable connecting the Main Unit Single Fan(FRU) and the main board, and take off
the Main Unit Single Fan(FRU).
7.18.3 Commissioning and Verification
None
7.19 Dustproof Filter (FRU)

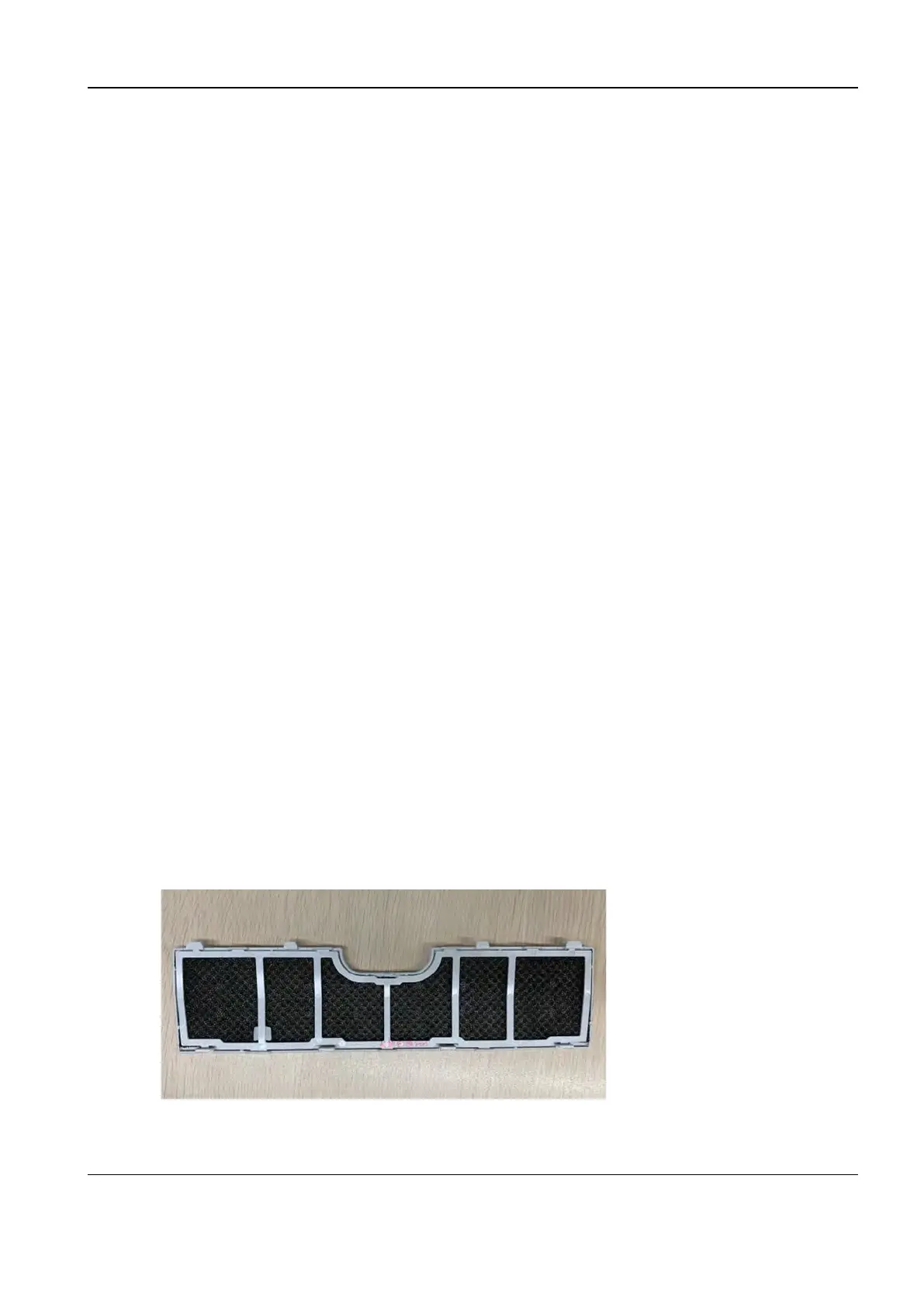

7.19.1 General Information
Diagnostic Ultrasound System
Service Manual
7 FRU Replacement
