7.24 Upper Handle Cover

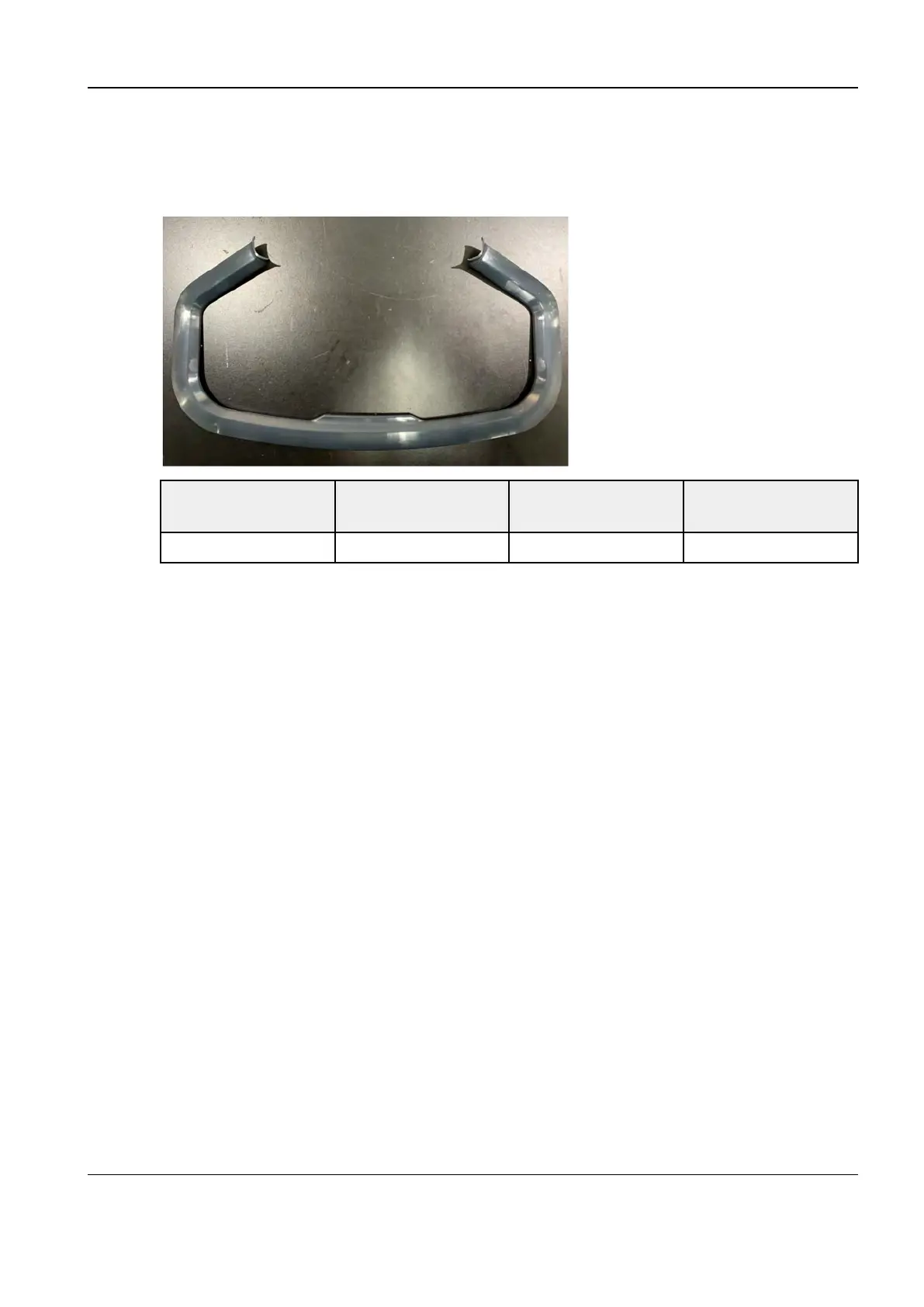

7.24.1 General Information
FRU Code FRU Name Lower-Level FRU
Code
Lower-Level FRU
Name
043-013027-00 Upper Handle Cover
7.24.2 Disassembly and Assembly
Precautions
Protect the exterior surface of the parts.
Tools Required
Art knife, crosshead screwdriver (M3\M4), flatheaded screwdriver, and socket head wrench (M5)
Fixtures Required
None
Specific Steps
1. Refer to the disassembly procedures in 7.2.2 Disassembly and Assembly, the section of
removing the main unit box, 7.22.2
Disassembly and Assembly, and 7.23.2 Disassembly and
Assembly
, and take off each assembly.
2. Use a crosshead screwdriver to remove the six M3×12 crosshead screws that connect the
upper handle cover.
Diagnostic Ultrasound System
Service Manual
7 FRU Replacement
