Revision:1.0(2023-01-12)
80
3.2.5 Checking Unpacked Items
Take out the packing list from the packing box and check the unpacked items against the packing
list. If any parts or accessories on the packing list are absent, contact the Mindray branch or
headquarters promptly and take pictures as evidence.
3.3 Transporting the Main Unit
3.3.1 Transporting the Unpacked Main Unit
• Transport in a car
The total of the TEX main unit, display, and trolley is at least 1207 mm high, 566 mm wide, and
at least 518mm deep, with the total weight of 60 kg. Note the following requirements when you
transport the main unit in a car:
1. The trunk or other location reserved for the main unit in the car must be larger than the
minimum size of the main unit.
2. Before moving the main unit into the car, remove the probes from the main unit and place them
in a safe place.
3. Push down the trolley's handle and move down the display to minimize the main unit height.
4. The trolley needs to be lifted to the car by 2–4 people, who support the left and right sides of
the trolley base, keeping the handle vertical to the ground.

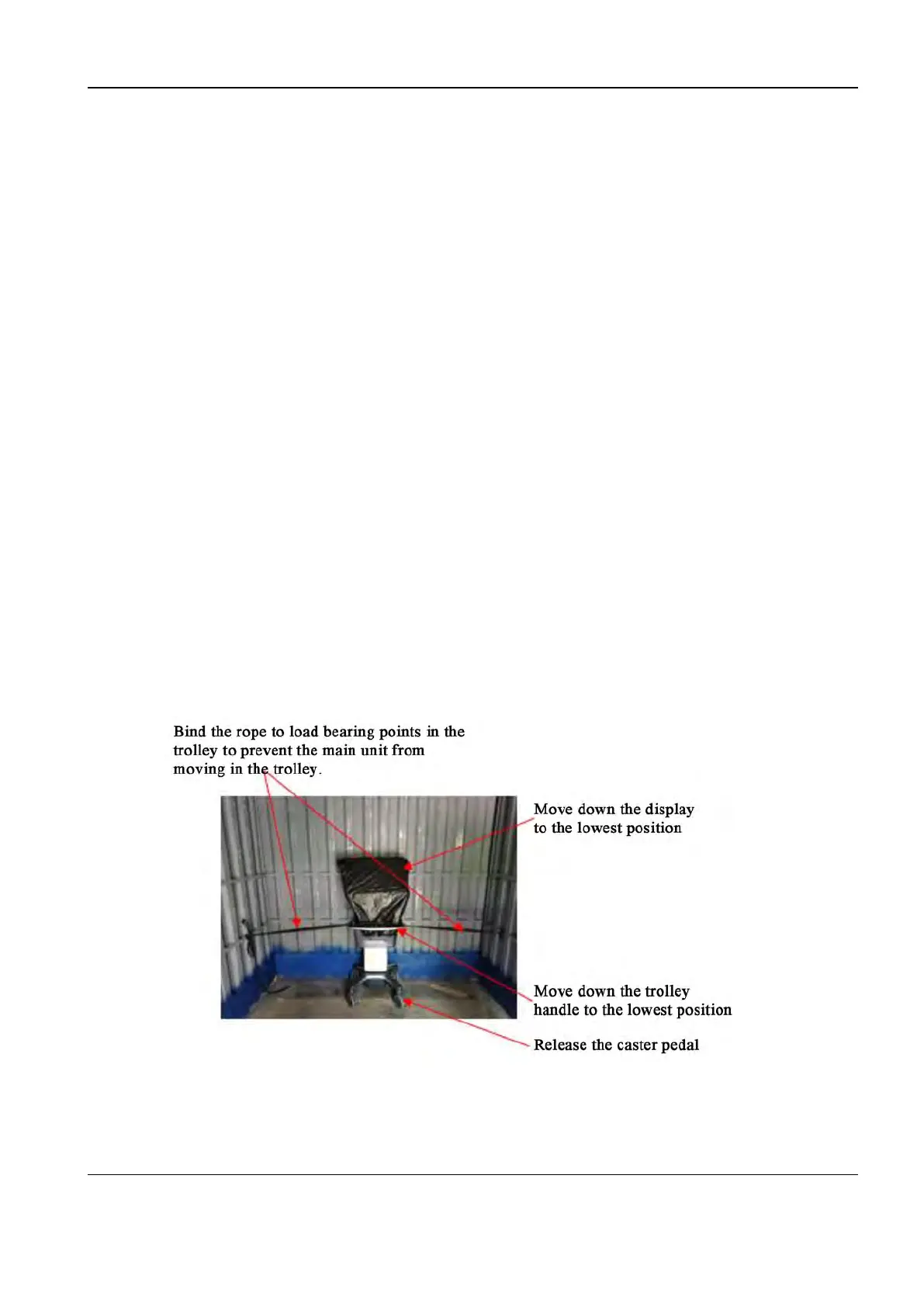

5. Secure the main unit in the car with ropes or other materials. Do not lock the casters with the
brake pedal, as doing so may damage the gears inside the casters.
Diagnostic Ultrasound System
Service Manual
3 Installation
